Manitowoc S User Manual

Section 2 Installation Instructions
Part Number 80-1480-3 2-5

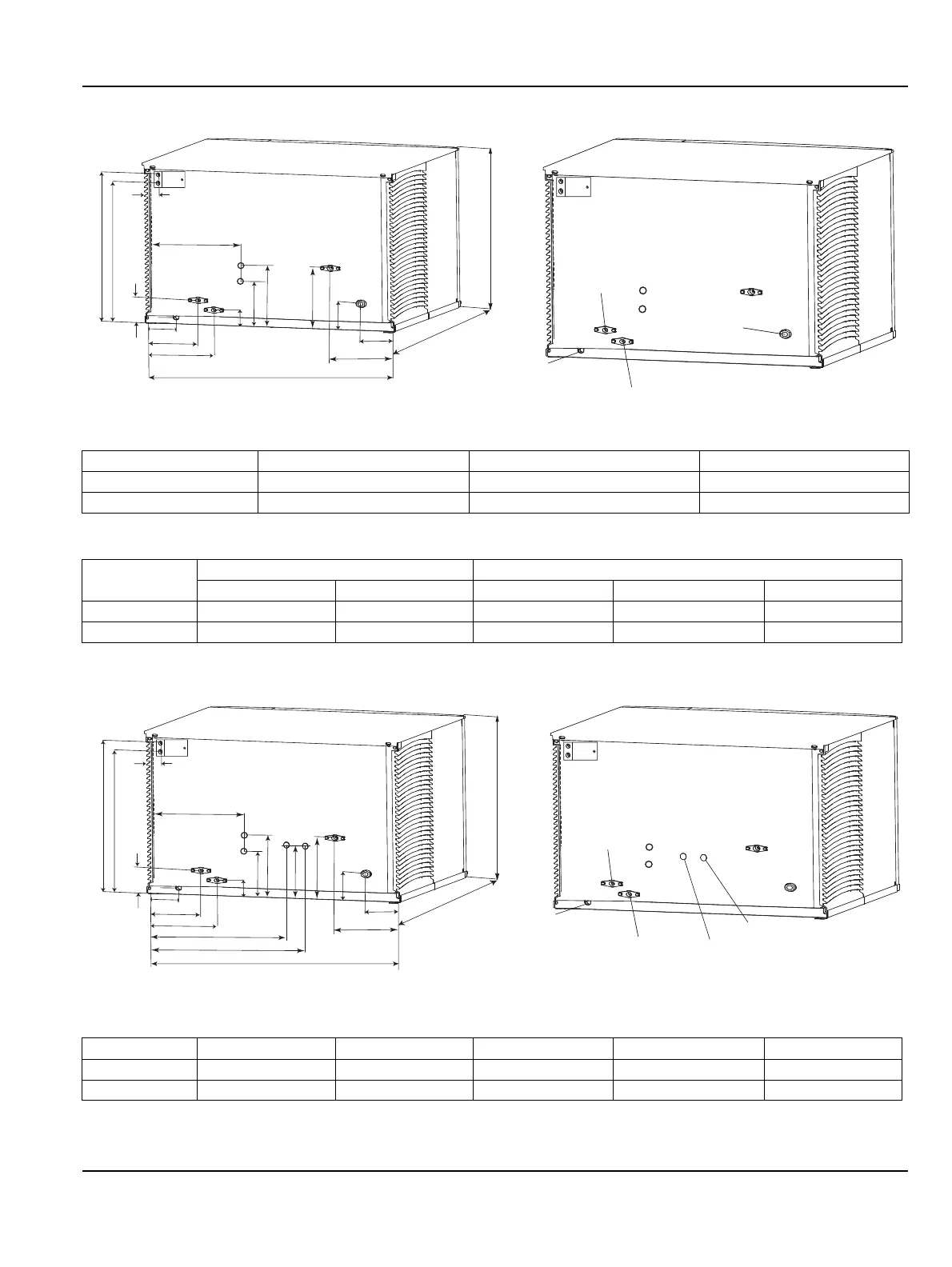

S1400 / S1800 AIR AND WATER-COOLED ICE MACHINES
Width, Depth, and Height Dimensions
Electrical and AuCS Dimensions
S1400 / S1800 REMOTE ICE MACHINES
2.50" (6.35cm)
H
D
W
11.0" (27.9cm)
10.25" (26.0cm)
2.0" (5.1cm)
5.75" (14.6cm)
4.0"
(10.2cm)
A
B
3.0" (7.6cm)
3.75" (9.5cm)
11.0" (27.9cm)
7.8" (19.8cm)
1.1" (2.8cm)
C
E
F
ELECTRICAL
CONDENSER WATER
OUTLET 1/2"FPT
(Water-Cooled Only)
DRAIN 1/2"NPTF
CONDENSER WATER
INLET 3/8"FPT
(Water-Cooled Only)
AUXILLARY BASE DRAIN
1/2"CPVC SOCKET
WATER INLET
3/8"FPT
AuCS
Connections
Ice Machine Dimension W Dimension D Dimension H
S1400 48 in. (121.9 cm) 24.5 in. (62.2 cm) 29.5 in (74.9 cm)
S1800 48 in. (121.9 cm) 24.5 in. (62.2 cm) 29.5 in (74.9 cm)
Ice Machine
Electrical AuCS
Dimension A Dimension B Dimension C Dimension E Dimension F
S1400 22.75 in (57.8 cm) 22.25 in (56.5 cm) 14.0 in (35.6 cm) 9.5 in (24.1 cm) 7.5 in (19.1 cm)
S1800 22.75 in (57.8 cm) 22.25 in (56.5 cm) 14.0 in (35.6 cm) 9.5 in (24.1 cm) 7.5 in (19.1 cm)
2.50" (6.35cm)
H
D
W
11.0" (27.9cm)
10.25" (26.0cm)
2.0" (5.1cm)
5.75" (14.6cm)
4.0"
(10.2cm)
A
B
3.0" (7.6cm)
3.75" (9.5cm)
11.0" (27.9cm)
7.8" (19.8cm)
1.1" (2.8cm)
C
E
F
8.0"
(20.3cm)
23.75" (60.3cm)
28.25" (71.8cm)
ELECTRICAL
CONDENSER WATER
OUTLET 1/2"FPT
(Water-Cooled Only)
DRAIN 1/2"NPTF
CONDENSER WATER
INLET 3/8"FPT
(Water-Cooled Only)
AUXILLARY BASE DRAIN
1/2"CPVC SOCKET
WATER INLET
3/8"FPT
AuCS
Connections
REFRIGERANT
LIQUID LINE
REFRIGERANT
DISCHARGE LINE
Ice Machine Dimension A Dimension B Dimension W Dimension D Dimension H
S1400 22.75 in (57.8 cm) 22.25 in (56.5 cm) 48 in. (121.9 cm) 24.5 in. (62.2 cm) 29.5 in (74.9 cm)
S1800 22.75 in (57.8 cm) 22.25 in (56.5 cm) 48 in. (121.9 cm) 24.5 in. (62.2 cm) 29.5 in (74.9 cm)
