Manitowoc S - Ice Storage bin Dimensions; 30 Inch (76 CM) Ice Storage Bins; 22 Inch (56 CM) Ice Storage Bins; Remote Condenser Dimensions

Installation Instructions Section 2
2-6 Part Number 80-1480-3

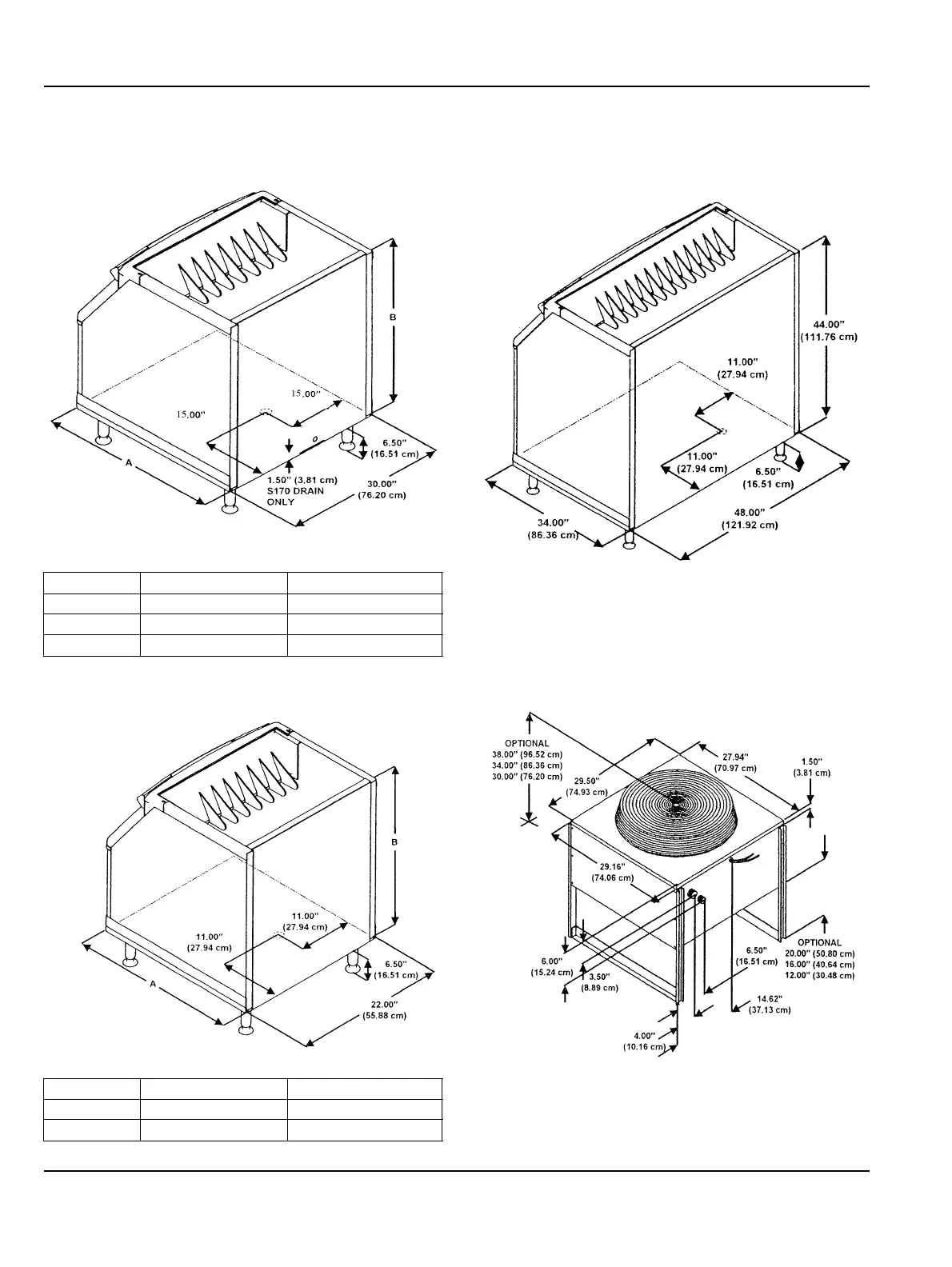

Ice Storage Bin Dimensions
30 INCH (76 CM) ICE STORAGE BINS
22 INCH (56 CM) ICE STORAGE BINS
48 INCH (130 CM) ICE STORAGE BINS
Remote Condenser Dimensions
JC0495/JC0895/JC1395
Bin Model Dimension A Dimension B
B170 29.5 in (74.9 cm) 19.1 in (48.5 cm)
B420 34.0 in (86.3 cm) 32.0 in (81.3 cm)
B570 34.0 in (86.3 cm) 44.0 in (111.7 cm)
Bin Model Dimension A Dimension B
B320 34.0 in (86.3 cm) 32.0 in (81.3 cm)
B420 34.0 in (86.3 cm) 44.0 in (111.7 cm)
SV1609
SV1614
SV1297
B970
SV1297
