SAFETY INFORMATION CD5520/YB5520 OPERATOR MANUAL
2-12 Published 07-06-2017, Control # 406-03

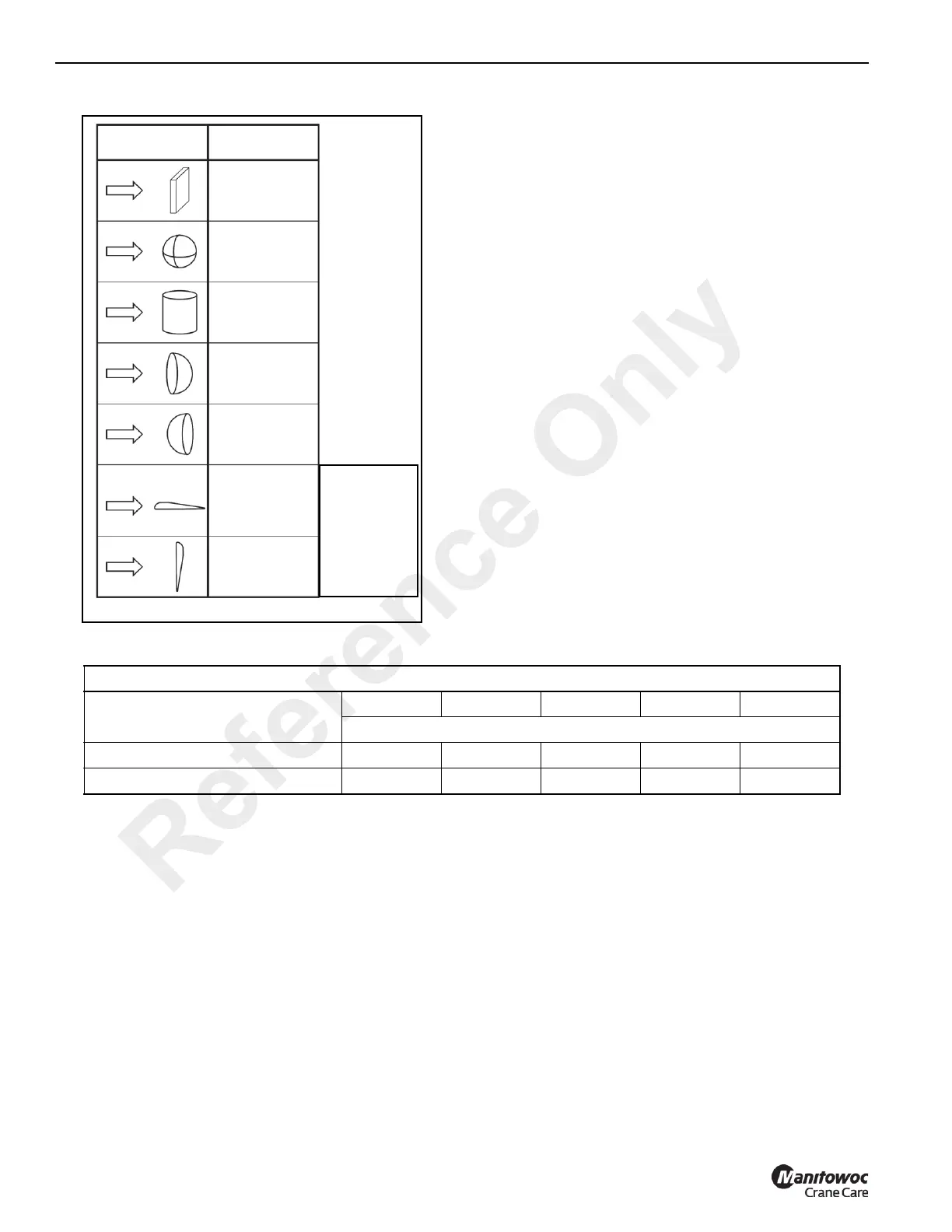

Table 2-2 Wind Drag Coefficient
Maximum Permissible Wind Speed
If the wind resistant area of the load Awr
(load)
is greater than
the allowable wind resistant area Awr
(allow)
, the ratio can be
used to determine a permissible wind speed V(z) for the load
using Table 2-3.
Table 2-3 Awr Ratio and Permissible Wind Speed V(z)-Non-metric
8384-2
Shape
Cd
1.1 to 2.0
0.3 to 0.4
0.6 to 1.0
0.8 to 1.2
0.2 to 0.3
0.05 to 0.1
Approximately 1.6
Turbine Blade or
Complete Rotor
Note: Permissible and rated wind speeds in this table are the 3-second gust wind speeds at boom tip height.
Ratio:
1.2 1.4 1.6 1.8 2
Maximum Permissible Wind Speed (mph)
For Rated Capacity at 30 mph 27.4 25.4 23.7 22.4 21.2
For Allowable Capacity at 45 mph 41.1 38.0 35.6 33.5 31.8
Reference Only
