Operation Section 3
Componet Removal
TOP COVER
For easiest access to the evaporator compartment, the top
cover can be removed.
1. Remove two screws on the rear of the ice machine.
2. Slide top cover back to disengage the three pins from
the front panel.
BIN DOOR
Allows access to the storage bin.
1. Remove top cover.
2. Slide door up until rear pins align with slot in door tracks.
3. Lift rear door pins out and slide door up until front door
pins align with slot.
4. Lift door out of door track

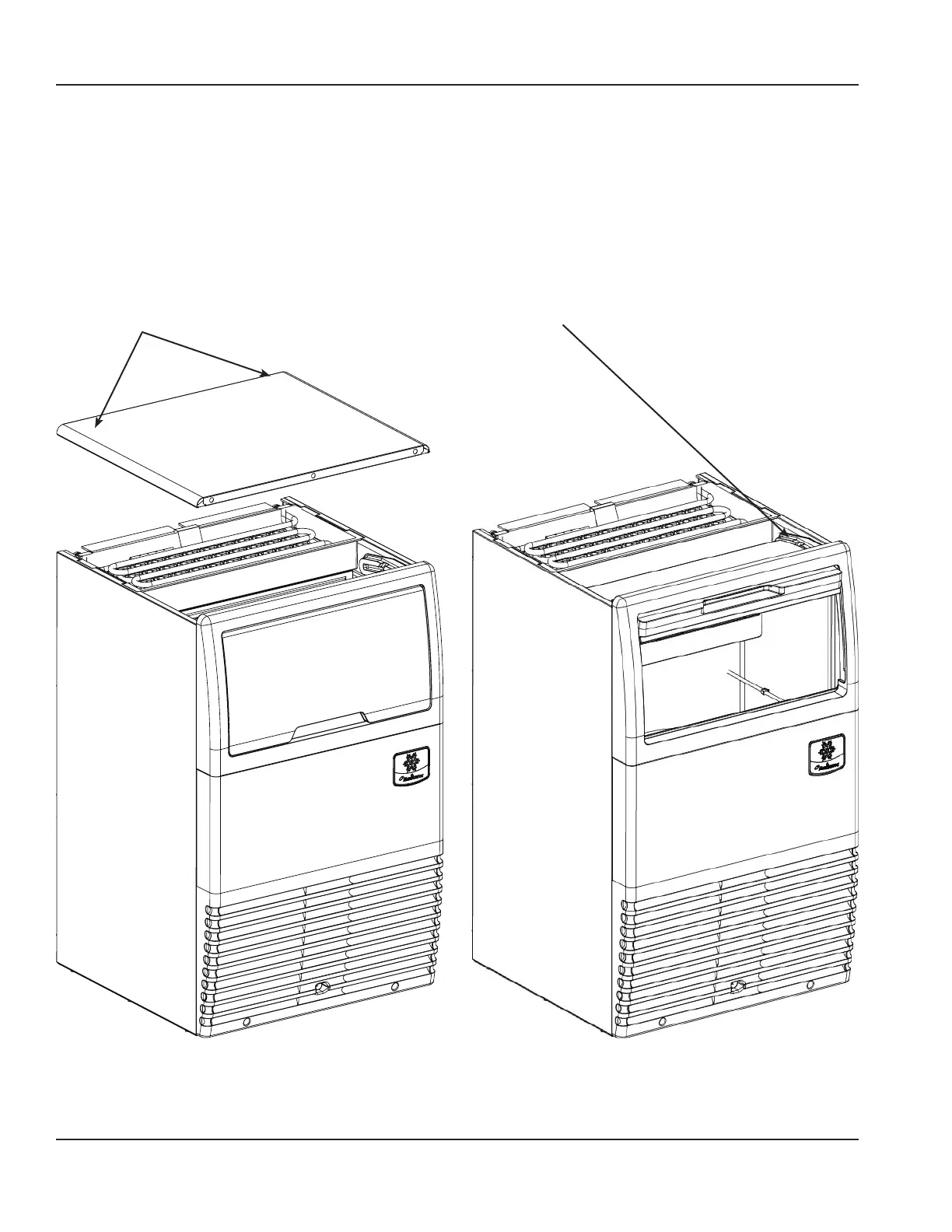

Align Door Pins With Track Slots
Then Lift Door Out of Track
Remove Two Screws-Slide
Cove Back To Remove
To Next Page
