14

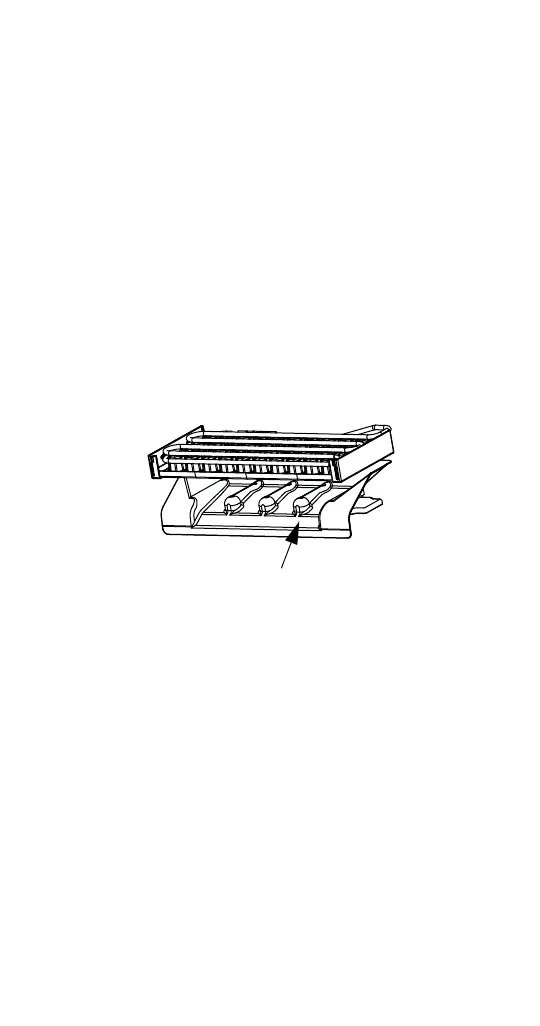

Ice Chute
The ice chute is positioned over the spray nozzles and
allows the ice to easily fall into the bin. It must be firmly
positioned over the Spray Bar Assembly, with the front
edge inside the water trough or the spray nozzles will
not be aligned with the spray holes, and spray water
will fall into bin.
1. Grab protruding spray holes on one end and lift
up.
2. Pivot ice chute and remove.
3. To re-install ice chute, grasp protruding spray
holes and position over Spray Bar Assembly.
Make sure rear supports are over Spray Bar
Assembly, and front edge is inside of water trough
To Next Page
