Sump Drain Overflow Tube

The sump drain overflow tube is located in the

evaporator water sump.

1. Remove shutters and ice chute.

2. Lift spray bar or disconnect and remove for

easiest access.

3. Pull up on over flow tube to remove.

To replace plug, insert in hole, and push with force to

make a tight seal

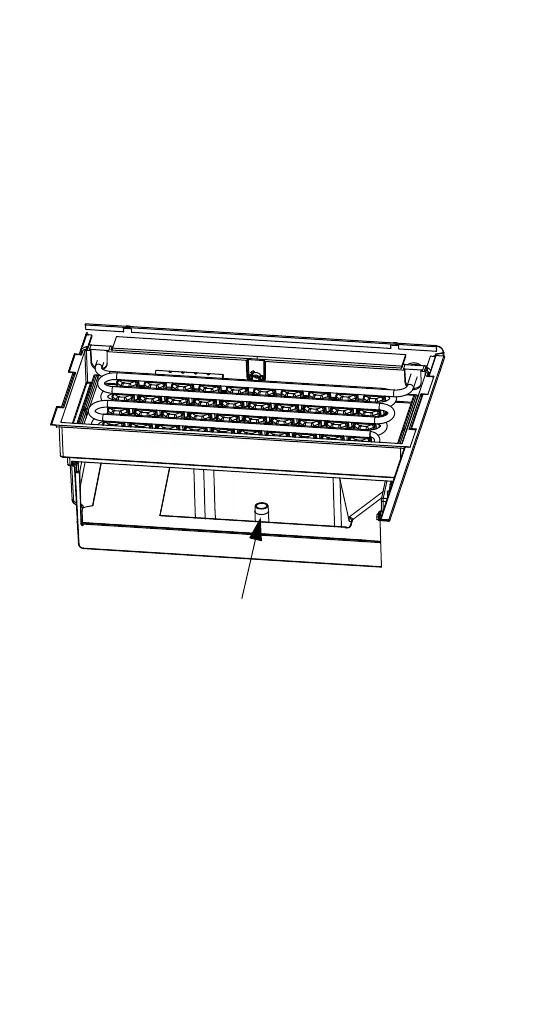

Overflow Tube
