Manitowoc UG065A Technician's Handbook

–122–
UG30/UG50 WATER-COOLED
TRANS.
FUSE
L1
(18)BRN
(12)BRN
(17)RED
(14)PRPL
WATER INLET
HOT GAS
SOLENOID
WATER PUMP
(16)ORG
L2 (N)
(23)
BLU
(24)
BLU
RELAY/
COMPRESSOR
(22)
BLU
(21)
BLU
(13)BLU
(19)BRN

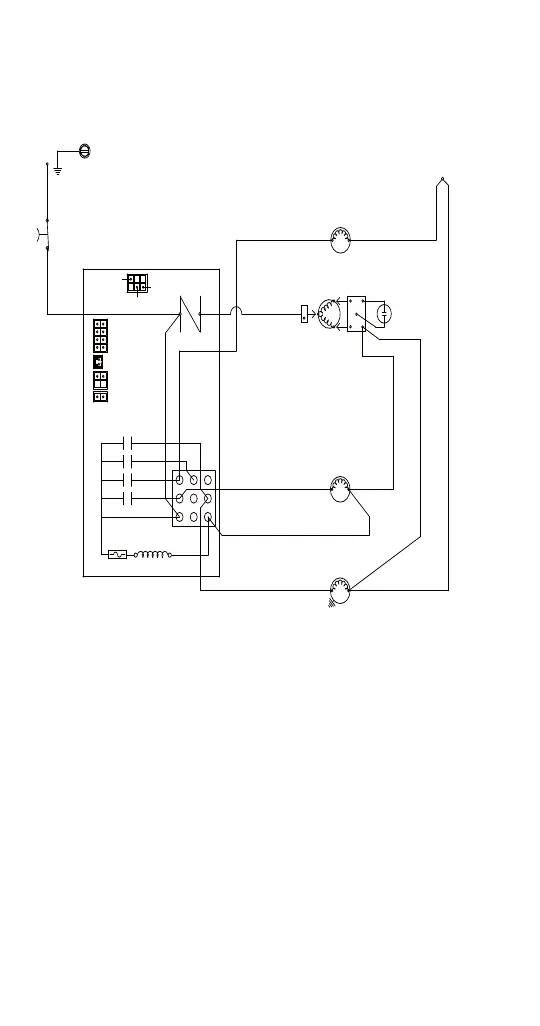

UG30/50W SERIES MACHINES - WIRING DIAGRAM
SELF-CONTAINED 1 PHASE
CAUTION: DISCONNECT POWER BEFORE WORKING
ON ELECTRICAL CIRCUITRY.
DIAGRAM SHOWN DURING FREEZE CYCLE
SEE SERIAL PLATE
FOR VOLTAGE
OVERLOAD
PROTECTOR
COMPRESSOR
START
CAPACITOR
START
RELAY
BIN FULL
QUID LINE
MODEL
ATER LEVEL
MODE SWITCH
CLEAN
ON
OFF
(26)
BRN
H.P. CUTOUT
(WATER COOLED ONLY)

Manitowoc UG065A Specifications

General

Brand	Manitowoc
Model	UG065A
Category	Ice Maker
Language	English
