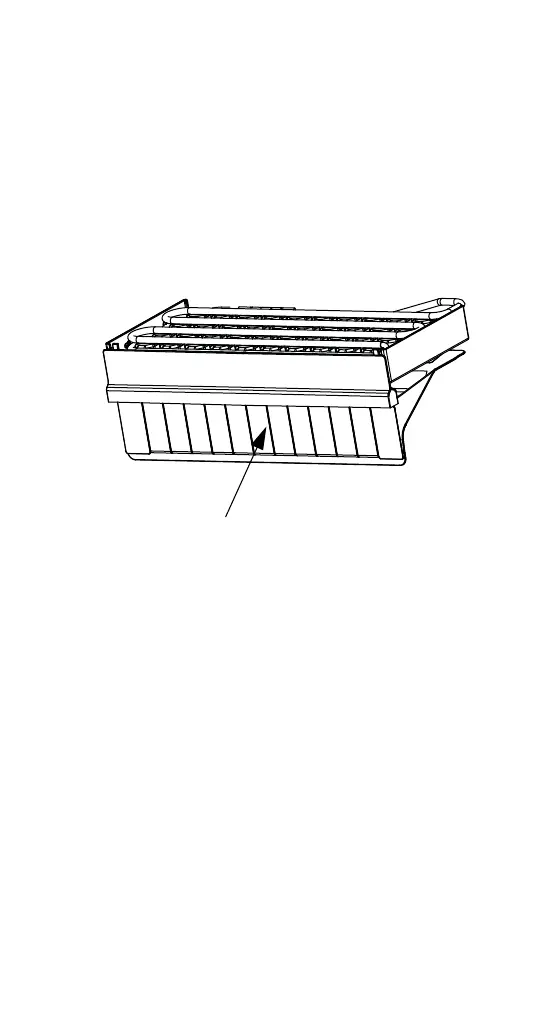

Water Curtain

The water curtain is designed to keep the spraying

water from escaping the evaporator compartment.

Removal of the bin door is not required, but enhances

access.

1. Grasp the ice curtain and lift up.

2. To re-install into ice machine, pivot the water

curtain and pull down into position. Make sure

tabs are secure in grooves.

Water Curtain
