Mantis 7234 User Manual

11Contact us at www.mantis.com

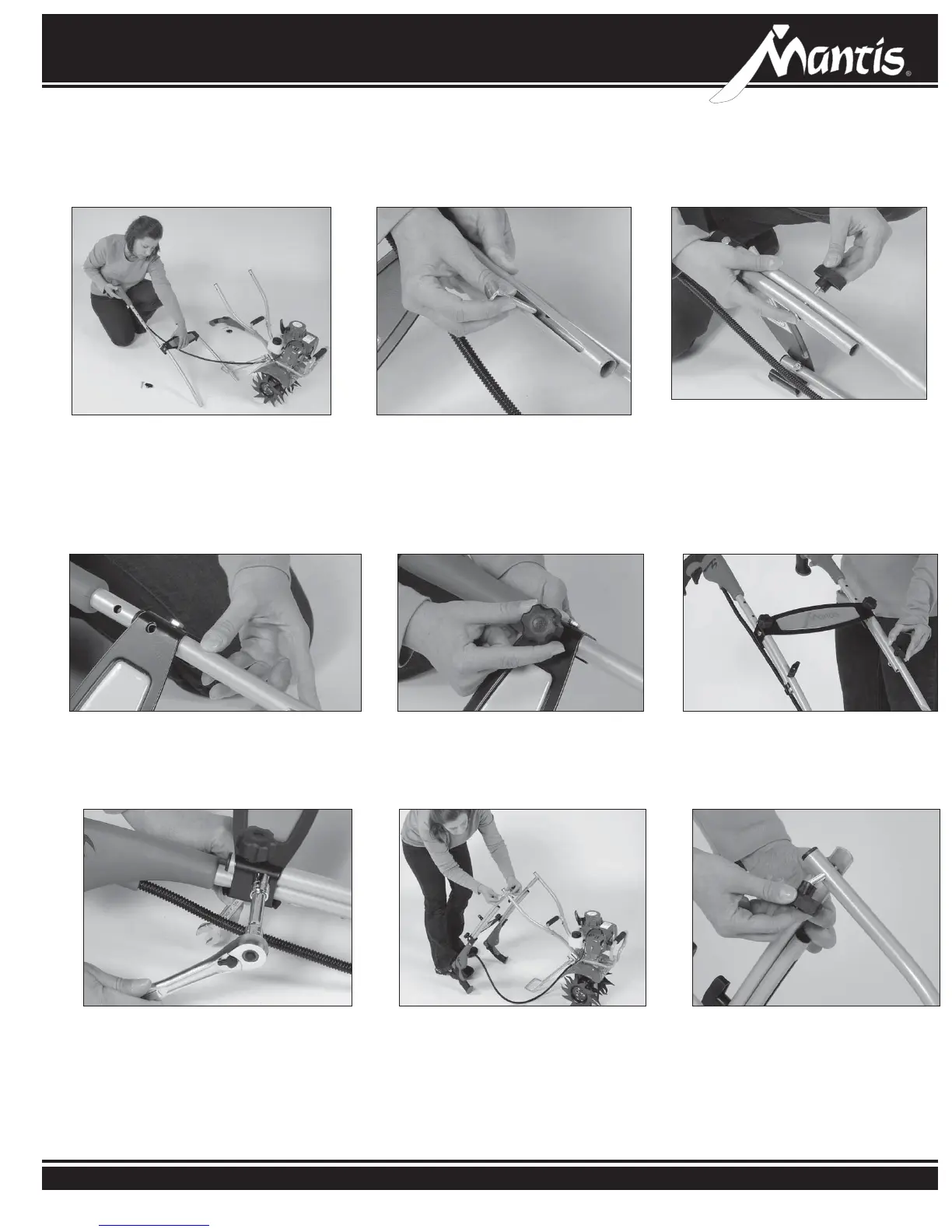

Assembly
• Take the Right Upper Handle, the
one with the throttle, and slide it
between the Middle Handle and the
lower fl ange of the Brace.
• Insert a curved head bolt into the
slot at the bottom of the Upper
Handle so that it comes out the
top of the Middle Handle.
• Thread a 2-pronged knob onto
the bolt two full turns while leaving
it loose.
• Repeat for left side.
UPPER HANDLE ASSEMBLY (CONTINUED)
456
• Line up the top holes of the Upper
Handles with the holes on the top of
the Brace so the handles are in the
lowest position.
• Insert the round knob into the
Brace and tighten.
• Now fully tighten the lower
2-prong knobs
789
• With a 7/16 in. wrench and socket,
tighten the nuts and bolts that hold
the Brace onto the handles
• Insert the carriage bolts into the
bottom holes of the Upper Handles
then through the top holes of the
Lower Handles.
• Loosely thread the other 2-pronged
knobs onto the carriage bolts
10 11 12

Mantis 7234 Specifications

General

Brand	Mantis
Model	7234
Category	Tiller
Language	English
