Mantis 7234 User Manual

9Contact us at www.mantis.com

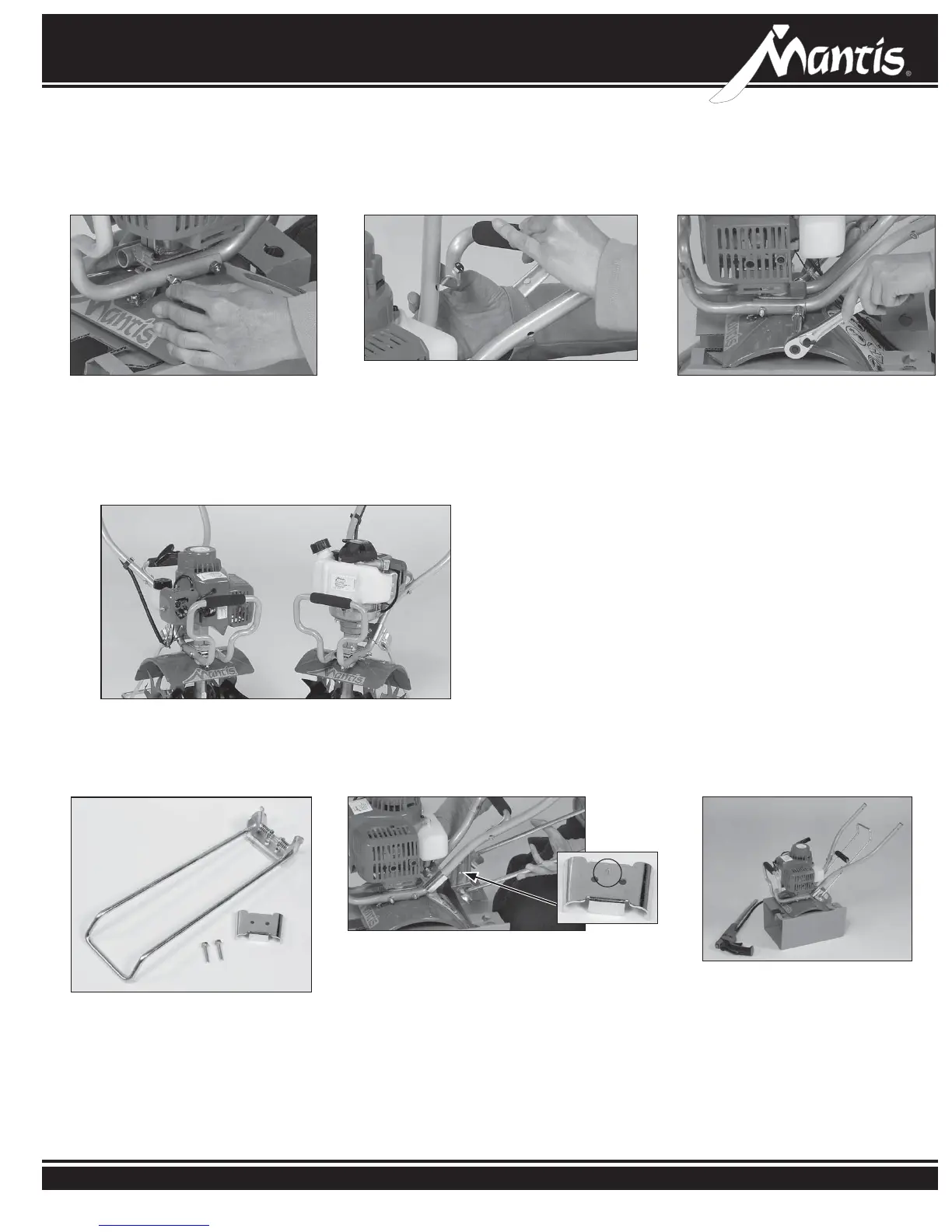

Assembly
2-Cycle Tiller 4-Cycle Tiller
LOWER HANDLE ASSEMBLY (CONTINUED)
• Slide loop handle through bolts
and over top lower left handle,
then take two lock nuts and
fasten them fi nger tight
• At this point, your Mantis tiller should look like
this when lower handle assembly is complete.
• Place the Carry Handle between the
lower handles and line up the holes
• Place two of the 1.125” bolts through
holes with hex head on inside of carry
handle and with two lock nuts fasten
them tight with wrench and socket.
• Position the kickstand brace
just above the bend of the lower
handles. The stamped arrow
should be pointing up
• Position the kickstand under the
lower handles, line up the holes
and thread the kickstand brace
bolts into the kickstand
•Tighten with the 3/8” wrench
• Use the 7 /16” wrenches and socket
to tighten the rest of the handle bolts.
• Your Mantis tiller will look
like this when lower handle
assembly and kickstand is
complete.
KICKSTAND ASSEMBLY
1
7
2
8
3
9
10
