Your MANTIS Tiller comes partially
assembled. You must install only the
handlebars, the carrying handle, and the
tines. This will take just a few minutes if
you follow the directions.
First, take all items out of the carton.
But do not remove the cardboard from
around the tiller’s base.

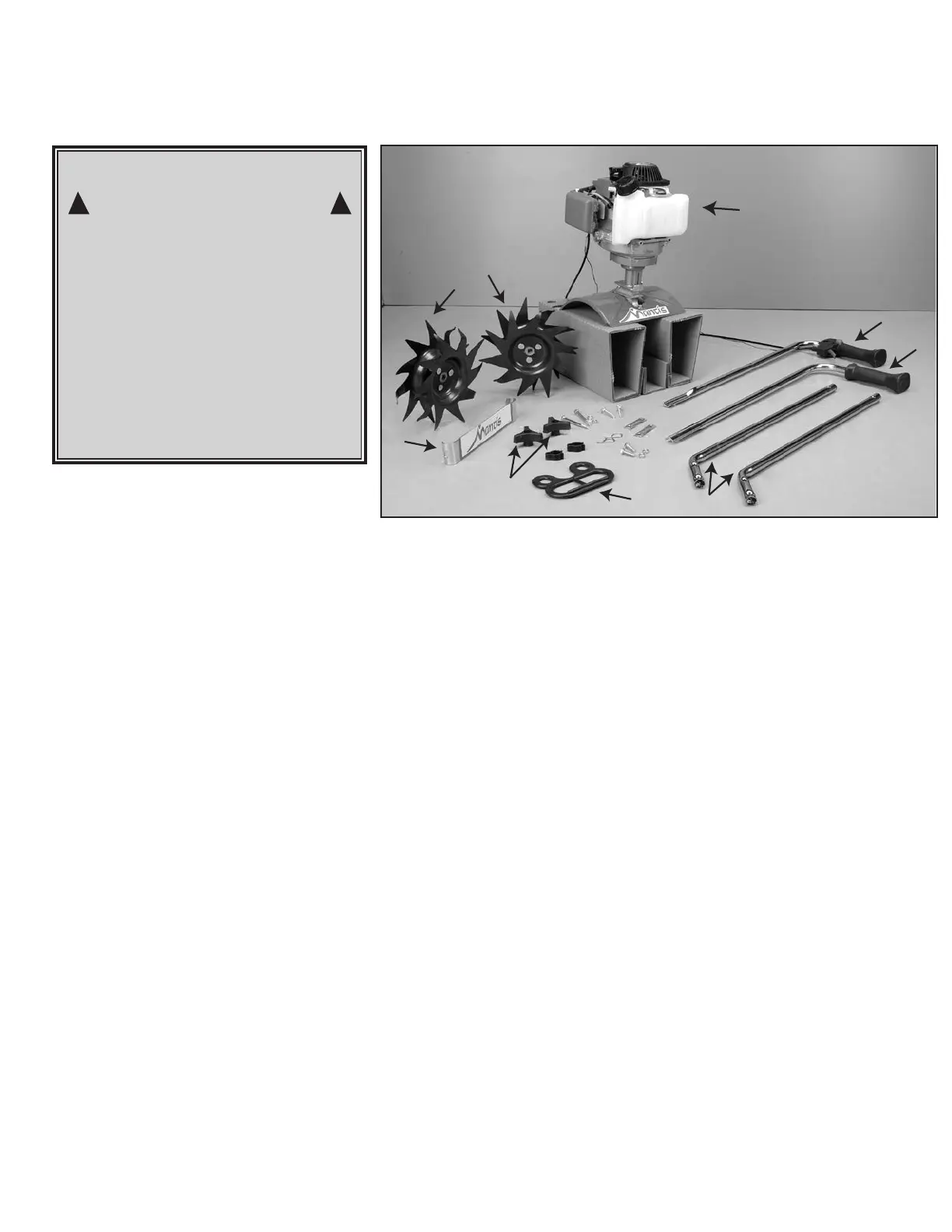

The list at the right, shows the parts that
come with your tiller. Check to make sure
you have them.
The bag of hardware is in the plastic bag
containing the Owner’s Manual and DVD.
To assemble your MANTIS Tiller,
you’ll need two 7/16” (11 mm) spanners/
wrenches. We suggest that you install all
nuts and bolts only “nger tight”
— that is,
one-half to one full turn — until you’ve
completed assembly. The nuts are self
locking, but you must use a spanner/
wrench to tighten them completely.
40
39
8
42
20,21,55
1
2
6
53
Assembly
WARNING•DANGER
IMPROPER ASSEMBLY OF THIS TILLER
CAN RESULT IN SERIOUS INJURY.
MAKE SURE TO FOLLOW ALL
INSTRUCTIONS CAREFULLY.
IF YOU HAVE ANY QUESTIONS
CONTACT, YOUR LOCAL AUTHORISED
MANTIS OFFICE.
Quantity Description *Key No.
1 Upper handle assembly 2
1 Upper handle throttle side assembly 1
2 Lower handles 6
1 Pair tiller/cultivator tines 39,40
1 Engine assembly (includes fender
guard & worm tear transmission) 20,21,55
1 Handle brace 8
1 Plastic carrying handle 42
1 Bag of hardware containing:
2 Cap screws 47
4 Lock nuts 48
2 Bolts 3” (7.62 cm) 49
2 Tine retaining pins 41
2 Handle clamps 51
1 Throttle clips 13
2 Bolts 52
2 Knobs 53
*These numbers are the same numbers shown on the parts layout
on page 17.
