27

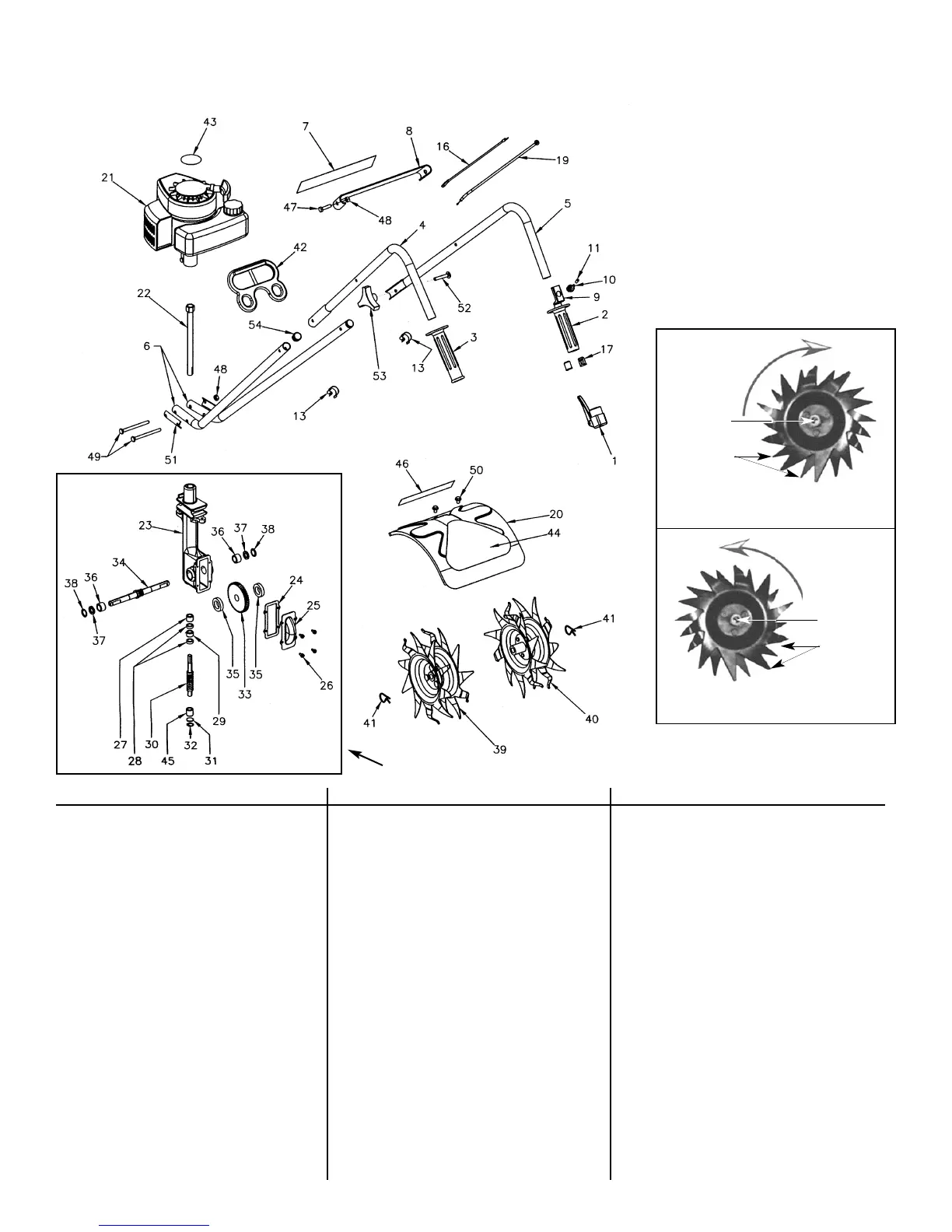

MANTIS TILLER ASSEMBLY
P/N 438LA
P/N 438RA
DIRECTION
Raised Hub
Teeth point in
a Clockwise
Direction
DIRECTION
Raised Hub
Teeth point in
a Counter
Clockwise
Direction
When you look at a Tine with the raised hub facing you
and the teeth are pointing in a CLOCKWISE rotation,
you have a LEFT HAND TINE.
When you look at Tine with the raised hub facing you
and the teeth are pointing in a COUNTER CLOCKWISE
rotation, you and a RIGHT HAND TINE.
55
ITEM NAME QTY MATERIAL
1 400215 1 Throttle Lever
2 400220 1 Grip-Thru
3 400214 1 Grip
4 400226 1 Upper Handle - Tube Left
4A 400236 1 Upper Handle Assembly
Includes Item #s 3 & 4.
5 400225 1 Upper Handle - Tube Right
5A 400235 1
Upper handle Throttle Side
Assembly. Includes Item #s
1,2,5,9,10,11,13,16,17,18,19.
6 400224 2 Lower Handle - Fold Down
7 488M 1 Label
8 148 1 Handle Brace
9 464 1 Switch Bracket
10 479 1 Switch
11 1612-70A 1 Switch Cover
13 478 2 Throttle Clip
16 4075 1 Connector Wire
17 400229 2 Cable Retainer
I
TEM NAME QTY MATERIAL
19 467-2 1 Throttle Cable Assy.
20 465 1 Fender Guard
21 400902
1
Engine Assembly
22 468 1 Drive Shaft
23 466 1 Worm Gear Housing
24 436 1 Gasket
25 437A 1 Housing Cover
26 651 4 Rd. Hd. Self Tapping Screw
27 423 1 Roller Bearing
28 425 2 Worm Bearing Race
29 424 1 Worm Thrust Bearing
30 422 1 Worm Shaft
31 426 1 Worm Disk
32 428 1 Retaining Ring
33 429 1 Worm Gear
34 431 1 Tine Shaft
35 430 2 Worm Gear Thrust Washer
36 432 2 Worm Gear Bearing
37 434 2 Bearing Seal
I
TEM NAME QTY MATERIAL
38 435 2 Bearing Seal Retainer
39 438LA 1 Tine Assembly (LT)
40 438RA 1 Tine Assembly (RT)
41 418-1 2 Tine Retaining Hair Pin
42 400218 1 Carrying Handle
43 487MA 1 Engine Label
44 4043 1 Tine Label
45 458 1 Roller Bearing
46 4058 1 Mantis Label
47 410 2 Cap Screw 1/4-20 x 1” LG.
48 972 4 Lock Nut 1/4 - 20
49 470 2 1/4 - 20 x 3” Bolt
50 140 2 Bolt 1/4-20 x 3/8” Lg.
51 377 2 Handle Clamp
52 400509 2 Bolt
53 400510 2 Knob
54 400230 2 Plug
55 400010 1 Transmission Assembly
*
* Also in Key #55
*
