Mantis FastStart User Manual

28
A

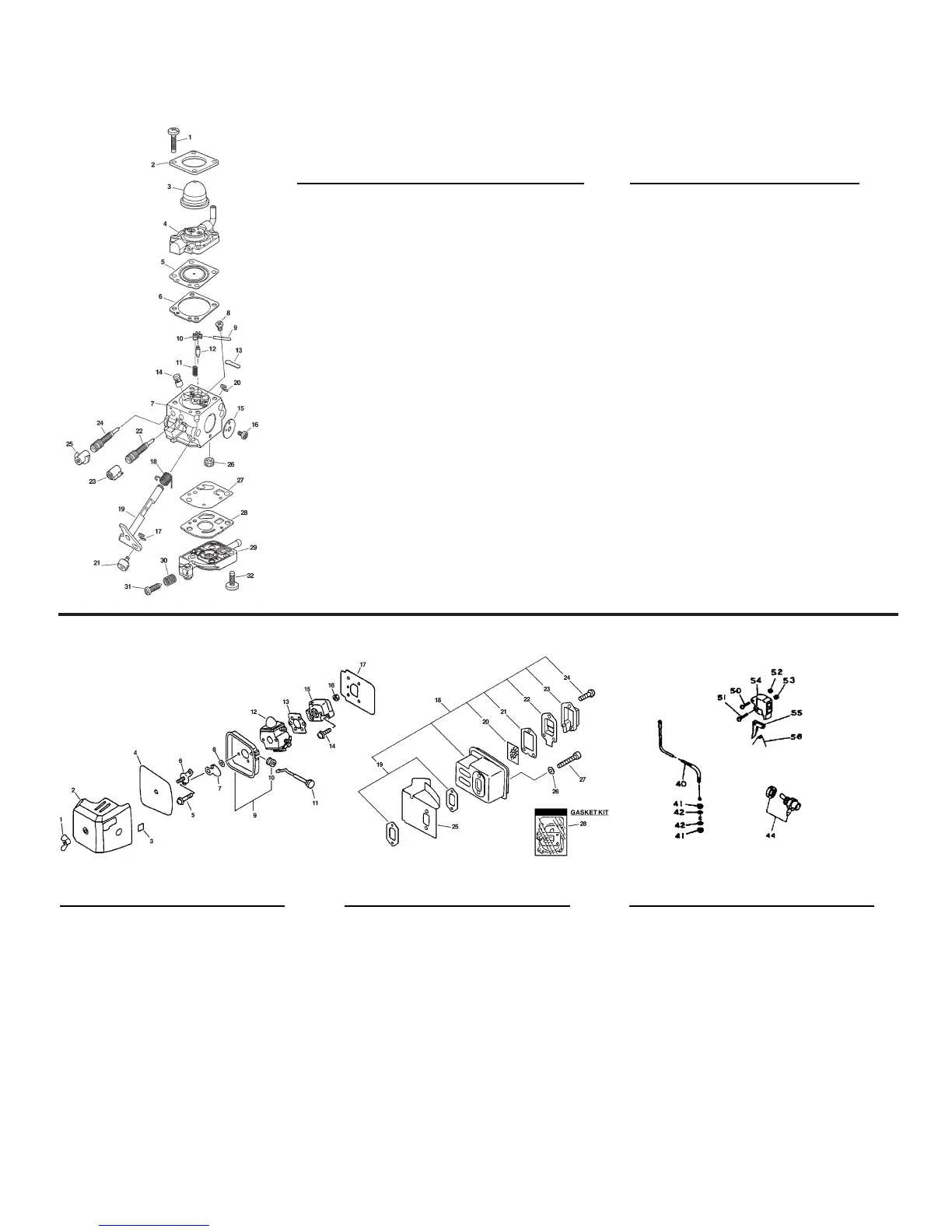

IR CLEANER, MUFFLER,& THROTTLE
SV-5CI ENGINE PARTS ASSEMBLIES
C
ARBURETOR
KEY PART QTY DESCRIPTION
NO. NO.
40 178001-11820 1 Throttle Cable
41 900502-00006 2 Nut, 6
42 900610-00006 2 Washer, Lock 6
44 163400-02160 1 Switch, On/Off
50 900220-05028 1 Screw, Shoulder 5 x 25
51 178110-05330 1 Screw 5 x 28
52 900500-00005 1 Locknut 5
53 900560-00005 1 Nut 5
54 178024-06130 1 Throttle Bracket
55 178010-06460 1 Throttle Trigger
56 178043-05230 1 Spring Throttle Return
KEY PART QTY DESCRIPTION
NO NO
1 90052800005 1 Wing Nut
2 13032611522 1 Cover, Air Cleaner
3 89012147530 1 Label, Choke*
4 13031004560 1 Filter, Air
5 90024205057 2 Screw 5X57
6 13041005360 1 Bracket, Air Cleaner
7 17851504560 1 Shutter, Choke
8 17851600830 1 Spacer
9 13030104560 1 Case, Air Cleaner Includes Item 10
10 17881005230 1 Grommet
11 17851004560 1 Rod, Choke
12 12520013124 1 Carburetor -- C1U-K54A
13 V103000111 1 Gasket, Intake
14 90023805020 2 Screw 5X20*
15 13001742031 1 Insulator
16 90050000005 2 Nut 5
17 13001042032 1 Shield, Cylinder
KEY PART QTY DESCRIPTION
NO NO
12520013124 1 Carburetor C1U-K54A Includes
Items 1-32
1 12534405360 4 Screw
2 P005000620 1 Ring
3 12538108660 1 Pump, Purge
4 P005000600 1 Base, Purge
5AB1Diaphragm, Metering
6AB1Gasket, Metering Diaphragm
7------------------- 1 Body, Carburetor Not Available Separately
8 12533942030 1 Screw
9A 1Pin, Metering Lever
10 A 1 Lever, Metering
11 A1Spring, Metering Lever
12 A 1 Valve, Inlet Needle
13 A 1 Plug, Welch
14 12537613120 1 Nozzle, Main Check Valve
15 12531649030 1 Valve, Throttle
16 12531413930 1 Screw
KEY PART QTY DESCRIPTION
NO NO
17 12532715130 1 Clip
18 12531342030 1 Spring, Throttle Return
19 12531713310 1 Shaft, Throttle
20 12532713930 1 Clip
21 12537242030 1 Swivel
22 12531813120 1 Needle, Low Speed
23 12532909860 1 Cap, Limiter - Low Speed
24 12532013310 1 Needle, High Speed
25 12532939030 1 Cap, Limiter - High Speed
26 A 1 Strainer
27 A B 1 Diaphragm, Fuel Pump
28 A B 1 Gasket, Fuel Pump
29 12532412820 1 Cover, Pump
30 12533306960 1 Spring, Adjust Screw
31 12533406960 1 Screw, Idle Adjust
32 12531012820 2 Screw
A 12530013120 1 Repair Kit
B 12530313120 1 Gasket/Diaphragm Kit
KEY PART QTY DESCRIPTION
NO NO
18 14580011821 1 Muffler Asy Includes Items 19-24
19 V104000160 2 Gasket, Exhaust*
20 14586240630 1 Screen, Muffler
21 14586642031 1 Gasket, Exhaust*
22 14587642030 1 Guide, Exhaust - Inner
23 14586311520 1 Guide, Exhaust - Outer
24 90024204010 3 Screw 4X10
25 14587105360 1 Shield, Muffler
26 90060000005 2 Washer 5
27 90010505050 2 Bolt 5X50
*Also Included In Gasket Kit
28 P021004670 1 Gasket Kit
