Mantis FastStart User Manual

29

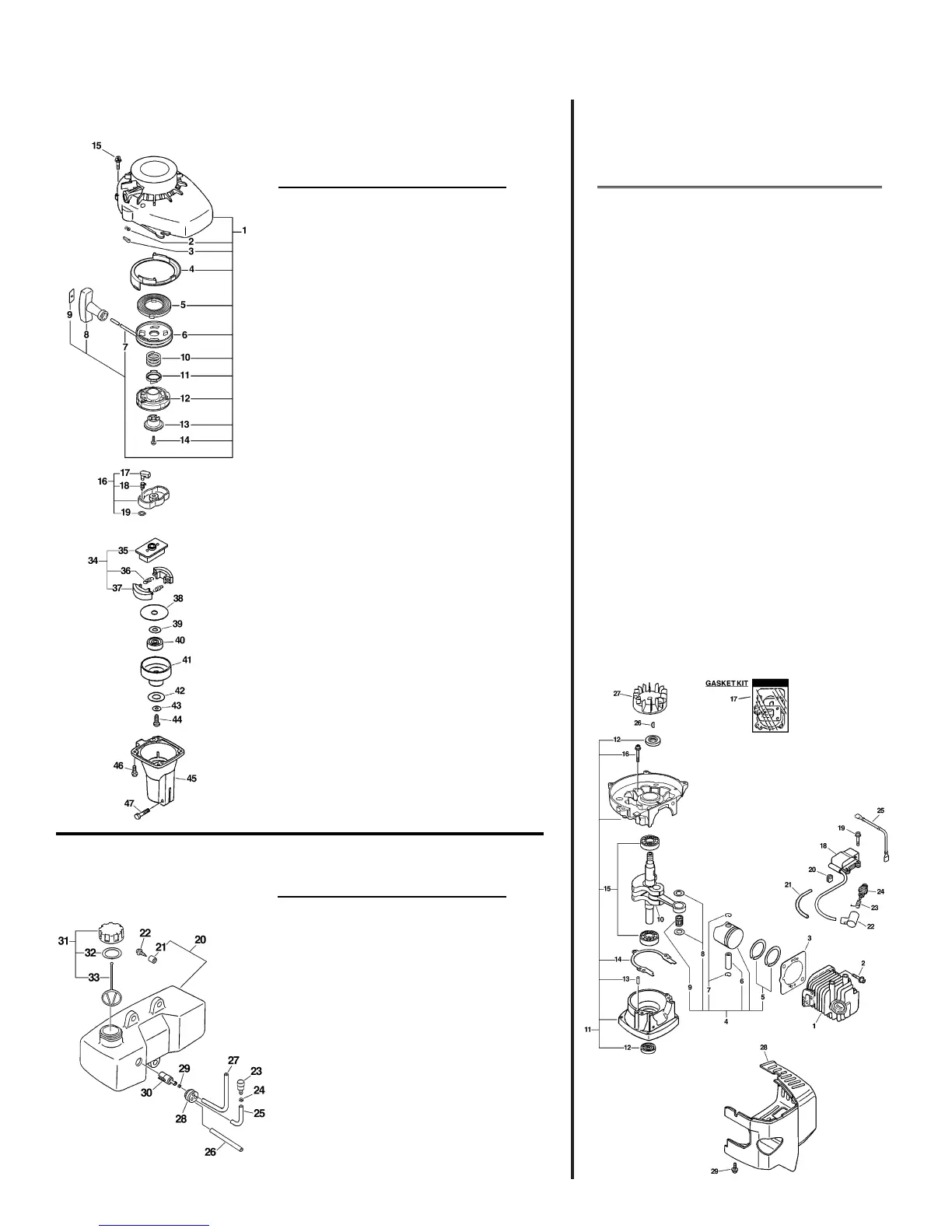

SV-5CI ENGINE PARTS
STARTER, PAWL CATCHER & CLUTCH
BLOCK
FUEL TANK
KEY PART QTY DESCRIPTION
NO NO
1 A130000420 1 Cylinder
2 90016205022 2 Bolt 5X22
3 V100000080 1 Gasket, Cylinder*
4 P021001101 1 Piston Kit Includes Items 5-9
5 A101000000 2 Ring, Piston
6 10001311520 1 Pin, Piston
7 10001504630 2 Circlip, Piston Pin
8 10001411520 2 Spacer, Piston Pin
9 V553000010 1 Bearing, Needle
10 A011000210 1 Crankshaft Asy
11 10020411521 1 Crankcase Kit Includes Items 12-16
12 10021242031 2 Oil Seal
13 10021503930 2 Dowel Pin
14 10024242030 1 Gasket, Crankcase*
15 9403536201 2 Bearing, Ball
16 90016205028 3 Bolt 5X28
17 P021004670 1 Gasket Kit
18 A411000130 1 Coil, Ignition
19 90016204020 2 Bolt 4X20
20 15611004920 1 Bushing
21 V475002200 1 Tube
22 15901201620 1 Cap, Spark Plug
23 15901103432 1 Terminal, Spark Plug
24 15901019830 1 Spark Plug -- Bpm-8Y
25 16202152830 1 Lead, Ignition
26 61032502730 1 Woodruff Key
27 A409000150 1 Flywheel
28 10150612821 1 Cover, Cylinder
29 90023804018 2 Screw 4X18
*Also Included In Gasket Kit
KEY PART QTY DESCRIPTION
NO NO
1 A051000640 1 StarterAsy Includes Items 2-14
2 P022004610 2 Spring, Pawl Return
3 P022004620 2 Pawl, Starter
4 P022006500 1 Case, Starter
5 P022004680 1 Spring, Rewind
6 P022004690 1 Drum, Starter
7 P022004600 1 Rope, Starter Use Bulk Rope
P/N 99944444000
3Mm(1/8In) X 800Mm(31-1/2In)
8 P022004990 1 Grip, Starter
9 17724611120 1 Clip, Rope
10 P022004660 1 Spring, Return
11 P022004670 1 Spring Pawl
12 P022004700 1 Spring Asy
13 P022004640 1 Plate, Cam
14 P022004630 1 Screw
15 90023804016 4 Screw 5X16
16 A052000150 1 Starter Pawl Asy Includes Items 17-19
17 P022004740 2 Pawl, Starter
18 P022006510 2 Spring, Pawl Return
19 P022002100 2 E-Ring
34 17500007531 1 Clutch Asy Includes Items 35-37
35 17501605020 1 Hub, Clutch
36 17501805130 2 Spring, Clutch
37 17500905131 2 Shoe, Clutch
38 17501904630 1 Plate, Clutch
39 90060000010 1 Washer 10
40 90080836000 1 Bearing, Ball
41 17501004633 1 Drum, Clutch
42 17504404630 1 Washer, Clutch
43 17501411520 1 Washer, Clutch
44 90023806012 1 Screw 6X12
45 61022311520 1 Case, Clutch
46 90023804014 4 Screw 4X14
47 13041611520 1 Bolt
KEY PART QTY DESCRIPTION
NO NO
20 13100511821 1 Tank, Fuel Includes Item 21
21 13104528230 3 Spacer
22 90027505015 3 Screw 5X15
23 A356000030 1 Valve, Check
24 13011100530 1 Clip
25 13131239130 1 Pipe, Vent - 3X5X70Mm
Optional Bulk Line 90014
26 13201049030 1 Pipe, Return - 3X6X50Mm
Optional Bulk Line 90017
27 13201011520 1 Pipe, Fuel - 3X5X210Mm
Optional Bulk Line 90014
28 13211546730 1 Grommet, Fuel
29 13201309820 1 Clip
30 13120507320 1 Filter, Fuel
31 13100409060 1 Fuel Tank Cap Asy
Includes Items 32-33
32 13101655830 1 Gasket, Fuel Tank Cap
33 13105156030 1 Connector, Fuel Tank Cap
