Marantz 2110 - Exploded Views and Parts List

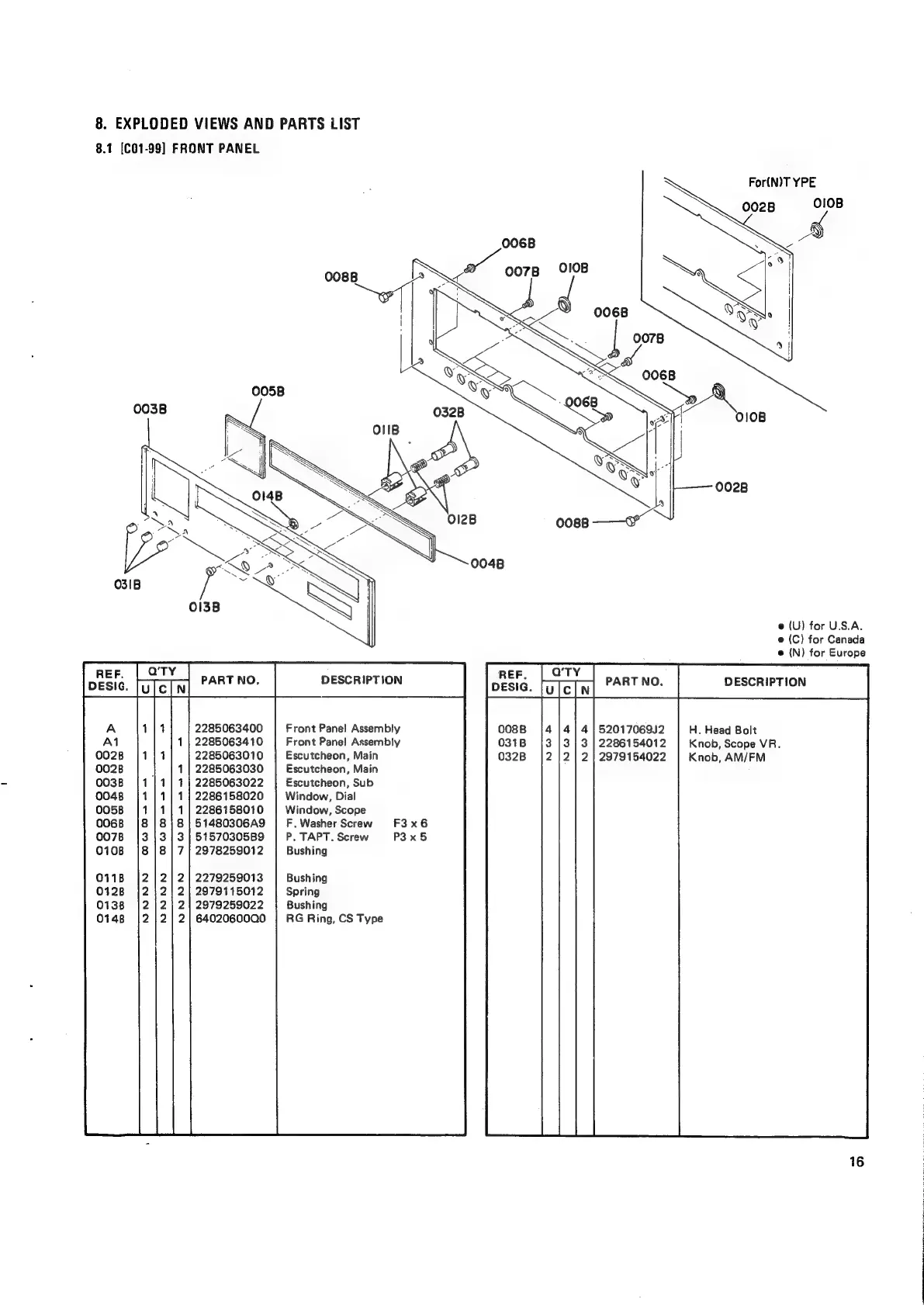

8. EXPLODED VIEWS AND PARTS LIST
8.1 [C01-99] FRONT PANEL
For(N)T YPE
0028 O10B
0068
a 0078. «CO0B
SO
0038
031B
e (U) for U.S.A.
e (C) for Canada
e (N) for Europe
DESCRIPTION
2285063400 Front Pane! Assembly 52017069J2 H. Head Bolt
2285063410 Front Panel Assembly 2286154012 Knob, Scope VR.
2285063010 Escutcheon, Main 2979154022 Knob, AM/FM
2285063030 Escutcheon, Main
2285063022 Escutcheon, Sub
2286158020 Window, Dial
2286158010 Window, Scope
51480306A9 F. Washer Screw F3 x6
51570305B9 P, TAPT. Screw P3 x 5
2978259012 Bushing
2279259013 Bushing
2979115012 Spring
2979259022 Bushing
64020600Q0 | RG Ring, CS Type
16
