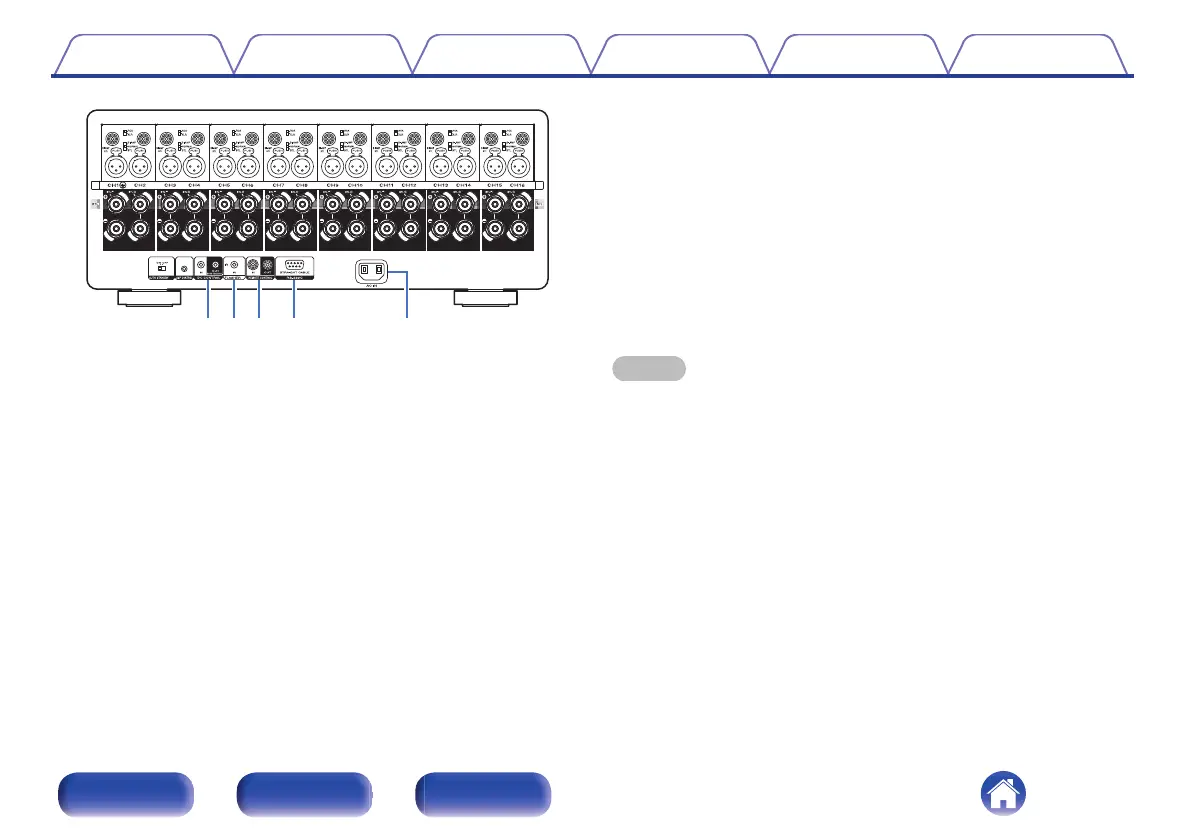

H
DC CONTROL jacks
Used to connect devices equipped with the trigger function.
(v p. 23)
I
FLASHER IN jack
Used to connect commercially available (sold separately) IR repeaters.
(v p. 22)
J
REMOTE CONTROL jacks
Used to connect a Marantz product that is equipped with REMOTE
CONTROL terminals. Use this when you want to control this unit with a
remote control. (v p. 21)
K
RS-232C connector
Used to connect home automation controller devices fitted with
RS-232C connectors. Consult the owner’s manual of the home
automation controller for more information about serial control of this
unit.
Perform the operation below beforehand.
A
Turn on the power of this unit.
B
Turn off the power of this unit from the external controller.
C
Check that the unit is in the standby mode.
L
AC inlet (AC IN)
Used to connect the power cord. (v p. 26)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
