Preamplifier
0
Connect one end of the cable to the input terminals of this unit and the
other end to the output terminals of the preamplifier (sold separately).
0
This unit has UNBALANCED RCA connectors and BALANCED XLR
connectors. Select the appropriate connectors for the preamplifier you
will use and change the setting of the RCA or XLR selector on this unit.
If the preamplifier has both types of connectors, either type can be
used.

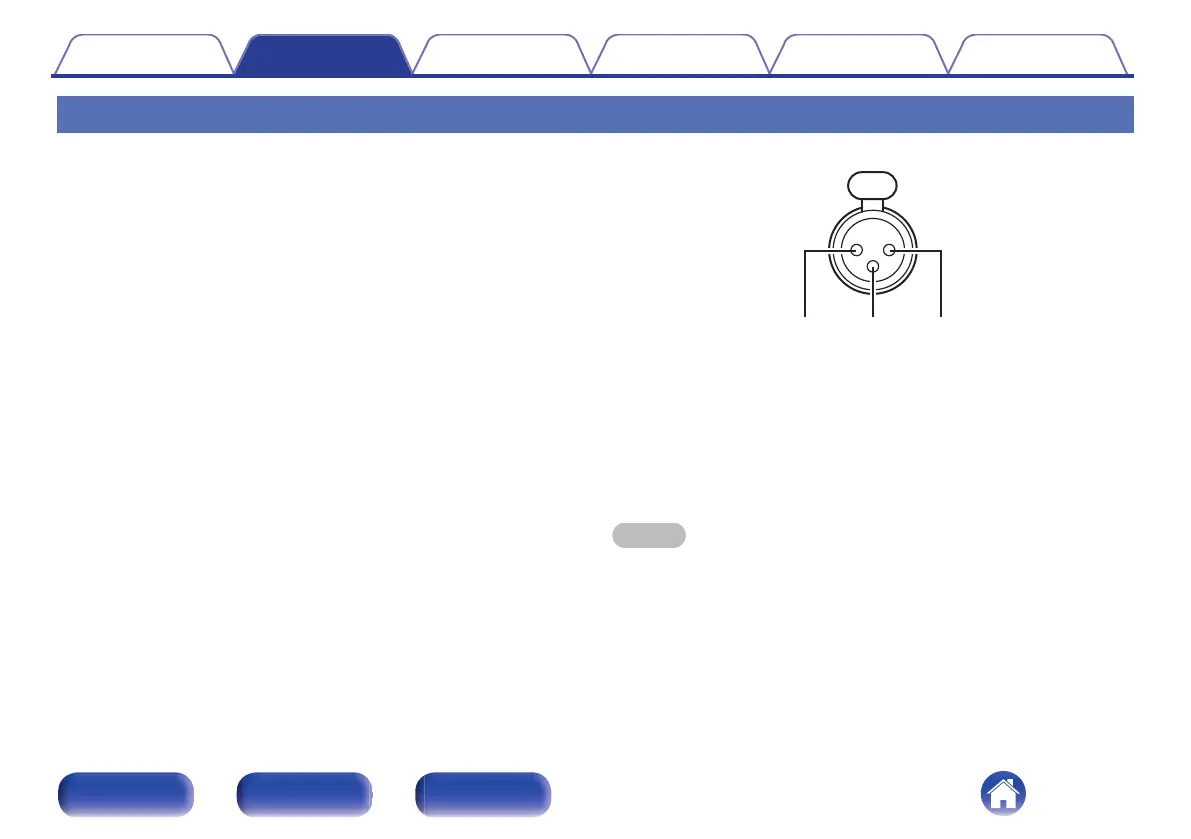

GXLR connector PIN arrangementH
A
GND (Ground)
B
HOT (Hot)
C
COLD (Cold)
The PIN arrangement in this unit uses the European method.
In the USA method, B is COLD, and C is HOT.
When connecting a device that utilizes the USA type of PIN arrangement,
replace the B and C plugs on one side of the balanced cable.
NOTE
0
Do not short the HOT and GND or COLD and GND for use.
0
Remove the power plug of this unit from the outlet before connecting the
preamplifier. Turn off the power of the device being connected as well.
