This unit is compatible with Dolby Atmos and DTS:X which offers an even wider
and deeper surround sensation.
0
The “Speaker Virtualizer” must be set to “On” for Dolby Atmos playback with 5.1-
channel speaker configurations or less. (v p. 177)
0
IMAX DTS:X / DTS:X can be selected regardless of the speaker configuration.
0
Auro-3D recommends adding FRONT HEIGHT and SURROUND HEIGHT
speakers to a 5.1 speaker configuration. Optionally, you may substitute REAR
HEIGHT, Dolby Atmos Enabled speakers instead of FRONT HEIGHT and
SURROUND HEIGHT speakers for Dolby Atmos, DTS:X and Auro-3D playback.
o

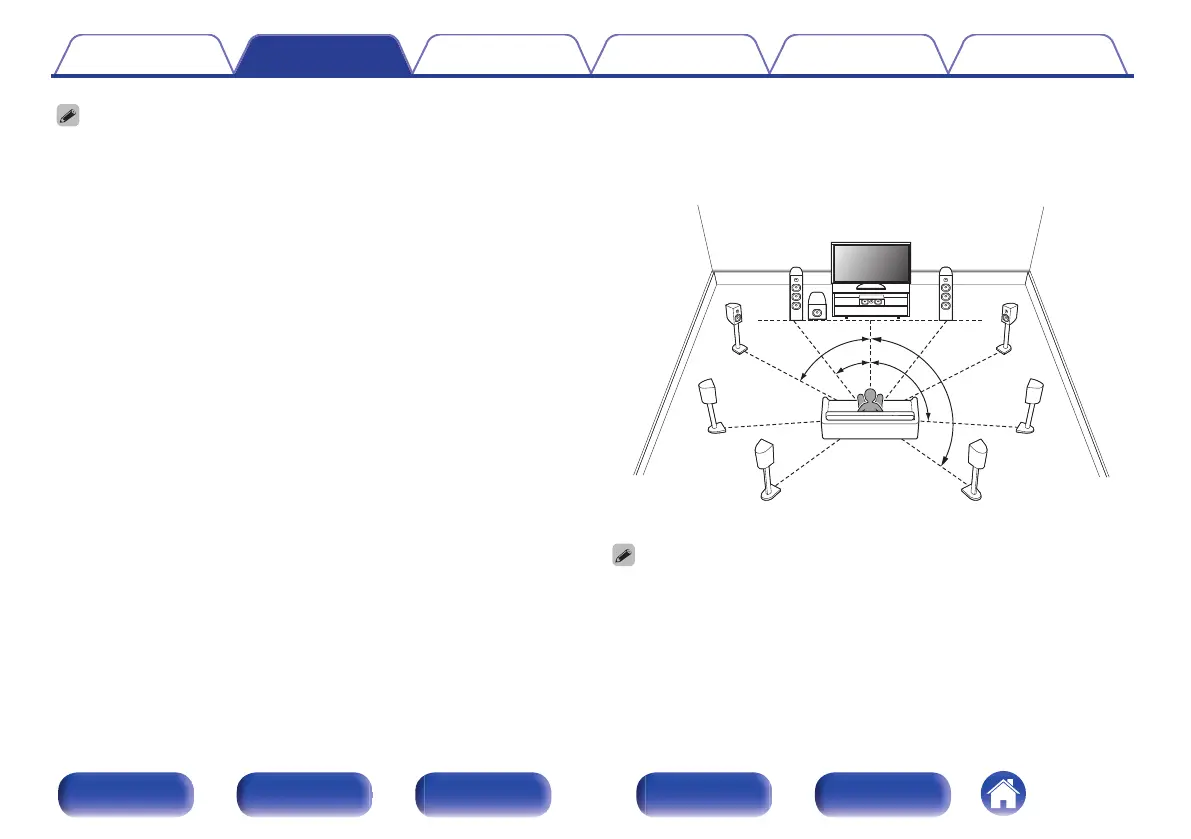

Recommended placement of the speakers
Floor speakers Layout
0
Use the following illustration as a guide for the installation location of
each floor speaker. You do not have to match them exactly.
FL
SW
C
SL
FR
SR
FWL
FWR
SBL
SBR
z3
z2
z1
z4
z
1 22° - 30°
z
2 50° - 70°
z
3 90° - 110°
z
4 135° - 150°
0
If you are not using the surround back speakers, the recommended angle of the
surround sound speakers (
z
3) is 120°.
0
When using a single surround back speaker, place it directly behind the listening
position.
