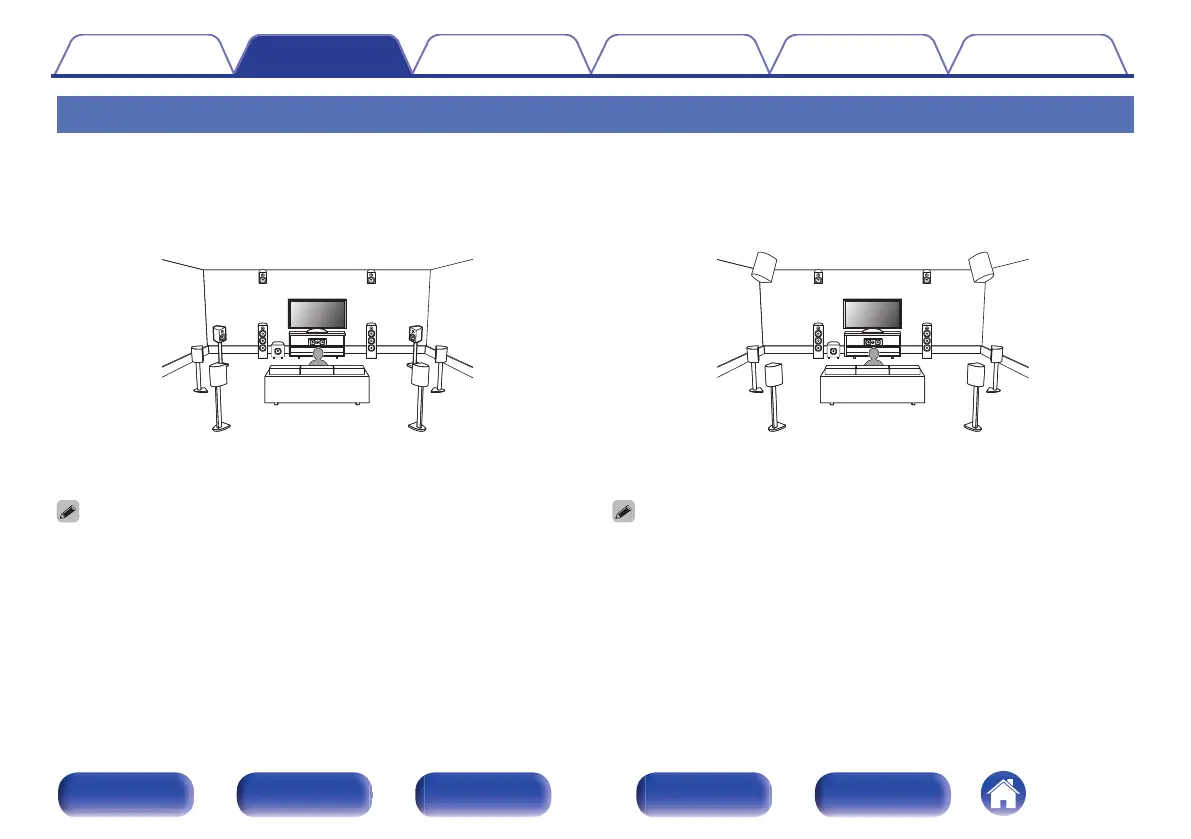

Connecting 11.1-channel speakers
o
Example layout when using surround back,
Front Wide and one set of height speakers
C
FL FR
SW
RSLS
FHL FHR
FWL FWR
SBL
SBR
For each speaker connection, refer to “Connecting a power
amp” (v p. 43).
0
Set “Floor” to “5ch & SB & FW” and “Height Sp” (or “Dolby Sp”) to “2ch” in the
menu when connecting in this configuration. (v p. 216)
0
You can change the Front Height Speakers to any Height/Ceiling/Dolby Atmos
Enabled speakers in the “Amp Assign” - “Layout” setting. (v p. 218)
o
Example layout when using surround back
and two sets of height speakers
C
FL FR
SBL
SBR
SW
SL SR
FHL FHR
RHL RHR
For each speaker connection, refer to “Connecting a power
amp” (v p. 43).
0
Set “Floor” to “5ch & SB” and “Height Sp” (or “Dolby Sp”) to “4ch” in the menu
when connecting in this configuration. (v p. 216)
0
You can change the Front Height Speakers and Rear Height Speakers to any
Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp Assign” - “Layout”
setting. (v p. 219)
