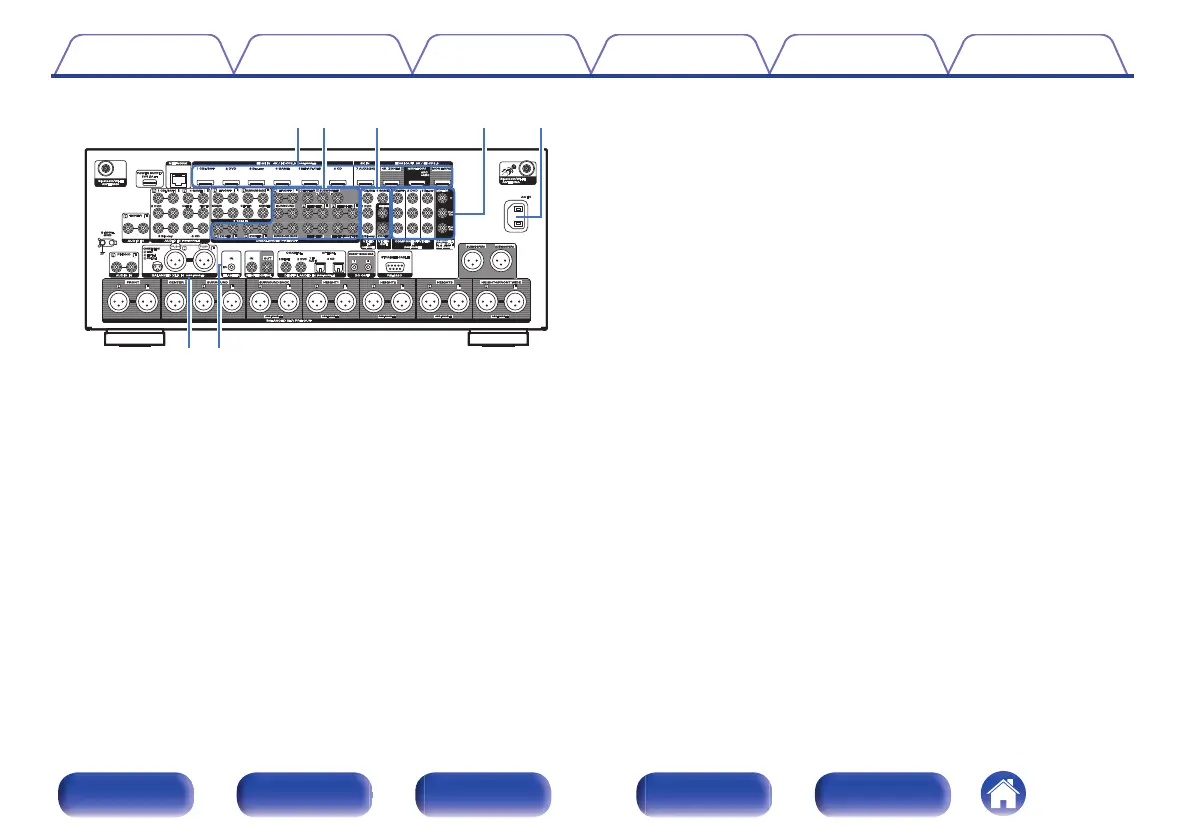

HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) / eARC (Enhanced
Audio Return Channel)” (v p. 81)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel)” (v p. 82)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 86)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 87)
0
“Connecting a player device compatible with the 8K” (v p. 88)
H
UNBALANCED RCA PRE OUT connectors
Used to connect a power amp with UNBALANCED RCA input
connectors. (v p. 47)
I
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 83)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 86)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 87)
J
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 83)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 86)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 87)
K
AC inlet (AC IN)
Used to connect the power cord. (v p. 97)
L
BALANCED XLR IN connectors
Used to connect devices equipped with BALANCED XLR output
connectors. (v p. 85)
M
FLASHER IN jack
Used when using a control BOX or other such control devices to control
this unit.
