Marantz CD-17 - Controls, Connections and Indicators

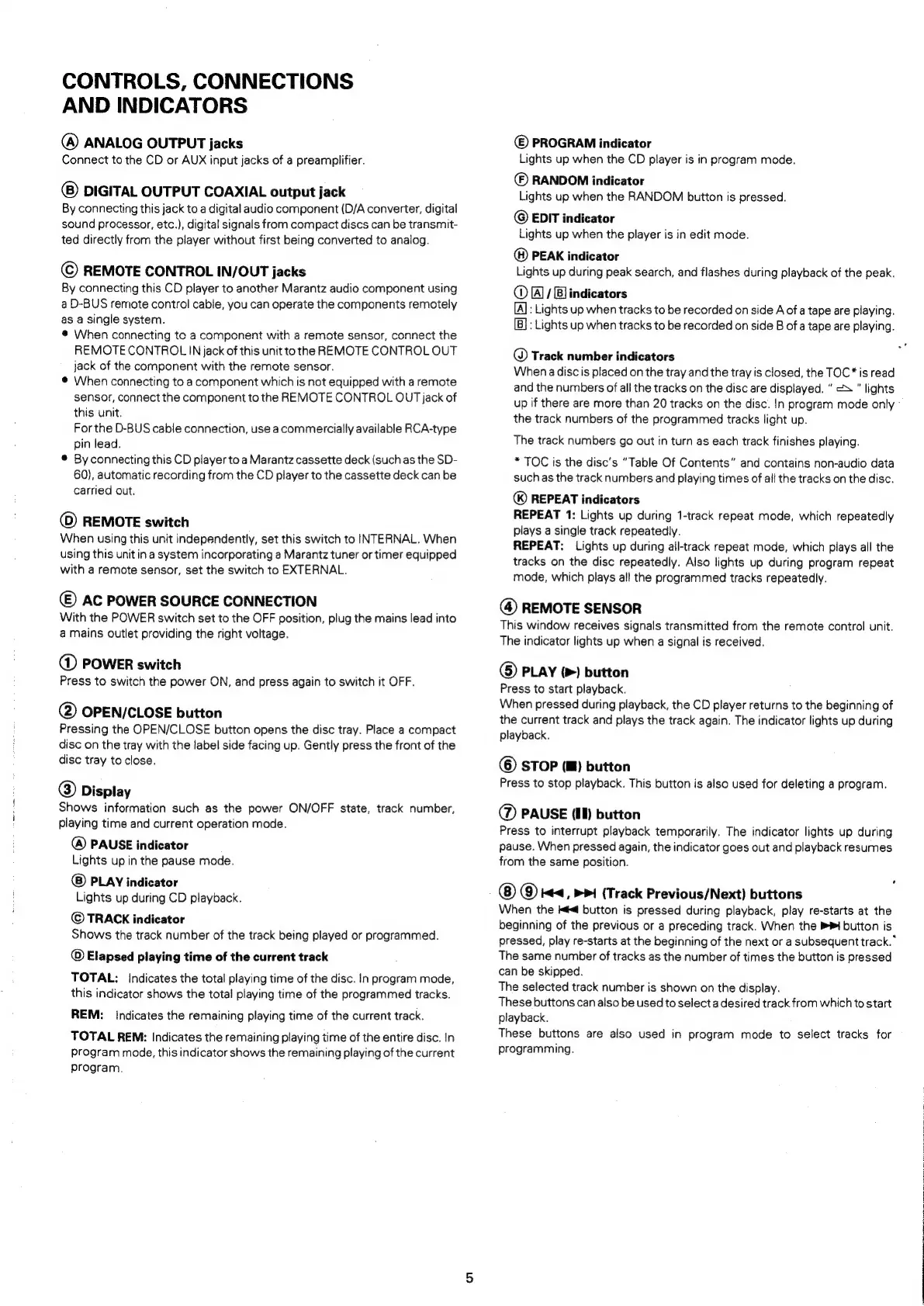

CONTROLS, CONNECTIONS
AND INDICATORS
(@) ANALOG OUTPUT jacks
Connect to the CD or AUX input jacks of a preamplifier.
DIGITAL OUTPUT COAXIAL output jack
By connecting this jack to a digital audio component (D/A converter, digital
sound processor, etc.), digital signals from compact discs can be transmit-
ted directly from the player without first being converted to analog.
© REMOTE CONTROL IN/OUT jacks
By connecting this CD player to another Marantz audio component using
a D-BUS remote control cable, you can operate the components remotely
as a single system.
® When connecting te a component with a remote sensor, connect the
REMOTE CONTROL IN jack of this unit to the REMOTE CONTROL OUT
jack of the component with the remote sensor.
When connecting to a component which is not equipped with a remote
sensor, connect the component to the REMOTE CONTROL OUT jack of
this unit.
For the D-BUS cable connection, use a commercially available RCA-type
pin lead.
® Byconnecting this CD player to a Marantz cassette deck (such as the SD-
60), automatic recording from the CD player to the cassette deck can be
carried out.
©) REMOTE switch
When using this unit independently, set this switch to INTERNAL. When
using this unit in a system incorporating a Marantz tuner or timer equipped
with a remote sensor, set the switch to EXTERNAL.
© AC POWER SOURCE CONNECTION
With the POWER switch set to the OFF position, plug the mains lead into
a mains outlet providing the right voltage.
@ POWER switch
Press to switch the power ON, and press again to switch it OFF.
@ OPEN/CLOSE button
Pressing the OPEN/CLOSE button opens the disc tray. Place a compact
disc on the tray with the label side facing up. Gently press the front of the
disc tray to close.
©) Display
Shows information such as the power ON/OFF state, track number,
playing time and current operation mode.
@) PAUSE indicator
Lights up in the pause mode.
PLAY indicator
Lights up during CD playback.
© TRACK indicator
Shows the track number of the track being played or programmed.
© Elapsed playing time of the current track
TOTAL: Indicates the total playing time of the disc. In program mode,
this indicator shows the total playing time of the programmed tracks.
REM: indicates the remaining playing time of the current track.
TOTAL REM: Indicates the remaining playing time of the entire disc. In
program mode, this indicator shows the remaining playing of the current
program.
© PROGRAM indicator
Lights up when the CD player is in program mode.
© RANDOM indicator
Lights up when the RANDOM button is pressed.
@© EDIT indicator
Lights up when the player is in edit mode.
@ PEAK indicator
Lights up during peak search, and flashes during playback of the peak.
@ [Al/ Blindicators
[A] : Lights up when tracks to be recorded on side A of a tape are playing.
: Lights up when tracks to be recorded on side B of a tape are playing.
@ Track number indicators
When adiscis placed on the tray and the tray is closed, the TOC* is read
and the numbers of all the tracks on the disc are displayed. “ cS " lights
up if there are more than 20 tracks on the disc. In program mode only -
the track numbers of the programmed tracks light up.
The track numbers go out in turn as each track finishes playing.
* TOC is the disc’s “Table Of Contents” and contains non-audio data
such as the track numbers and playing times of all the tracks on the disc.
® REPEAT indicators
REPEAT 1: Lights up during 1-track repeat mode, which repeatedly
plays a single track repeatedly.
REPEAT: Lights up during all-track repeat mode, which plays all the
tracks on the disc repeatedly. Also lights up during program repeat
mode, which plays all the programmed tracks repeatedly.
@ REMOTE SENSOR
This window receives signals transmitted from the remote control unit.
The indicator lights up when a signal is received.
© PLAY (>) button
Press to start playback.
When pressed during playback, the CD player returns to the beginning of
the current track and plays the track again. The indicator lights up during
playback.
@ STOP (@) button
Press to stop playback. This button is also used for deleting a program.
@ PAUSE (HI) button
Press to interrupt playback temporarily. The indicator lights up during
pause. When pressed again, the indicator goes out and playback resumes
from the same position.
® Kid, PP (Track Previous/Next) buttons
When the <4 button is pressed during playback, play re-starts at the
beginning of the previous or a preceding track. When the > button is
pressed, play re-starts at the beginning of the next or a subsequent track.”
The same number of tracks as the number of times the button is pressed
can be skipped.
The selected track number is shown on the display.
These buttons can also be used to select a desired track from which to start
playback.
These buttons are also used in program mode to select tracks for
programming.
