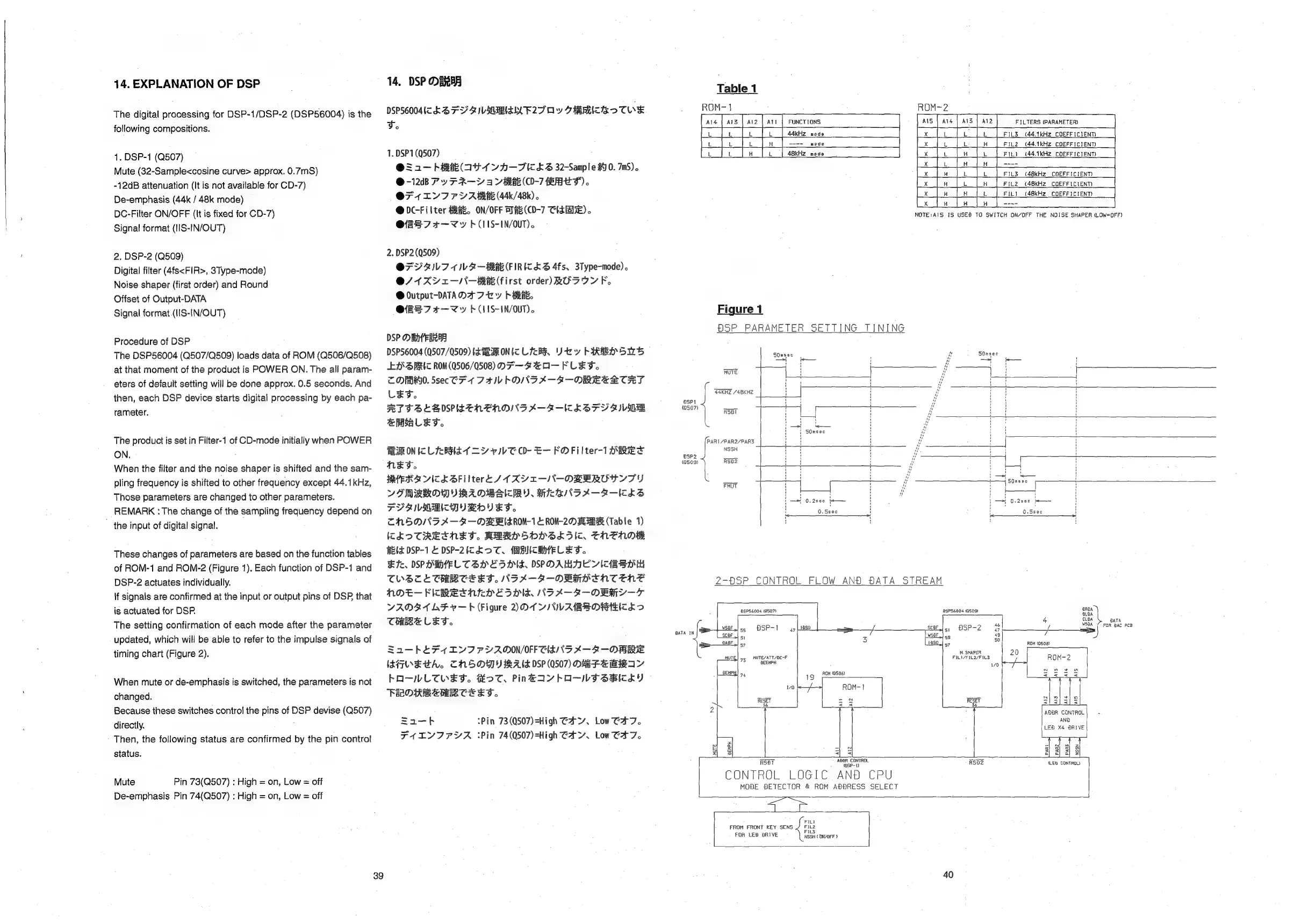

14. EXPLANATION OF DSP
The digital processing for DSP-1/DSP-2 (DSP56004) is the
following compositions.
1. DSP-1 (Q507)
Mute (32-Sample<cosine curve> approx. 0.7mS)
-12dB attenuation (It is not available for CD-7)
De-emphasis (44k / 48k mode)
DC-Filter ON/OFF (It is fixed for CD-7)
Signal format (IIS-IN/OUT)
2. DSP-2 (Q509)
Digital filter (4fs<FIR>, 3Type-mode)
Noise shaper (first order) and Round
Offset of Output-DATA
Signal format (HS-IN/OUT)
Procedure of DSP
The DSP56004 (Q507/Q509) loads data of ROM (Q506/Q508)
at that moment of the product is POWER ON. The all param-
eters of default setting will be done approx. 0.5 seconds. And
then, each DSP device starts digital processing by each pa-
rameter.
The product is set in Filter-1 of CD-mode initially wnen POWER
ON.
When the filter and the noise shaper is shifted and the sam-
pling frequency is shifted to other frequency except 44.1kHz,
Those parameters are changed to other parameters.
REMARK : The change of the sampling frequency depend on
~ the input of digital signal.
These changes of parameters are based on the function tables
of ROM-1 and ROM-2 (Figure 1). Each function of DSP-1 and
DSP-2 actuates individually.
If signals are confirmed at the input or output pins of DSP, that
is actuated for DSP.
The setting confirmation of each mode after the parameter
updated, which will be able to refer to the impulse signals of
timing chart (Figure 2).
When mute or de-emphasis is switched, the parameters is not
changed.
Because these switches control the pins of DSP devise (Q507)
directly. '
Then, the following status are confirmed by the pin control
status.
Mute Pin 73(Q507) : High = on, Low = off
De-emphasis Pin 74(Q507) : High = on, Low = off
