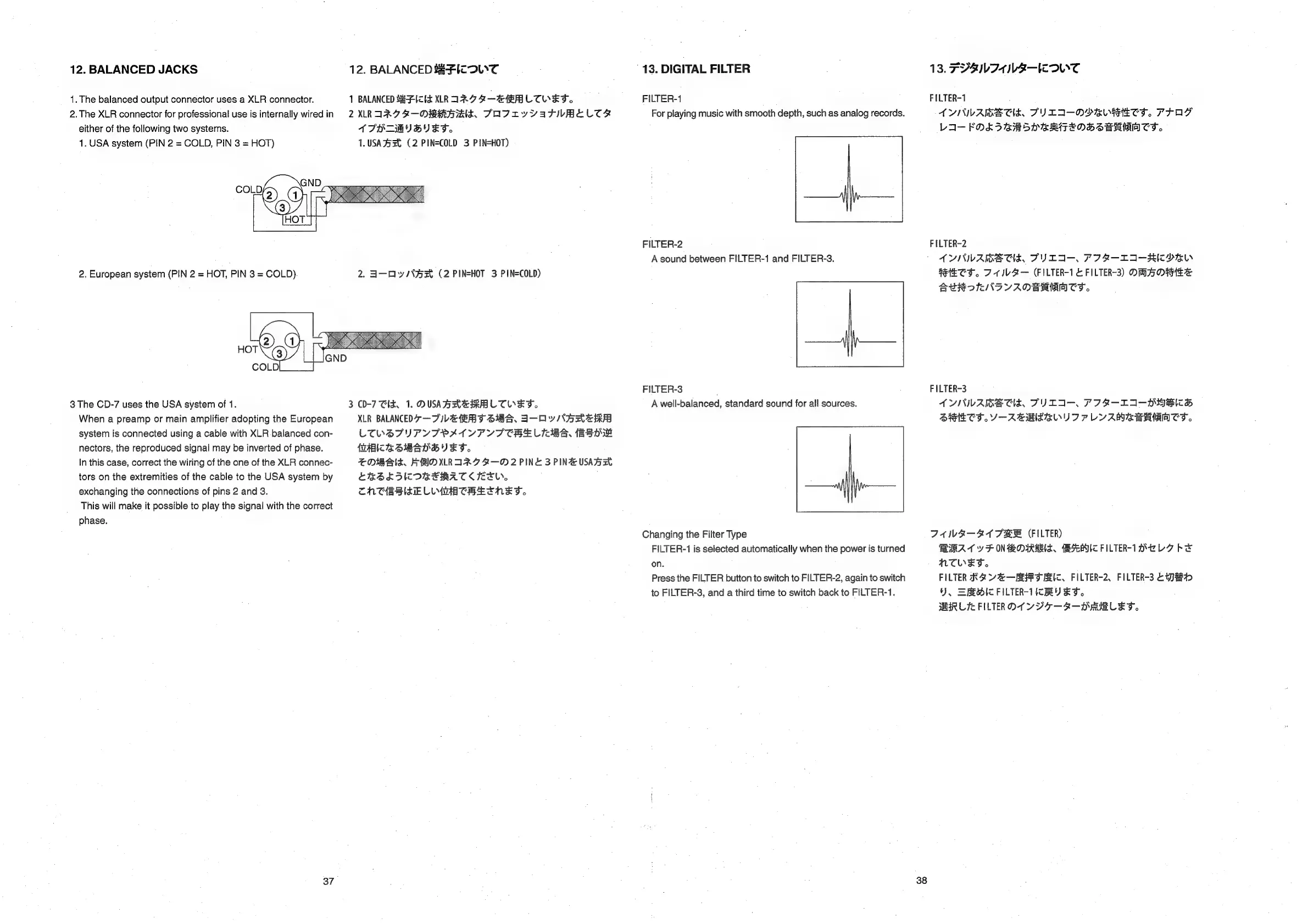

12. BALANCED JACKS
1. The balanced output connector uses.a XLR connector.
2. The XLR connector for professional use is internally wired in
either of the following two systems.
1. USA system (PIN 2 = COLD, PIN 3 = HOT)
12. BALANCED taFIZDULYT
1 BALANCED #Ftcle XLR IRD H—-EBBLTIES.
2 XLRIAGSZ—-OHBGAARS. FOIryvatiBeELTR
A TROBVSEVET.
1. USAF (2 PIN=COLD 3 PIN=HOT)
2. European system (PIN 2 = HOT, PIN 3 = COLD).
2, 3-Oys/NAZt (2 PIN-HOT 3 PIN=COLD)
3 The CD-7 uses the USA system of 1.
When a preamp or main amplifier adopting the European
system is connected using a cable with XLR balanced con-
nectors, the reproduced signal may be inverted of phase.
In this case, correct the wiring of the one of the XLR connec-
tors on the extremities of the cable to the USA system by
exchanging the connections of pins 2 and 3.
This will make it possible to play the signal with the correct
phase.
37
3 0-7 Sd, 1. DUSABAZRABLTIES.
XLR BALANCED 7 —TIVEERS S388. A—Oy NANERA
LTA PUP YIPLAVIVICBELEGA, 1250
MICE SMADSVIET.
ZOBSIK. HAOXLRAZRD 2—D 2 PINE 3 PINS USAA SH
EBDSESITORERA TC EE.
TH CESISIE LUMAR CBECHES.
13. DIGITAL FILTER
FILTER-1
For playing music with smooth depth, such as analog records.
FILTER-2
A sound between FILTER-1 and FILTER-3.
FILTER-3
A well-balanced, standard sound for all sources.
Changing the Filter Type
FILTER-1 is selected automatically when the power is turned
on.
Press the FILTER button to switch to FILTER-2, again to switch
to FILTER-3, and a third time to switch back to FILTER-1.
38
