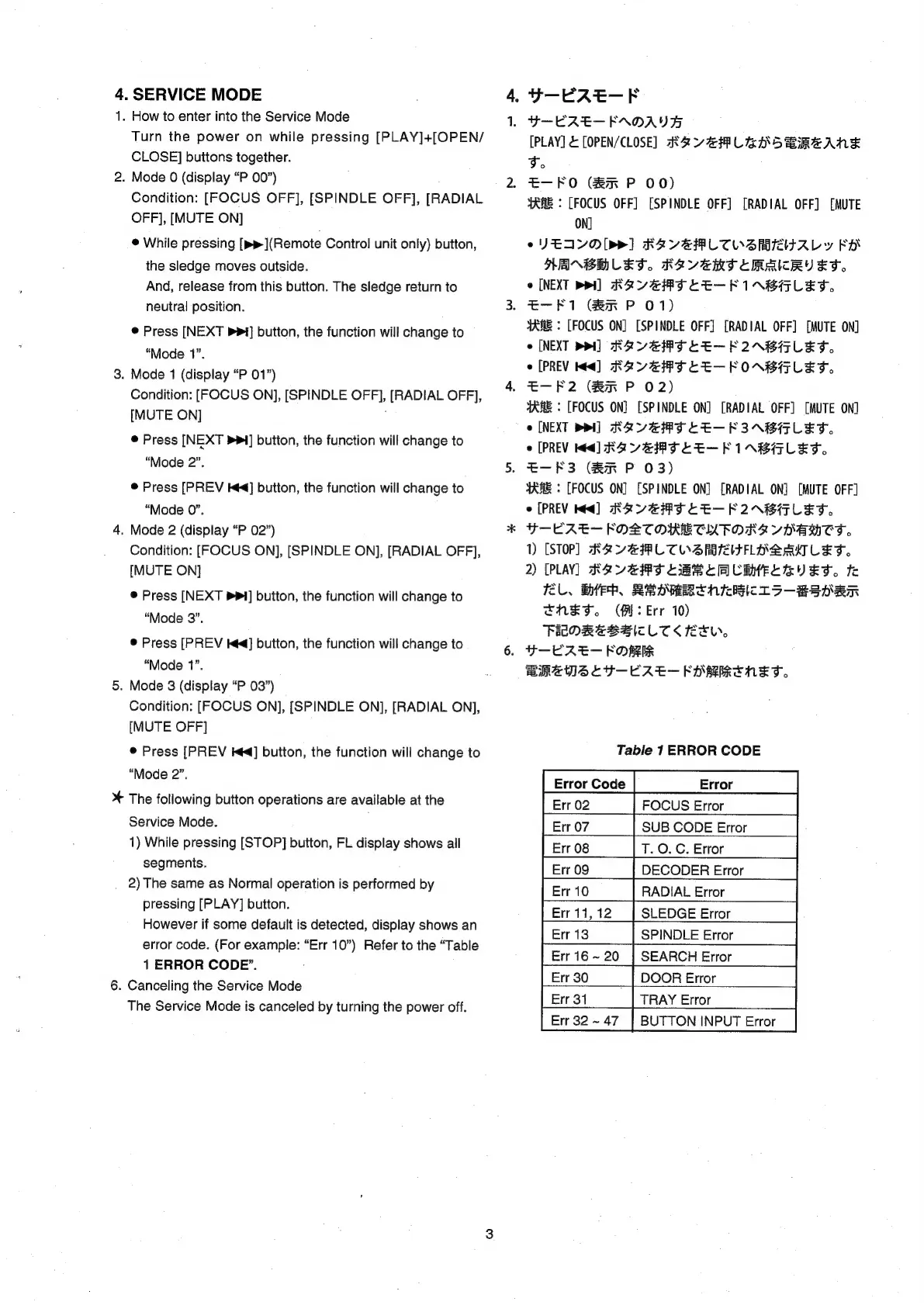

4. SERVICE MODE
1.
bp
How to enter into the Service Mode
Turn the power on while pressing [PLAY]+[OPEN/
CLOSE] buttons together.
. Mode 0 (display “P 00”)
Condition: [FOCUS OFF], [SPINDLE OFF], [RADIAL
OFF], [MUTE ON]
® While pressing [»»](Remote Conirol unit only) button,
the sledge moves outside.
And, release from this button. The sledge return to
neutral position.
® Press [NEXT PPI] button, the function will change to
“Mode 1”.
. Mode 1 (display “P 01”)
Condition: [FOCUS ON], [SPINDLE OFF], [RADIAL OFF],
[MUTE ON] ;
® Press [NEXT PI] button, the function will change to
“Mode 2”.
© Press [PREV Ké<] button, the function will change to
“Mode 0”.
. Mode 2 (display “P 02”)
Condition: [FOCUS ON], [SPINDLE ON], [RADIAL OFF],
[MUTE ON]
® Press [NEXT PPI] button, the function will change to
“Mode 3”.
@ Press [PREV kd] button, the function will change to
“Mode 1”.
. Mode 3 (display “P 03”)
Condition: [FOCUS ON], [SPINDLE ON], [RADIAL ON},
[MUTE OFF]
© Press [PREV kéd] button, the function will change to
“Mode 2”.
% The following button operations are available at the
Service Mode.
1) While pressing [STOP] button, FL display shows all
segments.
2) The same as Normal operation is performed by
pressing [PLAY] button.
However if some default is detected, display shows an
error code. (For example: “Err 10”) Refer to the “Table
1 ERROR CODE”.
6. Canceling the Service Mode
The Service Mode is canceled by turning the power off.
4.
i:
F—-ERZE—F
F—-ERZE— FADAVA
[PLAY] & [OPEN/CLOSE] RA VAHLEDSBREANE
Tt.
=—FO mR P 00)
4KHE : [FOCUS OFF] [SPINDLE OFF] [RADIAL OFF] [MUTE
ON]
YEAYO [>>] KAVEHLTOSHEWU ALY FR
AANBHLES, REVERT CRAICRVUES.
oe [NEXT PRI] RAVSASEE—FINBGLES.
. E-F1 Gm P 01)
4XKE : [FOCUS ON] [SPINDLE OFF] [RADIAL OFF] [MUTE ON]
e [NEXT PRI] REVAATEE—-FANBAGLES.
e [PREV Kd] RAVAES LE—-FONBALES,
——F2 (mR P 02)
4KHE : [FOCUS ON] [SPINDLE ON] [RADIAL OFF] [MUTE ON]
© (NEXT pri] RE VAATLE—-F3INBGLED.
oe
[PREV
KM]
RA
VARS
ELE—FINBALES.
—E—-F3 GER P 03)
YKAE : [FOCUS ON] [SPINDLE ON] [RADIAL ON] [MUTE OFF]
e
[PREV
Kd]
RA
VAPTEE—FANVBGLEF.
F-ERE— FOLZTORECMU FORAY DSWCT.
1) [STOP] RAVAPMUTOSMEIFLASATLETF.
2) [PLAY] RAVES LIBR CAMCEELEVET. fe
TEL. EER, ROR CNC LS BSR
ENET. (Hil: Err 10)
FICORASEICLT SEE,
F—-ERE— FORR
ERZMSELY-ERZE— FORRENET.
Table 1 ERROR CODE
