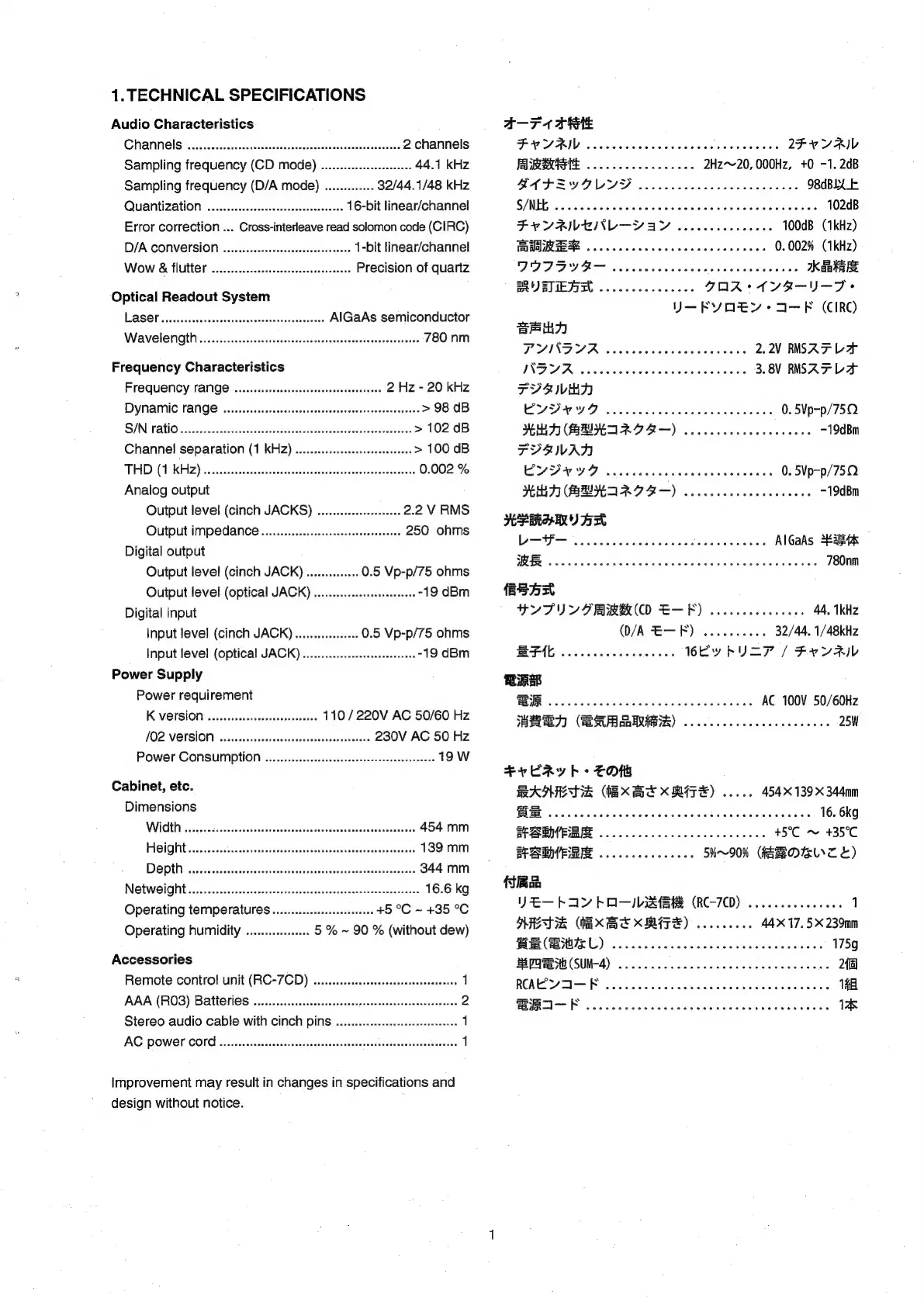

1. TECHNICAL SPECIFICATIONS
Audio Characteristics
CHANNEIS? co. csssccecsecvessccaeede degeenscanencceesensucoeseseae 2 channels
Sampling frequency (CD mode) «0.0... seeeseeeeeees 44.1 kHz
Sampling frequency (D/A mode) ............. 32/44.1/48 kHz
QUANTIZATION «00... eee eeeeeeeeeeeeeeeee 16-bit linear/channel
Error correction ... Cross-interleave read solomon code (CIRC)
D/A CONVEFSION .0.....eeeseseeeeeeeeeeeeeneeees 1-bit linear/channel
WoW & flUtter .... ee eesteceeeseneeeeseeneenees Precision of quartz
Optical Readout System
LaSOf via sascicicé cenger aie AlGaAs semiconductor
Wavelength ...........ccsccceeesssseeeceeenseseesesneeceseeseessaees 780 nm
Frequency Characteristics
FrEQUENCY LANGE ........ceecssetesessenseecenseenene 2 Hz - 20 kHz
DYMAMIC ANGE ......cesesesecessceesssrenesteeseesessonseesoneees > 98 dB
S/N PALO: scccsiseascscpeivdsoseccovansetestiscesoecessersdannites > 102 dB
Channel separation (1 KHZ) ......-.sseseeeeeeeeeesees > 100 dB
THD: CU-KAZ) sisscstevsscccsvercsunescnsersucanesvevonedvovenevedness 0.002 %
Analog output
Output level (cinch JACKS) ....... eee 2.2 V RMS
Output IMPeEdANce ...........:eceseeeeeeteeseeeneees 250 ohms
Digital output
Output level (cinch JACK) ............. 0.5 Vp-p/75 ohms
Output level (optical JACK) .........eeesseeseerees -19 dBm
Digital input
Input level (cinch JACK)............ 0.5 Vp-p/75 ohms
Input level (optical JACK) ........eeeessseeeeees -19 dBm
Power Supply
Power requirement
K VOPSION oo... essesssserseeesseseneee 110 / 220V AC 50/60 Hz
102 VOFSION .....s:cssscereeeceerseesseesesersnesens 230V AC 50 Hz
Power Consumption .........cseccsscesesececeeeseeeeseeeeseeeees 19W
Cabinet, etc.
Dimensions
WIA 2 sde cree tusSteisehs Soestavecdectaaeesessibinctresebeaseas 454 mm
FIGIQIE ic. sccsstececestisesseccsvseeonsossessscnsorsensasesconbs 139 mm
DO PU isco sc ccacecececet ches tensledsctisessceasssteseveoberseenti 344 mm
NGtWOIQIM seis cadiesiciesctcidesepssezedcenscucsdesbsbiseeonsezenete 16.6 kg
Operating temperatures .........ccscesseeeseees +5 °C ~ +35 °C
Operating humidity ...........ee 5 % ~ 90 % (without dew)
Accessories
Remote control unit (RC-7CD) .....c.eeeeceseessesersseseenseees 1
AAA (R038) Batteries 20.1.0... cs esscesseceecssceeseseessnseseeeseenee 2
Stereo audio cable with cinch pins ............-.::eeeeeeeeeeeeee 1
AG POWEM COM iid ssetepenceesdicctesiesicvesenteveneteesenstensocddweacts 1
Improvement may result in changes in specifications and
design without notice.
