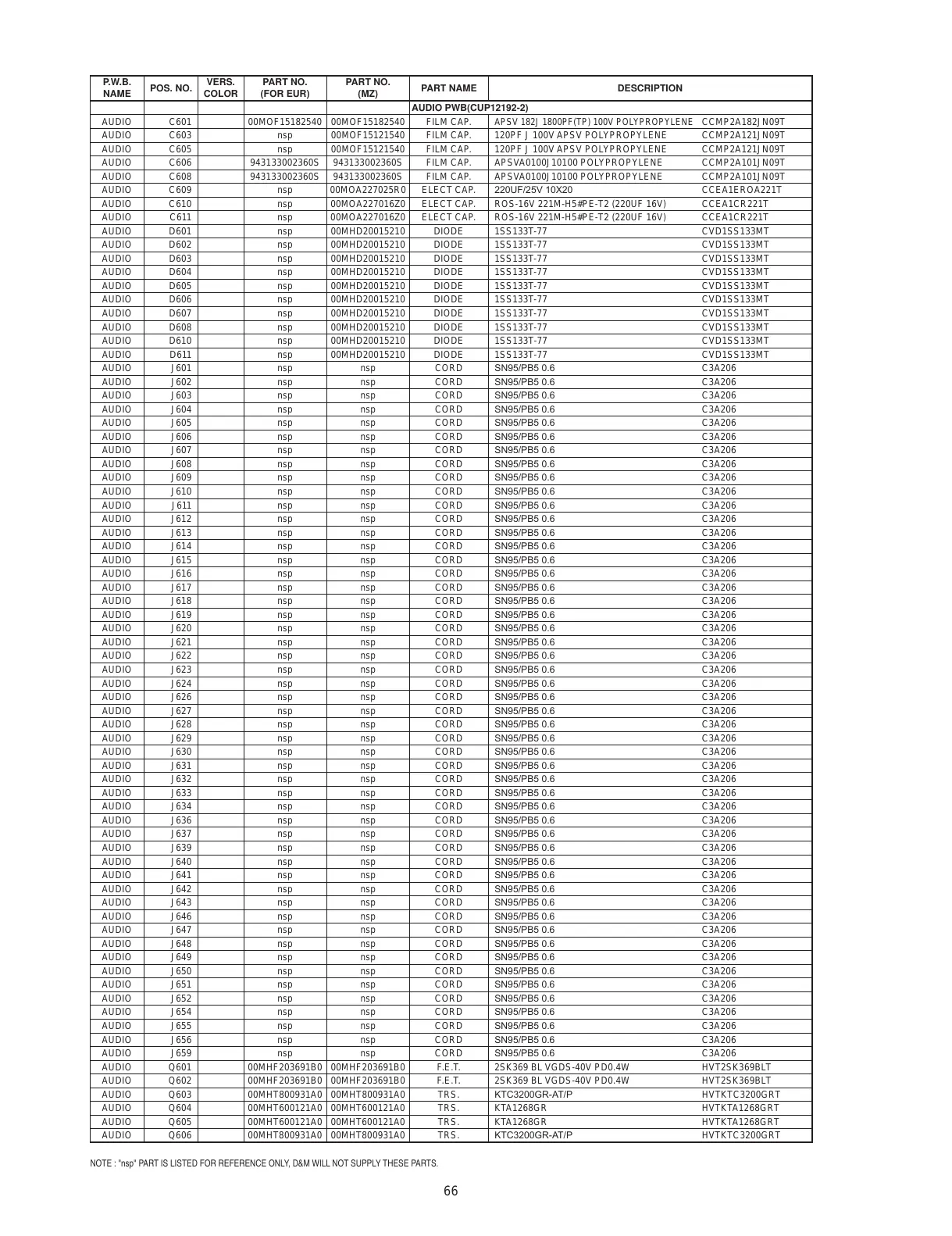

Marantz CD6003 Service Manual

66
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, D&M WILL NOT SUPPLY THESE PARTS.
P.W.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MZ)
PART NAME DESCRIPTION
AUDIO PWB(CUP12192-2)
AUDIO C601 00MOF15182540 00MOF15182540 FILM CAP.
APSV 182J 1800PF(TP) 100V POLYPROPYLENE CCMP2A182JN09T
AUDIO C603 nsp 00MOF15121540 FILM CAP. 120PF J 100V APSV POLYPROPYLENE CCMP2A121JN09T
AUDIO C605 nsp 00MOF15121540 FILM CAP. 120PF J 100V APSV POLYPROPYLENE CCMP2A121JN09T
AUDIO C606 943133002360S 943133002360S FILM CAP. APSVA0100J10100 POLYPROPYLENE CCMP2A101JN09T
AUDIO C608 943133002360S 943133002360S FILM CAP. APSVA0100J10100 POLYPROPYLENE CCMP2A101JN09T
AUDIO C609 nsp 00MOA227025R0 ELECT CAP. 220UF/25V 10X20 CCEA1EROA221T
AUDIO C610 nsp 00MOA227016Z0 ELECT CAP. ROS-16V 221M-H5#PE-T2 (220UF 16V) CCEA1CR221T
AUDIO C611 nsp 00MOA227016Z0 ELECT CAP. ROS-16V 221M-H5#PE-T2 (220UF 16V) CCEA1CR221T
AUDIO D601 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D602 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D603 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D604 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D605 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D606 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D607 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D608 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D610 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D611 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO J601 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J602 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J603 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J604 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J605 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J606 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J607 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J608 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J609 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J610 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J611 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J612 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J613 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J614 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J615 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J616 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J617 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J618 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J619 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J620 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J621 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J622 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J623 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J624 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J626 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J627 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J628 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J629 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J630 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J631 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J632 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J633 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J634 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J636 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J637 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J639 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J640 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J641 nsp
nsp CORD SN95/PB5 0.6 C3A206
AUDIO J642 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J643 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J646 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J647 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J648 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J649 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J650 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J651 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J652 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J654 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J655 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J656 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J659 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO Q601 00MHF203691B0 00MHF203691B0 F.E.T
. 2SK369 BL VGDS-40V PD0.4W HVT2SK369BLT
AUDIO Q602 00MHF203691B0 00MHF203691B0 F.E.T. 2SK369 BL VGDS-40V PD0.4W HVT2SK369BLT
AUDIO Q603 00MHT800931A0 00MHT800931A0 TRS. KTC3200GR-AT/P HVTKTC3200GRT
AUDIO Q604 00MHT600121A0 00MHT600121A0 TRS. KTA1268GR HVTKTA1268GRT
AUDIO Q605 00MHT600121A0 00MHT600121A0 TRS. KTA1268GR HVTKTA1268GRT
AUDIO Q606 00MHT800931A0 00MHT800931A0 TRS. KTC3200GR-AT/P HVTKTC3200GRT
