Marantz CD6003 Service Manual

65
The suppliers and their type numbers of fusible resistors
are as follows;
1. KOA Corporation
Part No. (MJI) Type No. (KOA) Description
00MNH05
× × ×
140 RF25S
× × × × Ω
J (±5% 1/4W)
00MNH05
× × ×
120 RF50S
× × × × Ω
J (±5% 1/2W)
00MNH85
× × ×
110 RF73B2A
× × × × Ω
J (±5% 1/10W)
00MNH95
× × ×
140 RF73B2E
× × × × Ω
J (±5% 1/4W)
2. Matsushita Electronic Components Co., Ltd
Part No. (MJI) Type No. (MEC) Description
00MNF05
× × ×
140 ERD-2FCJ
× × ×
(±5% 1/4W)
00MRF05
× × ×
140
00MNF02
× × ×
140 ERD-2FCG
× × ×
(±2% 1/4W)
00MRF02
× × ×
140
Examples ;
*
Resistance value
0.1
Ω
.... 001 10
Ω
....100 1k
Ω
.... 102 100k
Ω
....104
0.5
Ω
.... 005 18
Ω
....180 2.7k
Ω
.... 272 680k
Ω
....684
1
Ω
.... 010 100
Ω
....101 10k
Ω
.... 103 1M
Ω
....105
6.8
Ω
.... 068 390
Ω
....391 22k
Ω
.... 223 4.7M
Ω
....475
PARTS INFORMATION
RESISTORS
1) 00MGD05
× × ×
140, Carbon lm xed resistor, ±5% 1/4W
2) 00MGD05
× × ×
160, Carbon lm xed resistor, ±5% 1/6W
Examples ;

Resistance value
0.1
Ω
.... 001 10
Ω
....100 1k
Ω
.... 102 100k
Ω
.... 104
0.5
Ω
.... 005 18
Ω
....180 2.7k
Ω
.... 272 680k
Ω
.... 684
1
Ω
.... 010 100
Ω
....101 10k
Ω
.... 103 1M
Ω
.... 105
6.8
Ω
.... 068 390
Ω
....391 22k
Ω
.... 223 4.7M
Ω
.... 475
Note : Please distinguish 1/4W from 1/6W by the shape of parts
used actually.
CAPACITORS
CERAMIC CAP.
3) 00MDD1
× × × ×
370, Ceramic capacitor
Disc type
Temp.coeff.P350
～
N1000, 50V
Examples ;

Tolerance (Capacity deviation)
±0.25pF ......0
±0.5pF ......1
±5% ......5
Tolerance of COMMON PARTS handled here are as follows :
0.5pF
～
5pF .... ±0.25pF
6pF
～
10pF .... ±0.5pF
12pF
～
560pF .... ±5%

Capacity value
0.5pF .... 005 3pF ....030 100pF .... 101
1pF .... 010 10pF ....100 220pF .... 221
1.5pF .... 015 47pF ....470 560pF .... 561
CERAMIC CAP.
4) 00MDK16
× × ×
300, High dielectric constant ceramic
capacitor
Disc type
Temp.chara. 2B4, 50V
Examples ;

Capacity value
100pF .... 101 1000pF .... 102 10000pF ....103
470pF .... 471 2200pF .... 222
ELECTROLY CAP. ( )
5) 00MEA
× × × × × ×
10, Electrolytic capacitor
One-way lead type, Tolerance ±20%
Examples ;

Capacity value
0.1µF ....104 4.7µF ....475 100µF ... 107
0.33µF ....334 10µF ....106 330µF ... 337
1µF ....105 22µF ....226 1100µF ... 118
2200µF ... 228

Working voltage
6.3V ....006 25V ....025
10V ....010 35V ....035
16V ....016 50V ....050
FILM CAP. ( )
6) 00MDF15
× × ×
350 Plastic lm capacitor
00MDF15
× × ×
310 One-way type, Mylar ±5% 50V
00MDF16
× × ×
310 Plastic lm capacitor
One-way type, Mylar ±10% 50V
Examples ;

Capacity value
0.001µF (1000pF) ......... 102 0.1µF .... 104
0.0018µF ........................182 0.56µF .... 564
0.01µF ........................103 1µF .... 105
0.015µF ........................153
NOTE ON FUSE :
Regarding to all parts of parts code 00MFS20xxx2xx, replace
only with Wickmann-Werke GmbH, Type 372 non glass type fuse.

}



Capacity value
Tolerance

Capacity value
Resistance value
 
Working voltage
Capacity value
▲
▲

Capacity value
NOTE ON SAFETY FOR FUSIBLE RESISTOR :
▲ ▲
▲▲
Resistance value
Resistance value
(0.1
−
10k
Ω
)
▲ ▲
Resistance value
Resistance value
ANT. : ANTENNA BATT. : BATTERY
CAP. : CAPACITOR CER. : CERAMIC
CONN. : CONNECTING DIG. : DIGITAL
HP : HEADPHONE MIC. : MICROPHONE
µ-PRO : MICROPROCESSOR REC. : RECORDING
RES. : RESISTOR SPK : SPEAKER
SW : SWITCH TRANSF. : TRANSFORMER
TRIM. : TRIMMING TRS. : TRAMSISTOR
VAR. : VARIABLE X’TAL : CRYSTAL
NOTE ON SAFETY :
Symbol Fire or electrical shock hazard. Only original parts
should be used to replaced any part marked with symbol .
Any other component substitution (other than original type), may
increase risk of re or electrical shock hazard.
安全上の注意 :
がついている部品は、安全上重要な部品です。必ず指定
されている部品番号の部品を使用して下さい。
ABBREVIATION AND MARKS
}
}
}
}
}
}
}
}
}
060522 MZ

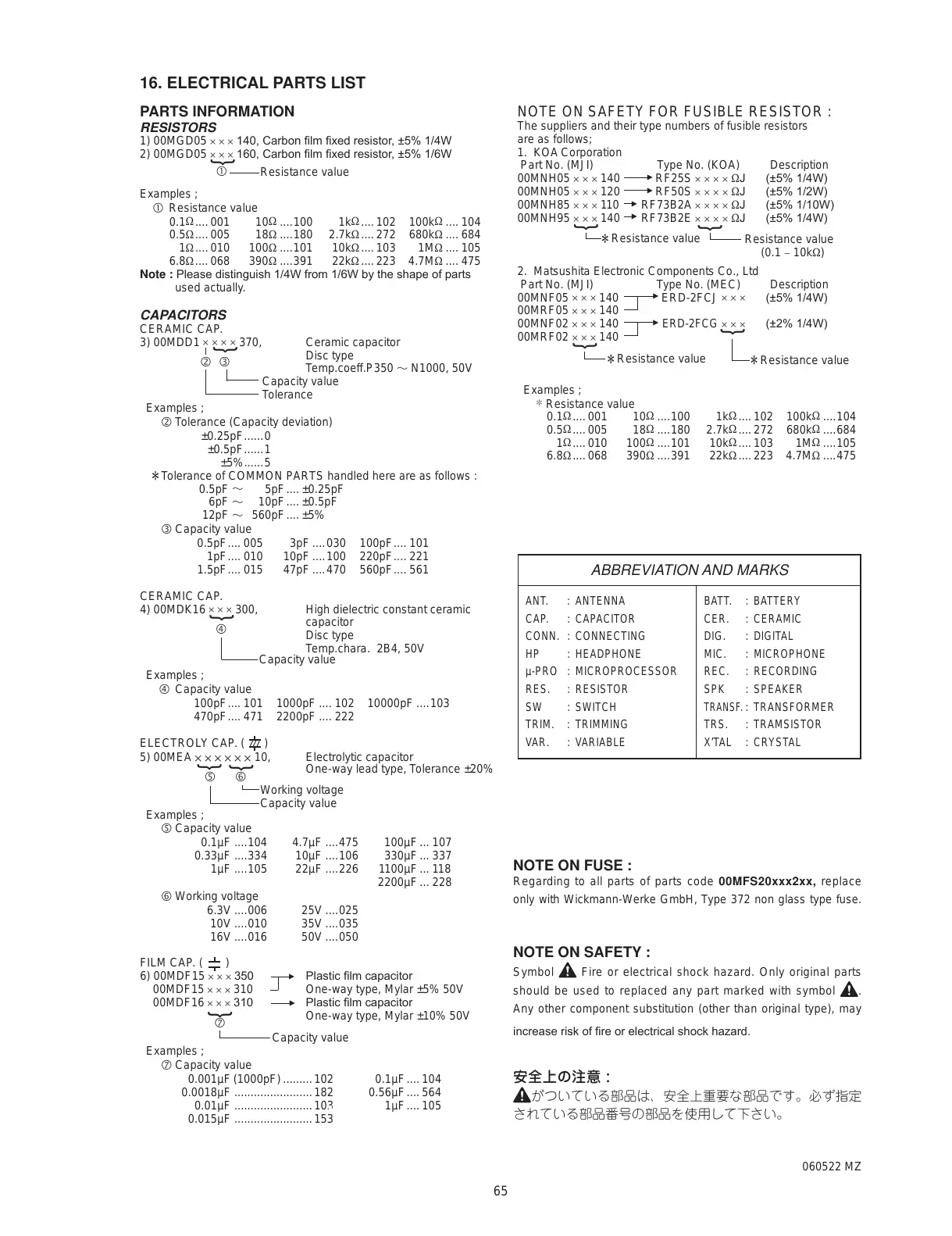

16. ELECTRICAL PARTS LIST
All manuals and user guides at all-guides.com

Marantz CD6003 Specifications

General

Frequency range	2 - 20000 Hz
Audio formats supported	AAC, MP3, WMA
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.002 %
CD-RW playback	Yes
CD changer	-
Device type	Personal CD player
Cassette deck	No
Product color	Gold, Silver
Channels quantity	2 channels
Disc loading type	Tray
Remote control type	RC002CD
Display type	LCD
Volume control	Rotary
Programmable tracks	30
USB 2.0 ports quantity	1
Power consumption (standby)	0.3 W
Power consumption (typical)	19 W

Weight and Dimensions

Depth	339 mm
Width	440 mm
Height	106 mm
Weight	7000 g
