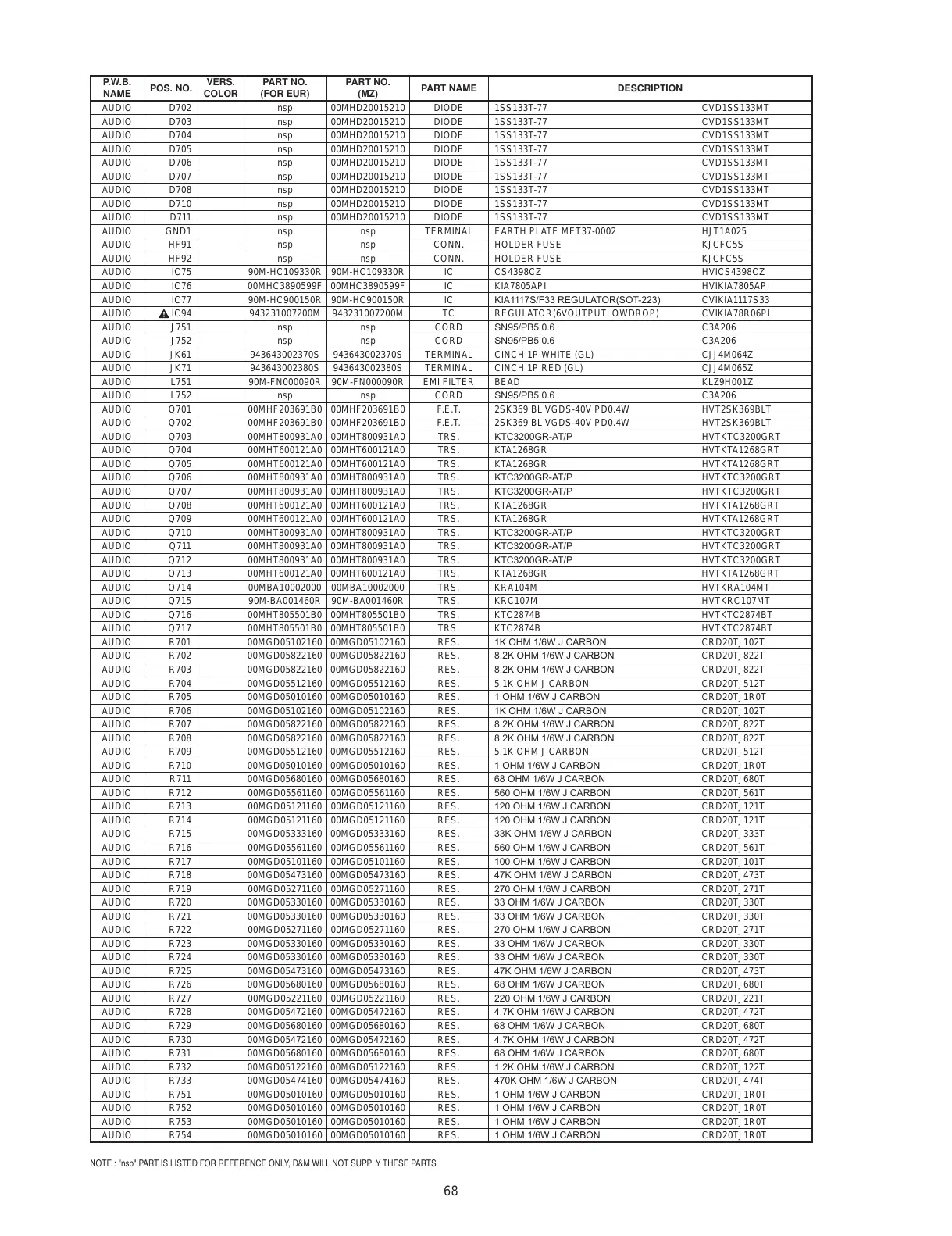

Marantz CD6003 - Page 47

68
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, D&M WILL NOT SUPPLY THESE PARTS.
P.W.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MZ)
PART NAME DESCRIPTION
AUDIO D702 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D703 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D704 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D705 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D706 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D707 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D708 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D710 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO D711 nsp 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT
AUDIO GND1 nsp nsp TERMINAL EARTH PLATE MET37-0002 HJT1A025
AUDIO HF91 nsp nsp CONN. HOLDER FUSE KJCFC5S
AUDIO HF92 nsp nsp CONN. HOLDER FUSE KJCFC5S
AUDIO IC75 90M-HC109330R 90M-HC109330R IC CS4398CZ HVICS4398CZ
AUDIO IC76 00MHC3890599F 00MHC3890599F IC KIA7805API HVIKIA7805API
AUDIO IC77 90M-HC900150R 90M-HC900150R IC KIA1117S/F33 REGULATOR(SOT-223) CVIKIA1117S33
AUDIO
IC94 943231007200M 943231007200M TC REGULATOR(6VOUTPUTLOWDROP) CVIKIA78R06PI
AUDIO J751 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO J752 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO JK61 943643002370S 943643002370S TERMINAL CINCH 1P WHITE (GL) CJJ4M064Z
AUDIO JK71 943643002380S 943643002380S TERMINAL CINCH 1P RED (GL) CJJ4M065Z
AUDIO L751 90M-FN000090R 90M-FN000090R EMI FILTER BEAD KLZ9H001Z
AUDIO L752 nsp nsp CORD SN95/PB5 0.6 C3A206
AUDIO Q701 00MHF203691B0 00MHF203691B0 F.E.T. 2SK369 BL VGDS-40V PD0.4W HVT2SK369BLT
AUDIO Q702 00MHF203691B0 00MHF203691B0 F.E.T. 2SK369 BL VGDS-40V PD0.4W HVT2SK369BLT
AUDIO Q703 00MHT800931A0 00MHT800931A0 TRS. KTC3200GR-AT/P HVTKTC3200GRT
AUDIO Q704 00MHT600121A0 00MHT600121A0 TRS. KTA1268GR HVTKTA1268GRT
AUDIO Q705 00MHT600121A0 00MHT600121A0 TRS. KTA1268GR HVTKTA1268GRT
AUDIO Q706 00MHT800931A0 00MHT800931A0 TRS. KTC3200GR-AT/P HVTKTC3200GRT
AUDIO Q707 00MHT800931A0 00MHT800931A0 TRS. KTC3200GR-AT/P HVTKTC3200GRT
AUDIO Q708 00MHT600121A0 00MHT600121A0 TRS. KTA1268GR HVTKTA1268GRT
AUDIO Q709 00MHT600121A0 00MHT600121A0 TRS. KTA1268GR HVTKTA1268GRT
AUDIO Q710 00MHT800931A0 00MHT800931A0 TRS. KTC3200GR-AT/P HVTKTC3200GRT
AUDIO Q711 00MHT800931A0 00MHT800931A0 TRS. KTC3200GR-AT/P HVTKTC3200GRT
AUDIO Q712 00MHT800931A0 00MHT800931A0 TRS. KTC3200GR-AT/P HVTKTC3200GRT
AUDIO Q713 00MHT600121A0 00MHT600121A0 TRS. KTA1268GR HVTKTA1268GRT
AUDIO Q714 00MBA10002000 00MBA10002000 TRS. KRA104M HVTKRA104MT
AUDIO Q715 90M-BA001460R 90M-BA001460R TRS. KRC107M HVTKRC107MT
AUDIO Q716 00MHT805501B0 00MHT805501B0 TRS. KTC2874B HVTKTC2874BT
AUDIO Q717 00MHT805501B0 00MHT805501B0 TRS. KTC2874B HVTKTC2874BT
AUDIO R701 00MGD05102160 00MGD05102160 RES. 1K OHM 1/6W J CARBON CRD20TJ102T
AUDIO R702 00MGD05822160 00MGD05822160 RES. 8.2K OHM 1/6W J CARBON CRD20TJ822T
AUDIO R703 00MGD05822160 00MGD05822160 RES. 8.2K OHM 1/6W J CARBON CRD20TJ822T
AUDIO R704 00MGD05512160 00MGD05512160 RES. 5.1K OHM J CARBON CRD20TJ512T
AUDIO R705 00MGD05010160 00MGD05010160 RES. 1 OHM 1/6W J CARBON CRD20TJ1R0T
AUDIO R706 00MGD05102160 00MGD05102160 RES. 1K OHM 1/6W J CARBON CRD20TJ102T
AUDIO R707 00MGD05822160 00MGD05822160 RES. 8.2K OHM 1/6W J CARBON CRD20TJ822T
AUDIO R708 00MGD05822160 00MGD05822160 RES. 8.2K OHM 1/6W J CARBON CRD20TJ822T
AUDIO R709 00MGD05512160 00MGD05512160 RES. 5.1K OHM J CARBON CRD20TJ512T
AUDIO R710 00MGD05010160 00MGD05010160 RES. 1 OHM 1/6W J CARBON CRD20TJ1R0T
AUDIO R711 00MGD05680160 00MGD05680160 RES. 68 OHM 1/6W J CARBON CRD20TJ680T
AUDIO R712 00MGD05561160 00MGD05561160 RES. 560 OHM 1/6W J CARBON CRD20TJ561T
AUDIO R713 00MGD05121160 00MGD05121160 RES. 120 OHM 1/6W J CARBON CRD20TJ121T
AUDIO R714 00MGD05121160 00MGD05121160 RES. 120 OHM 1/6W J CARBON CRD20TJ121T
AUDIO R715 00MGD05333160 00MGD05333160 RES. 33K OHM 1/6W J CARBON CRD20TJ333T
AUDIO R716 00MGD05561160 00MGD05561160 RES. 560 OHM 1/6W J CARBON CRD20TJ561T
AUDIO R717 00MGD05101160 00MGD05101160 RES. 100 OHM 1/6W J CARBON CRD20TJ101T
AUDIO R718 00MGD05473160 00MGD05473160 RES. 47K OHM 1/6W J CARBON CRD20TJ473T
AUDIO R719 00MGD05271160 00MGD05271160 RES. 270 OHM 1/6W J CARBON CRD20TJ271T
AUDIO R720 00MGD05330160 00MGD05330160 RES. 33 OHM 1/6W J CARBON CRD20TJ330T
AUDIO R721 00MGD05330160 00MGD05330160 RES. 33 OHM 1/6W J CARBON CRD20TJ330T
AUDIO R722 00MGD05271160 00MGD05271160 RES. 270 OHM 1/6W J CARBON CRD20TJ271T
AUDIO R723 00MGD05330160 00MGD05330160 RES. 33 OHM 1/6W J CARBON CRD20TJ330T
AUDIO R724 00MGD05330160 00MGD05330160 RES. 33 OHM 1/6W J CARBON CRD20TJ330T
AUDIO R725 00MGD05473160 00MGD05473160 RES. 47K OHM 1/6W J CARBON CRD20TJ473T
AUDIO R726 00MGD05680160 00MGD05680160 RES. 68 OHM 1/6W J CARBON CRD20TJ680T
AUDIO R727 00MGD05221160 00MGD05221160 RES. 220 OHM 1/6W J CARBON CRD20TJ221T
AUDIO R728 00MGD05472160 00MGD05472160 RES. 4.7K OHM 1/6W J CARBON CRD20TJ472T
AUDIO R729 00MGD05680160 00MGD05680160 RES. 68 OHM 1/6W J CARBON CRD20TJ680T
AUDIO R730 00MGD05472160 00MGD05472160 RES. 4.7K OHM 1/6W J CARBON CRD20TJ472T
AUDIO R731 00MGD05680160 00MGD05680160 RES. 68 OHM 1/6W J CARBON CRD20TJ680T
AUDIO R732 00MGD05122160 00MGD05122160 RES. 1.2K OHM 1/6W J CARBON CRD20TJ122T
AUDIO R733 00MGD05474160 00MGD05474160 RES. 470K OHM 1/6W J CARBON CRD20TJ474T
AUDIO R751
00MGD05010160 00MGD05010160 RES. 1 OHM 1/6W J CARBON CRD20TJ1R0T
AUDIO R752 00MGD05010160 00MGD05010160 RES. 1 OHM 1/6W J CARBON CRD20TJ1R0T
AUDIO R753 00MGD05010160 00MGD05010160 RES. 1 OHM 1/6W J CARBON CRD20TJ1R0T
AUDIO R754 00MGD05010160 00MGD05010160 RES. 1 OHM 1/6W J CARBON CRD20TJ1R0T
