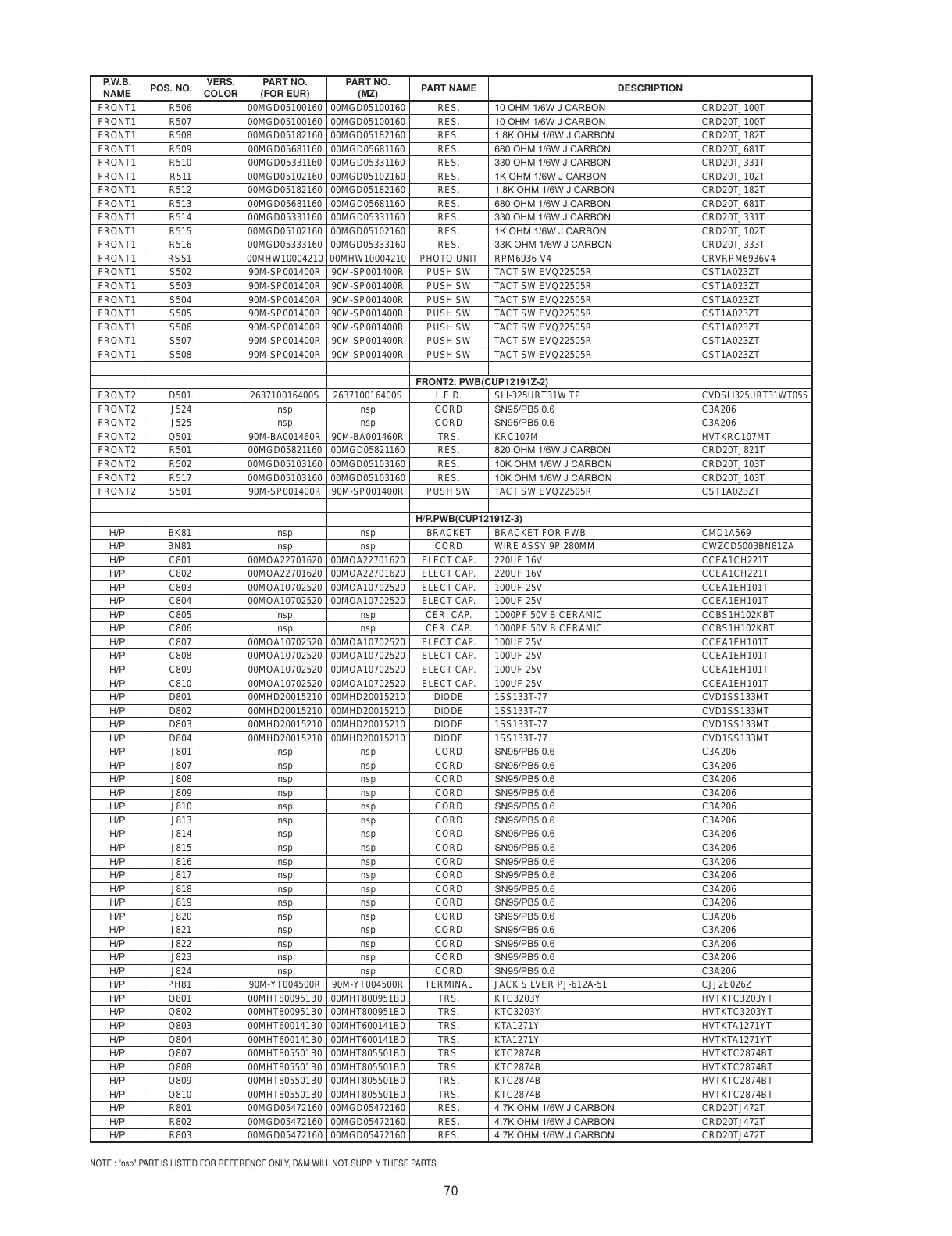

Marantz CD6003 - Page 49

To Next Page

To Previous Page

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, D&M WILL NOT SUPPLY THESE PARTS.

P.W.B.

NAME

POS. NO.

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MZ)

PART NAME DESCRIPTION

FRONT1 R506 00MGD05100160 00MGD05100160 RES. 10 OHM 1/6W J CARBON CRD20TJ100T

FRONT1 R507 00MGD05100160 00MGD05100160 RES. 10 OHM 1/6W J CARBON CRD20TJ100T

FRONT1 R508 00MGD05182160 00MGD05182160 RES. 1.8K OHM 1/6W J CARBON CRD20TJ182T

FRONT1 R509 00MGD05681160 00MGD05681160 RES. 680 OHM 1/6W J CARBON CRD20TJ681T

FRONT1 R510 00MGD05331160 00MGD05331160 RES. 330 OHM 1/6W J CARBON CRD20TJ331T

FRONT1 R511 00MGD05102160 00MGD05102160 RES. 1K OHM 1/6W J CARBON CRD20TJ102T

FRONT1 R512 00MGD05182160 00MGD05182160 RES. 1.8K OHM 1/6W J CARBON CRD20TJ182T

FRONT1 R513 00MGD05681160 00MGD05681160 RES. 680 OHM 1/6W J CARBON CRD20TJ681T

FRONT1 R514 00MGD05331160 00MGD05331160 RES. 330 OHM 1/6W J CARBON CRD20TJ331T

FRONT1 R515 00MGD05102160 00MGD05102160 RES. 1K OHM 1/6W J CARBON CRD20TJ102T

FRONT1 R516 00MGD05333160 00MGD05333160 RES. 33K OHM 1/6W J CARBON CRD20TJ333T

FRONT1 RS51 00MHW10004210 00MHW10004210 PHOTO UNIT RPM6936-V4 CRVRPM6936V4

FRONT1 S502 90M-SP001400R 90M-SP001400R PUSH SW TACT SW EVQ22505R CST1A023ZT

FRONT1 S503 90M-SP001400R 90M-SP001400R PUSH SW TACT SW EVQ22505R CST1A023ZT

FRONT1 S504 90M-SP001400R 90M-SP001400R PUSH SW TACT SW EVQ22505R CST1A023ZT

FRONT1 S505 90M-SP001400R 90M-SP001400R PUSH SW TACT SW EVQ22505R CST1A023ZT

FRONT1 S506 90M-SP001400R 90M-SP001400R PUSH SW TACT SW EVQ22505R CST1A023ZT

FRONT1 S507 90M-SP001400R 90M-SP001400R PUSH SW TACT SW EVQ22505R CST1A023ZT

FRONT1 S508 90M-SP001400R 90M-SP001400R PUSH SW TACT SW EVQ22505R CST1A023ZT

FRONT2. PWB(CUP12191Z-2)

FRONT2 D501 263710016400S 263710016400S L.E.D. SLI-325URT31W TP

CVDSLI325URT31WT055

FRONT2 J524 nsp nsp CORD SN95/PB5 0.6 C3A206

FRONT2 J525 nsp nsp CORD SN95/PB5 0.6 C3A206

FRONT2 Q501 90M-BA001460R 90M-BA001460R TRS. KRC107M HVTKRC107MT

FRONT2 R501 00MGD05821160 00MGD05821160 RES. 820 OHM 1/6W J CARBON CRD20TJ821T

FRONT2 R502 00MGD05103160 00MGD05103160 RES. 10K OHM 1/6W J CARBON CRD20TJ103T

FRONT2 R517 00MGD05103160 00MGD05103160 RES. 10K OHM 1/6W J CARBON CRD20TJ103T

FRONT2 S501 90M-SP001400R 90M-SP001400R PUSH SW TACT SW EVQ22505R CST1A023ZT

H/P.PWB(CUP12191Z-3)

H/P BK81 nsp nsp BRACKET BRACKET FOR PWB CMD1A569

H/P BN81 nsp nsp CORD WIRE ASSY 9P 280MM CWZCD5003BN81ZA

H/P C801 00MOA22701620 00MOA22701620 ELECT CAP. 220UF 16V CCEA1CH221T

H/P C802 00MOA22701620 00MOA22701620 ELECT CAP. 220UF 16V CCEA1CH221T

H/P C803 00MOA10702520 00MOA10702520 ELECT CAP. 100UF 25V CCEA1EH101T

H/P C804 00MOA10702520 00MOA10702520 ELECT CAP. 100UF 25V CCEA1EH101T

H/P C805 nsp nsp CER. CAP. 1000PF 50V B CERAMIC CCBS1H102KBT

H/P C806 nsp nsp CER. CAP. 1000PF 50V B CERAMIC CCBS1H102KBT

H/P C807 00MOA10702520 00MOA10702520 ELECT CAP. 100UF 25V CCEA1EH101T

H/P C808 00MOA10702520 00MOA10702520 ELECT CAP. 100UF 25V CCEA1EH101T

H/P C809 00MOA10702520 00MOA10702520 ELECT CAP. 100UF 25V CCEA1EH101T

H/P C810 00MOA10702520 00MOA10702520 ELECT CAP. 100UF 25V CCEA1EH101T

H/P D801 00MHD20015210 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT

H/P D802 00MHD20015210 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT

H/P D803 00MHD20015210 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT

H/P D804 00MHD20015210 00MHD20015210 DIODE 1SS133T-77 CVD1SS133MT

H/P J801 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J807 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J808 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J809 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J810 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J813 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J814 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J815 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J816 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J817 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J818 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J819 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J820

nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J821 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J822 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J823 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P J824 nsp nsp CORD SN95/PB5 0.6 C3A206

H/P PH81 90M-YT004500R 90M-YT004500R TERMINAL JACK SILVER PJ-612A-51 CJJ2E026Z

H/P Q801 00MHT800951B0

00MHT800951B0 TRS. KTC3203Y HVTKTC3203YT

H/P Q802 00MHT800951B0 00MHT800951B0 TRS. KTC3203Y HVTKTC3203YT

H/P Q803 00MHT600141B0 00MHT600141B0 TRS. KTA1271Y HVTKTA1271YT

H/P Q804 00MHT600141B0 00MHT600141B0 TRS. KTA1271Y HVTKTA1271YT

H/P Q807 00MHT805501B0 00MHT805501B0 TRS. KTC2874B HVTKTC2874BT

H/P Q808 00MHT805501B0 00MHT805501B0 TRS. KTC2874B HVTKTC2874BT

H/P Q809 00MHT805501B0 00MHT805501B0 TRS. KTC2874B HVTKTC2874BT

H/P Q810 00MHT805501B0 00MHT805501B0 TRS. KTC2874B HVTKTC2874BT

H/P R801 00MGD05472160 00MGD05472160 RES. 4.7K OHM 1/6W J CARBON CRD20TJ472T

H/P R802 00MGD05472160 00MGD05472160 RES. 4.7K OHM 1/6W J CARBON CRD20TJ472T

H/P R803 00MGD05472160 00MGD05472160 RES. 4.7K OHM 1/6W J CARBON CRD20TJ472T
