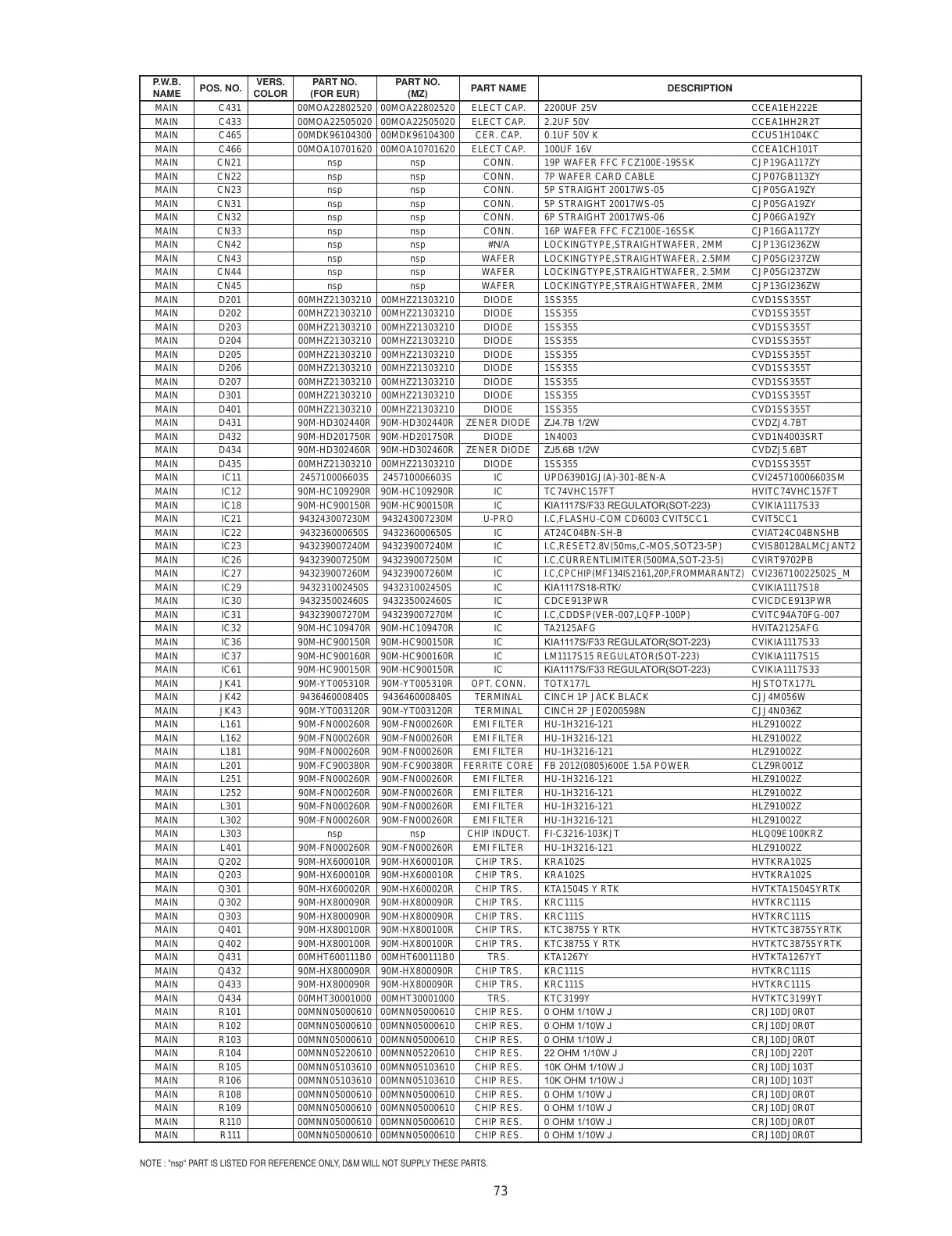

73
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, D&M WILL NOT SUPPLY THESE PARTS.
P.W.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MZ)
PART NAME DESCRIPTION
MAIN C431 00MOA22802520 00MOA22802520 ELECT CAP. 2200UF 25V CCEA1EH222E
MAIN C433 00MOA22505020 00MOA22505020 ELECT CAP. 2.2UF 50V CCEA1HH2R2T
MAIN C465 00MDK96104300 00MDK96104300 CER. CAP. 0.1UF 50V K CCUS1H104KC
MAIN C466 00MOA10701620 00MOA10701620 ELECT CAP. 100UF 16V CCEA1CH101T
MAIN CN21 nsp nsp CONN. 19P WAFER FFC FCZ100E-19SSK CJP19GA117ZY
MAIN CN22 nsp nsp CONN. 7P WAFER CARD CABLE CJP07GB113ZY
MAIN CN23 nsp nsp CONN. 5P STRAIGHT 20017WS-05 CJP05GA19ZY
MAIN CN31 nsp nsp CONN. 5P STRAIGHT 20017WS-05 CJP05GA19ZY
MAIN CN32 nsp nsp CONN. 6P STRAIGHT 20017WS-06 CJP06GA19ZY
MAIN CN33 nsp nsp CONN. 16P WAFER FFC FCZ100E-16SSK CJP16GA117ZY
MAIN CN42 nsp nsp #N/A LOCKINGTYPE,STRAIGHTWAFER, 2MM CJP13GI236ZW
MAIN CN43 nsp nsp WAFER LOCKINGTYPE,STRAIGHTWAFER, 2.5MM CJP05GI237ZW
MAIN CN44 nsp nsp WAFER LOCKINGTYPE,STRAIGHTWAFER, 2.5MM CJP05GI237ZW
MAIN CN45 nsp nsp WAFER LOCKINGTYPE,STRAIGHTWAFER, 2MM CJP13GI236ZW
MAIN D201 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN D202 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN D203 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN D204 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN D205 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN D206 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN D207 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN D301 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN D401 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN D431 90M-HD302440R 90M-HD302440R ZENER DIODE ZJ4.7B 1/2W CVDZJ4.7BT
MAIN D432 90M-HD201750R 90M-HD201750R DIODE 1N4003 CVD1N4003SRT
MAIN D434 90M-HD302460R 90M-HD302460R ZENER DIODE ZJ5.6B 1/2W CVDZJ5.6BT
MAIN D435 00MHZ21303210 00MHZ21303210 DIODE 1SS355 CVD1SS355T
MAIN IC11 245710006603S 245710006603S IC UPD63901GJ(A)-301-8EN-A CVI245710006603SM
MAIN IC12 90M-HC109290R 90M-HC109290R IC TC74VHC157FT HVITC74VHC157FT
MAIN IC18 90M-HC900150R 90M-HC900150R IC KIA1117S/F33 REGULATOR(SOT-223) CVIKIA1117S33
MAIN IC21 943243007230M 943243007230M U-PRO I.C,FLASHU-COM CD6003 CVIT5CC1 CVIT5CC1
MAIN IC22 943236000650S 943236000650S IC AT24C04BN-SH-B CVIAT24C04BNSHB
MAIN IC23 943239007240M 943239007240M IC I.C,RESET2.8V(50ms,C-MOS,SOT23-5P) CVIS80128ALMCJANT2
MAIN IC26 943239007250M 943239007250M IC I.C,CURRENTLIMITER(500MA,SOT-23-5) CVIRT9702PB
MAIN IC27 943239007260M 943239007260M IC
I.C,CPCHIP(MF134IS2161,20P,FROMMARANTZ) CVI236710022502S_M
MAIN IC29 943231002450S 943231002450S IC KIA1117S18-RTK/ CVIKIA1117S18
MAIN IC30 943235002460S 943235002460S IC CDCE913PWR CVICDCE913PWR
MAIN IC31 943239007270M 943239007270M IC I.C,CDDSP(VER-007,LQFP-100P) CVITC94A70FG-007
MAIN IC32 90M-HC109470R 90M-HC109470R IC TA2125AFG HVITA2125AFG
MAIN IC36 90M-HC900150R 90M-HC900150R IC KIA1117S/F33 REGULATOR(SOT-223) CVIKIA1117S33
MAIN IC37 90M-HC900160R 90M-HC900160R IC LM1117S15 REGULATOR(SOT-223) CVIKIA1117S15
MAIN IC61 90M-HC900150R 90M-HC900150R IC KIA1117S/F33 REGULATOR(SOT-223) CVIKIA1117S33
MAIN JK41 90M-YT005310R 90M-YT005310R OPT. CONN. TOTX177L HJSTOTX177L
MAIN JK42 943646000840S 943646000840S TERMINAL CINCH 1P JACK BLACK CJJ4M056W
MAIN JK43 90M-YT003120R 90M-YT003120R TERMINAL CINCH 2P JE0200598N CJJ4N036Z
MAIN L161 90M-FN000260R 90M-FN000260R EMI FILTER HU-1H3216-121 HLZ91002Z
MAIN L162 90M-FN000260R 90M-FN000260R EMI FILTER HU-1H3216-121 HLZ91002Z
MAIN L181 90M-FN000260R 90M-FN000260R EMI FILTER HU-1H3216-121 HLZ91002Z
MAIN L201 90M-FC900380R 90M-FC900380R FERRITE CORE FB 2012(0805)600E 1.5A POWER CLZ9R001Z
MAIN L251 90M-FN000260R 90M-FN000260R EMI FILTER HU-1H3216-121 HLZ91002Z
MAIN L252 90M-FN000260R 90M-FN000260R EMI FILTER HU-1H3216-121 HLZ91002Z
MAIN L301 90M-FN000260R 90M-FN000260R EMI FILTER HU-1H3216-121 HLZ91002Z
MAIN L302 90M-FN000260R 90M-FN000260R EMI FILTER HU-1H3216-121 HLZ91002Z
MAIN L303 nsp nsp CHIP INDUCT. FI-C3216-103KJT HLQ09E100KRZ
MAIN L401 90M-FN000260R 90M-FN000260R EMI FILTER HU-1H3216-121 HLZ91002Z
MAIN Q202 90M-HX600010R 90M-HX600010R
CHIP TRS. KRA102S HVTKRA102S
MAIN Q203 90M-HX600010R 90M-HX600010R CHIP
TRS. KRA102S HVTKRA102S
MAIN Q301 90M-HX600020R 90M-HX600020R CHIP TRS. KTA1504S Y RTK HVTKTA1504SYRTK
MAIN Q302 90M-HX800090R 90M-HX800090R CHIP TRS. KRC111S HVTKRC111S
MAIN Q303 90M-HX800090R 90M-HX800090R CHIP TRS. KRC111S HVTKRC111S
MAIN Q401 90M-HX800100R 90M-HX800100R CHIP TRS. KTC3875S Y RTK HVTKTC3875SYRTK
MAIN Q402 90M-HX800100R 90M-HX800100R CHIP TRS. KTC3875S Y RTK HVTKTC3875SYRTK
MAIN Q431 00MHT600111B0 00MHT600111B0 TRS. KTA1267Y HVTKTA1267YT
MAIN Q432 90M-HX800090R 90M-HX800090R CHIP TRS. KRC111S HVTKRC111S
MAIN Q433 90M-HX800090R 90M-HX800090R CHIP TRS. KRC111S HVTKRC111S
MAIN Q434 00MHT30001000 00MHT30001000 TRS. KTC3199Y HVTKTC3199YT
MAIN R101 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R102 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R103 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R104 00MNN05220610 00MNN05220610 CHIP RES. 22 OHM 1/10W J CRJ10DJ220T
MAIN R105 00MNN05103610 00MNN05103610 CHIP RES. 10K OHM 1/10W J CRJ10DJ103T
MAIN R106 00MNN05103610 00MNN05103610 CHIP RES. 10K OHM 1/10W J CRJ10DJ103T
MAIN R108 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R109 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R110 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R111 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
