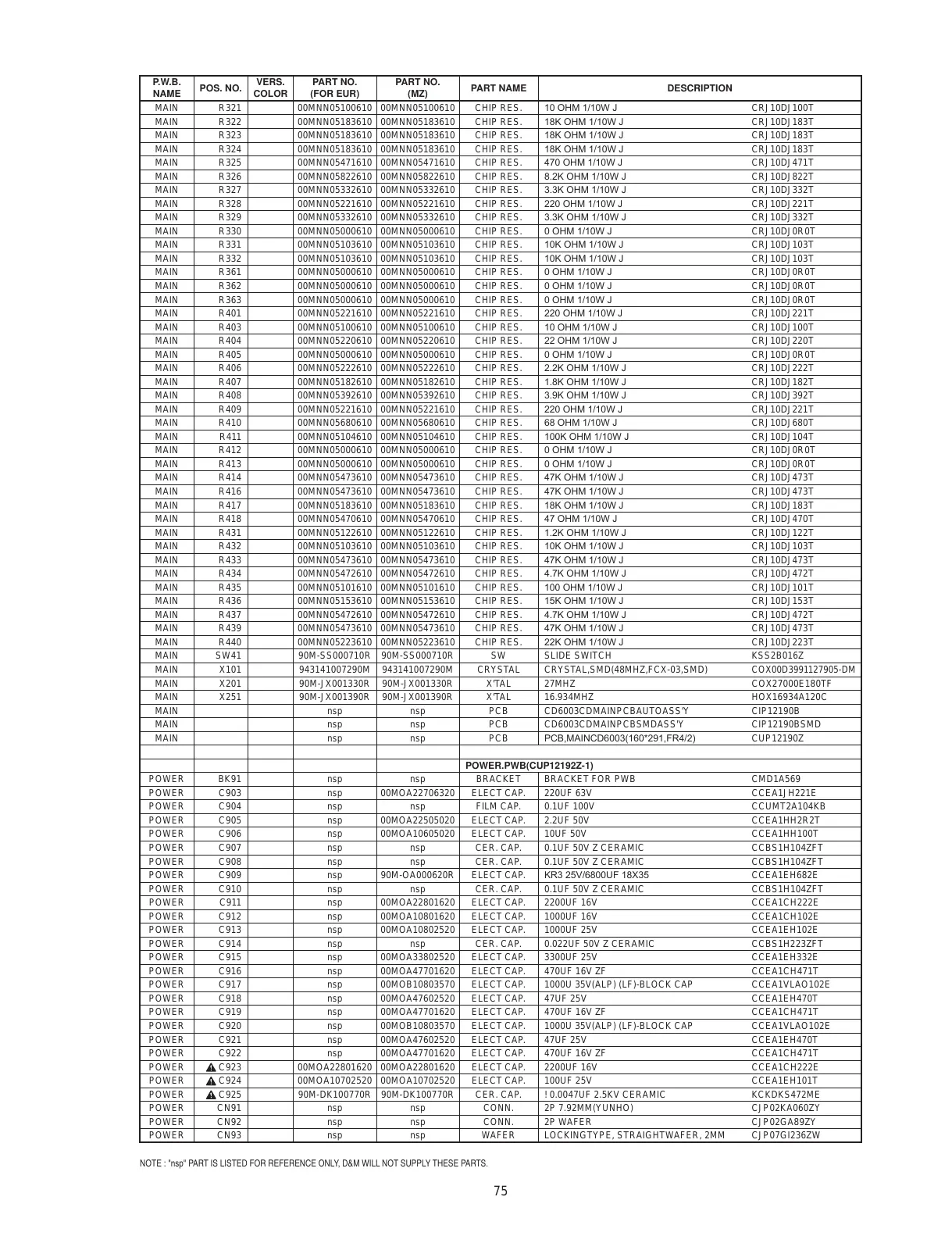

Marantz CD6003 - Page 54

75
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, D&M WILL NOT SUPPLY THESE PARTS.
P.W.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MZ)
PART NAME DESCRIPTION
MAIN R321 00MNN05100610 00MNN05100610 CHIP RES. 10 OHM 1/10W J CRJ10DJ100T
MAIN R322 00MNN05183610 00MNN05183610 CHIP RES. 18K OHM 1/10W J CRJ10DJ183T
MAIN R323 00MNN05183610 00MNN05183610 CHIP RES. 18K OHM 1/10W J CRJ10DJ183T
MAIN R324 00MNN05183610 00MNN05183610 CHIP RES. 18K OHM 1/10W J CRJ10DJ183T
MAIN R325 00MNN05471610 00MNN05471610 CHIP RES. 470 OHM 1/10W J CRJ10DJ471T
MAIN R326 00MNN05822610 00MNN05822610 CHIP RES. 8.2K OHM 1/10W J CRJ10DJ822T
MAIN R327 00MNN05332610 00MNN05332610 CHIP RES. 3.3K OHM 1/10W J CRJ10DJ332T
MAIN R328 00MNN05221610 00MNN05221610 CHIP RES. 220 OHM 1/10W J CRJ10DJ221T
MAIN R329 00MNN05332610 00MNN05332610 CHIP RES. 3.3K OHM 1/10W J CRJ10DJ332T
MAIN R330 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R331 00MNN05103610 00MNN05103610 CHIP RES. 10K OHM 1/10W J CRJ10DJ103T
MAIN R332 00MNN05103610 00MNN05103610 CHIP RES. 10K OHM 1/10W J CRJ10DJ103T
MAIN R361 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R362 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R363 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R401 00MNN05221610 00MNN05221610 CHIP RES. 220 OHM 1/10W J CRJ10DJ221T
MAIN R403 00MNN05100610 00MNN05100610 CHIP RES. 10 OHM 1/10W J CRJ10DJ100T
MAIN R404 00MNN05220610 00MNN05220610 CHIP RES. 22 OHM 1/10W J CRJ10DJ220T
MAIN R405 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R406 00MNN05222610 00MNN05222610 CHIP RES. 2.2K OHM 1/10W J CRJ10DJ222T
MAIN R407 00MNN05182610 00MNN05182610 CHIP RES. 1.8K OHM 1/10W J CRJ10DJ182T
MAIN R408 00MNN05392610 00MNN05392610 CHIP RES. 3.9K OHM 1/10W J CRJ10DJ392T
MAIN R409 00MNN05221610 00MNN05221610 CHIP RES. 220 OHM 1/10W J CRJ10DJ221T
MAIN R410 00MNN05680610 00MNN05680610 CHIP RES. 68 OHM 1/10W J CRJ10DJ680T
MAIN R411 00MNN05104610 00MNN05104610 CHIP RES. 100K OHM 1/10W J CRJ10DJ104T
MAIN R412 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R413 00MNN05000610 00MNN05000610 CHIP RES. 0 OHM 1/10W J CRJ10DJ0R0T
MAIN R414 00MNN05473610 00MNN05473610 CHIP RES. 47K OHM 1/10W J CRJ10DJ473T
MAIN R416 00MNN05473610 00MNN05473610 CHIP RES. 47K OHM 1/10W J CRJ10DJ473T
MAIN R417 00MNN05183610 00MNN05183610 CHIP RES. 18K OHM 1/10W J CRJ10DJ183T
MAIN R418 00MNN05470610 00MNN05470610 CHIP RES. 47 OHM 1/10W J CRJ10DJ470T
MAIN R431 00MNN05122610 00MNN05122610 CHIP RES. 1.2K OHM 1/10W J CRJ10DJ122T
MAIN R432 00MNN05103610 00MNN05103610 CHIP RES. 10K OHM 1/10W J CRJ10DJ103T
MAIN R433 00MNN05473610 00MNN05473610 CHIP RES. 47K OHM 1/10W J CRJ10DJ473T
MAIN R434 00MNN05472610 00MNN05472610 CHIP RES. 4.7K OHM 1/10W J CRJ10DJ472T
MAIN R435 00MNN05101610 00MNN05101610 CHIP RES. 100 OHM 1/10W J CRJ10DJ101T
MAIN R436 00MNN05153610 00MNN05153610 CHIP RES. 15K OHM 1/10W J CRJ10DJ153T
MAIN R437 00MNN05472610 00MNN05472610 CHIP RES. 4.7K OHM 1/10W J CRJ10DJ472T
MAIN R439 00MNN05473610 00MNN05473610 CHIP RES. 47K OHM 1/10W J CRJ10DJ473T
MAIN R440 00MNN05223610 00MNN05223610 CHIP RES. 22K OHM 1/10W J CRJ10DJ223T
MAIN SW41 90M-SS000710R 90M-SS000710R SW SLIDE SWITCH KSS2B016Z
MAIN X101 943141007290M 943141007290M CRYSTAL CRYSTAL,SMD(48MHZ,FCX-03,SMD)
COX00D3991127905-DM
MAIN X201 90M-JX001330R 90M-JX001330R X'TAL 27MHZ COX27000E180TF
MAIN X251 90M-JX001390R 90M-JX001390R X'TAL 16.934MHZ HOX16934A120C
MAIN nsp nsp PCB CD6003CDMAINPCBAUTOASS'Y CIP12190B
MAIN nsp nsp PCB CD6003CDMAINPCBSMDASS'Y CIP12190BSMD
MAIN nsp nsp PCB PCB,MAINCD6003(160*291,FR4/2) CUP12190Z
POWER.PWB(CUP12192Z-1)
POWER BK91 nsp nsp BRACKET BRACKET FOR PWB CMD1A569
POWER C903 nsp 00MOA22706320 ELECT CAP. 220UF 63V CCEA1JH221E
POWER C904 nsp nsp FILM CAP. 0.1UF 100V CCUMT2A104KB
POWER C905 nsp 00MOA22505020 ELECT CAP. 2.2UF 50V CCEA1HH2R2T
POWER C906 nsp 00MOA10605020 ELECT CAP. 10UF 50V CCEA1HH100T
POWER C907 nsp nsp CER. CAP. 0.1UF 50V Z CERAMIC CCBS1H104ZFT
POWER C908 nsp nsp CER. CAP. 0.1UF 50V Z CERAMIC CCBS1H104ZFT
POWER C909 nsp 90M-OA000620R ELECT CAP. KR3 25V/6800UF 18X35 CCEA1EH682E
POWER C910 nsp nsp CER. CAP. 0.1UF 50V Z CERAMIC
CCBS1H104ZFT
POWER C911 nsp
00MOA22801620 ELECT CAP. 2200UF 16V CCEA1CH222E
POWER C912 nsp 00MOA10801620 ELECT CAP. 1000UF 16V CCEA1CH102E
POWER C913 nsp 00MOA10802520 ELECT CAP. 1000UF 25V CCEA1EH102E
POWER C914 nsp nsp CER. CAP. 0.022UF 50V Z CERAMIC CCBS1H223ZFT
POWER C915 nsp 00MOA33802520 ELECT CAP. 3300UF 25V CCEA1EH332E
POWER C916 nsp 00MOA47701620 ELECT CAP. 470UF 16V ZF CCEA1CH471T
POWER C917 nsp 00MOB10803570 ELECT CAP. 1000U 35V(ALP) (LF)-BLOCK CAP CCEA1VLAO102E
POWER C918 nsp 00MOA47602520 ELECT CAP. 47UF 25V CCEA1EH470T
POWER C919 nsp 00MOA47701620 ELECT CAP. 470UF 16V ZF CCEA1CH471T
POWER C920 nsp 00MOB10803570 ELECT CAP. 1000U 35V(ALP) (LF)-BLOCK CAP CCEA1VLAO102E
POWER C921 nsp 00MOA47602520 ELECT CAP. 47UF 25V CCEA1EH470T
POWER C922 nsp 00MOA47701620 ELECT CAP. 470UF 16V ZF CCEA1CH471T
POWER
C923 00MOA22801620 00MOA22801620 ELECT CAP. 2200UF 16V CCEA1CH222E
POWER
C924 00MOA10702520 00MOA10702520 ELECT CAP. 100UF 25V CCEA1EH101T
POWER
C925 90M-DK100770R 90M-DK100770R CER. CAP. ! 0.0047UF 2.5KV CERAMIC KCKDKS472ME
POWER CN91 nsp nsp CONN. 2P 7.92MM(YUNHO) CJP02KA060ZY
POWER CN92 nsp nsp CONN. 2P WAFER CJP02GA89ZY
POWER CN93 nsp nsp WAFER LOCKINGTYPE, STRAIGHTWAFER, 2MM CJP07GI236ZW
