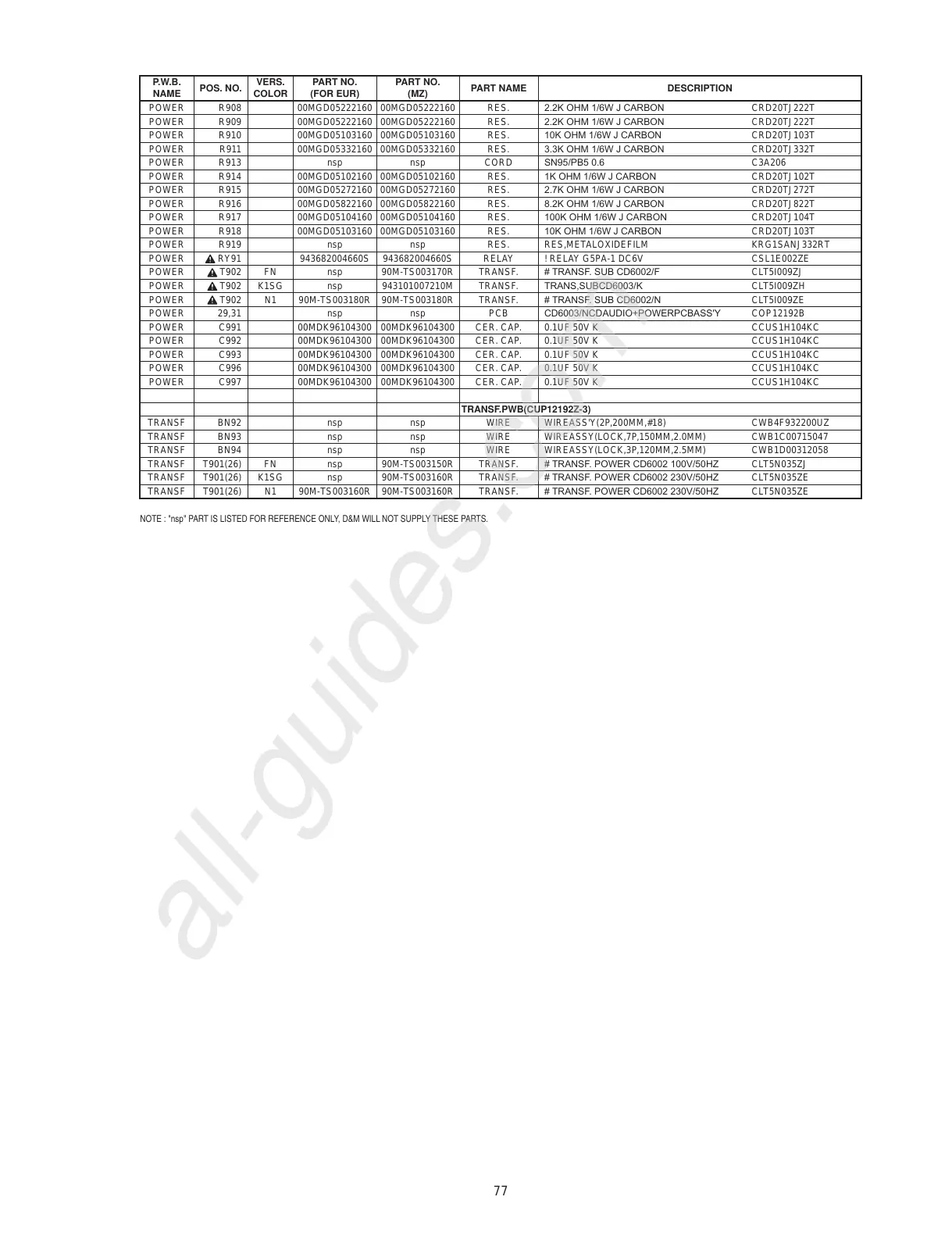

Marantz CD6003 - Page 56

77
P.W.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MZ)
PART NAME DESCRIPTION
POWER R908 00MGD05222160 00MGD05222160 RES. 2.2K OHM 1/6W J CARBON CRD20TJ222T
POWER R909 00MGD05222160 00MGD05222160 RES. 2.2K OHM 1/6W J CARBON CRD20TJ222T
POWER R910 00MGD05103160 00MGD05103160 RES. 10K OHM 1/6W J CARBON CRD20TJ103T
POWER R911 00MGD05332160 00MGD05332160 RES. 3.3K OHM 1/6W J CARBON CRD20TJ332T
POWER R913 nsp nsp CORD SN95/PB5 0.6 C3A206
POWER R914 00MGD05102160 00MGD05102160 RES. 1K OHM 1/6W J CARBON CRD20TJ102T
POWER R915 00MGD05272160 00MGD05272160 RES. 2.7K OHM 1/6W J CARBON CRD20TJ272T
POWER R916 00MGD05822160 00MGD05822160 RES. 8.2K OHM 1/6W J CARBON CRD20TJ822T
POWER R917 00MGD05104160 00MGD05104160 RES. 100K OHM 1/6W J CARBON CRD20TJ104T
POWER R918 00MGD05103160 00MGD05103160 RES. 10K OHM 1/6W J CARBON CRD20TJ103T
POWER R919 nsp nsp RES. RES,METALOXIDEFILM KRG1SANJ332RT
POWER
RY91 943682004660S 943682004660S RELAY ! RELAY G5PA-1 DC6V CSL1E002ZE
POWER
T902 FN nsp 90M-TS003170R TRANSF. # TRANSF. SUB CD6002/F CLT5I009ZJ
POWER
T902 K1SG nsp 943101007210M TRANSF. TRANS,SUBCD6003/K CLT5I009ZH
POWER
T902 N1 90M-TS003180R 90M-TS003180R TRANSF. # TRANSF. SUB CD6002/N CLT5I009ZE
POWER 29,31 nsp nsp PCB CD6003/NCDAUDIO+POWERPCBASS'Y COP12192B
POWER C991 00MDK96104300 00MDK96104300 CER. CAP. 0.1UF 50V K CCUS1H104KC
POWER C992 00MDK96104300 00MDK96104300 CER. CAP. 0.1UF 50V K CCUS1H104KC
POWER C993 00MDK96104300 00MDK96104300 CER. CAP. 0.1UF 50V K CCUS1H104KC
POWER C996 00MDK96104300 00MDK96104300 CER. CAP. 0.1UF 50V K CCUS1H104KC
POWER C997 00MDK96104300 00MDK96104300 CER. CAP. 0.1UF 50V K CCUS1H104KC
TRANSF.PWB(CUP12192Z-3)
TRANSF BN92 nsp nsp WIRE WIREASS'Y(2P,200MM,#18) CWB4F932200UZ
TRANSF BN93 nsp nsp WIRE WIREASSY(LOCK,7P,150MM,2.0MM) CWB1C00715047
TRANSF BN94 nsp nsp WIRE WIREASSY(LOCK,3P,120MM,2.5MM) CWB1D00312058
TRANSF T901(26) FN nsp 90M-TS003150R TRANSF. # TRANSF. POWER CD6002 100V/50HZ CLT5N035ZJ
TRANSF T901(26) K1SG nsp 90M-TS003160R TRANSF. # TRANSF. POWER CD6002 230V/50HZ CLT5N035ZE
TRANSF T901(26) N1 90M-TS003160R 90M-TS003160R TRANSF. # TRANSF. POWER CD6002 230V/50HZ CLT5N035ZE
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, D&M WILL NOT SUPPLY THESE PARTS.
