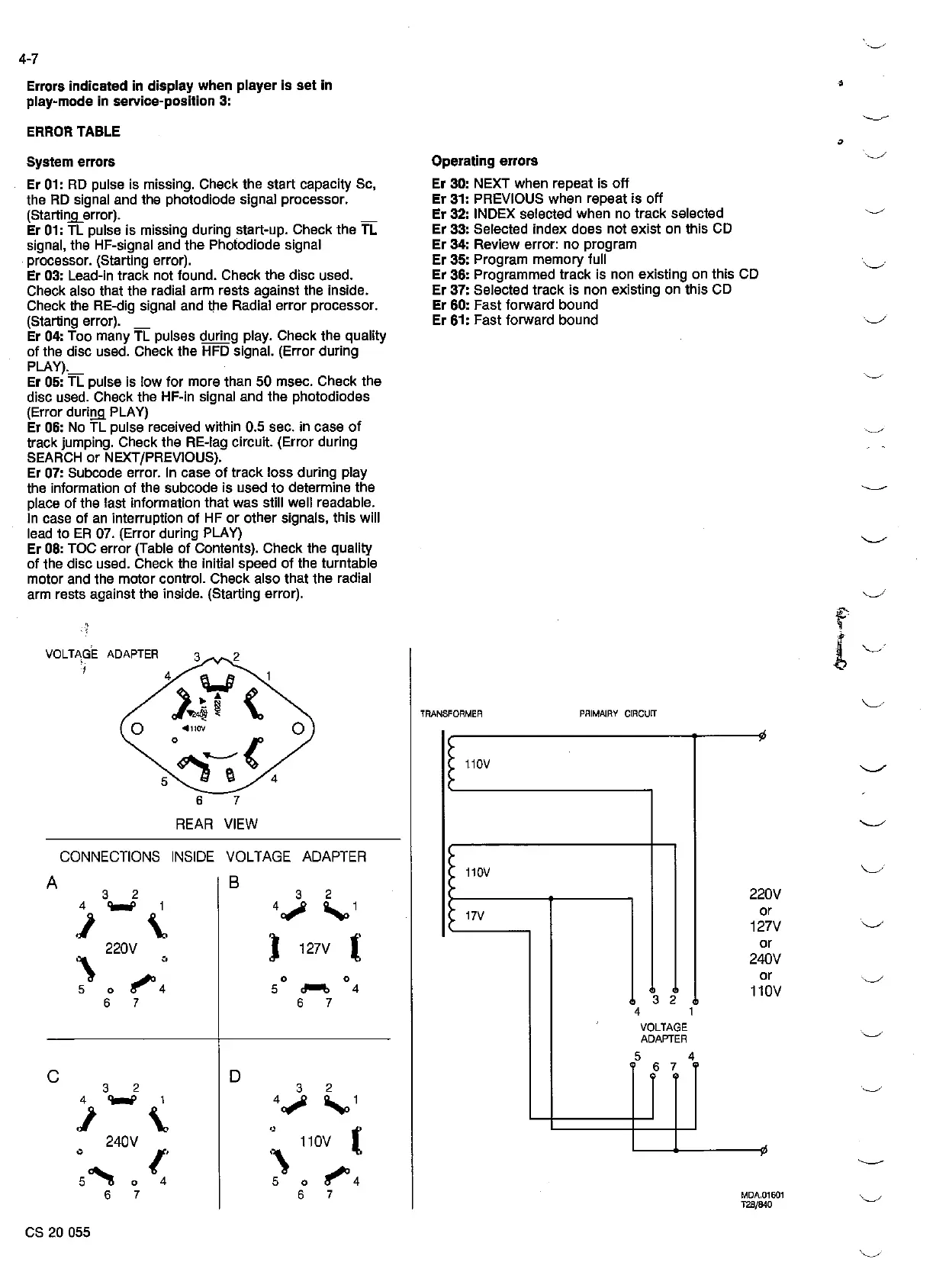

4-7
Errors indicated
in
display when player is set
in
play-mode
in
service-position 3:
ERRORTABLE
System errors
Er 01:
RD
pulse is missing. Check the start capacity
Se,
the
RD
signal and the photodiode signal processor.
(Startin_g_error).
_
Er 01: TL pulse is missing during start-up. Check the
TL
signal, the HF-signal and the Photodiode signal
processor. (Starting error).
Er 03: Lead-in track not found. Check the disc used.
Check also that the radial arm rests against the inside.
Check the RE-dig signal and
IJ,e
Radial error processor.
(Starting error). _
Er
04:
Too many
TL
pulses during play. Check the quality
of the disc used. Check the
HFD
signal. (Error during
PLAY)._
Er
05: TL pulse
is
low
lor
more than 50 msec. Check the
disc used. Check the HF-in signal and the photodiodes
(Error duri!!9. PLAY)
Er
06:
No
TL pulse received within 0.5 sec. in case
of
track jumping. Check the RE-lag circuit. (Error during
SEARCH
or
NEXT/PREVIOUS).
Er 07: Subcode error.
In
case
of
track loss during play
the information
of
the subcode is used
to
determine the
place of the last information that was still well readable.
In
case
of
an
interruption
of
HF
or
other signals, this will
lead
to
ER
07.
(Error during PLAY)
Er 08: TOC error (Table
of
Contents). Check the quality
of
the disc used. Check the initial speed
of
the turntable
motor and the motor control. Check also that the radial
arm rests against the inside. ($tarting error).
VOLTAGE
ADAPTER
3
2
'
4 1
u
~~,
{
0
◄
110V
0
0 (
5~-;
4
CONNECTIONS
A
3 2
4
......
1
,J
\,
220V
'\
,,
,,.
4
5
0
6
7
C
3
2
4
......
1
J
\,
240V
0
,.
5"'
0
4
6
7
es
20
055
6 7
REAR
VIEW
INSIDE
VOLTAGE ADAPTER
B
D
3 2
4"
'°1
)
127V
(
0 0
5
""'""'
4
6
7
3 2
4.,
'°1
,,
'
5
110V (
o
,,.
4
6 7
Operating errors
Er 30:
NEXT when repeat
is
off
Er 31: PREVIOUS when repeat is
off
Er 32: INDEX selected when no track selected
Er 33: Selected index does not exist on this
CD
Er 34: Review error: no program
Er 35: Program memory full
Er 36: Programmed track is non existing on this
CD
Er 37: Selected track is non existing on this
CD
Er 60: Fast forward bound
Er 61: Fast forward bound
TRANSFORMER
PAIMAIRY
CIRCUIT
•
•
110V
•
•
.
:
110V
•
►
17V
•
3 2
4
VOLTAGE
ADAPTER
5
6
7
1
4
.
~
22
0
ov
r
7V
r
ov
r
ov
12
0
24
0
11
'
MDA.01601
T28/840
•
•
'-/
e
~
i
"-'
'-J
