Marantz DR17 - Exploded View and Parts List

2-7 2-8

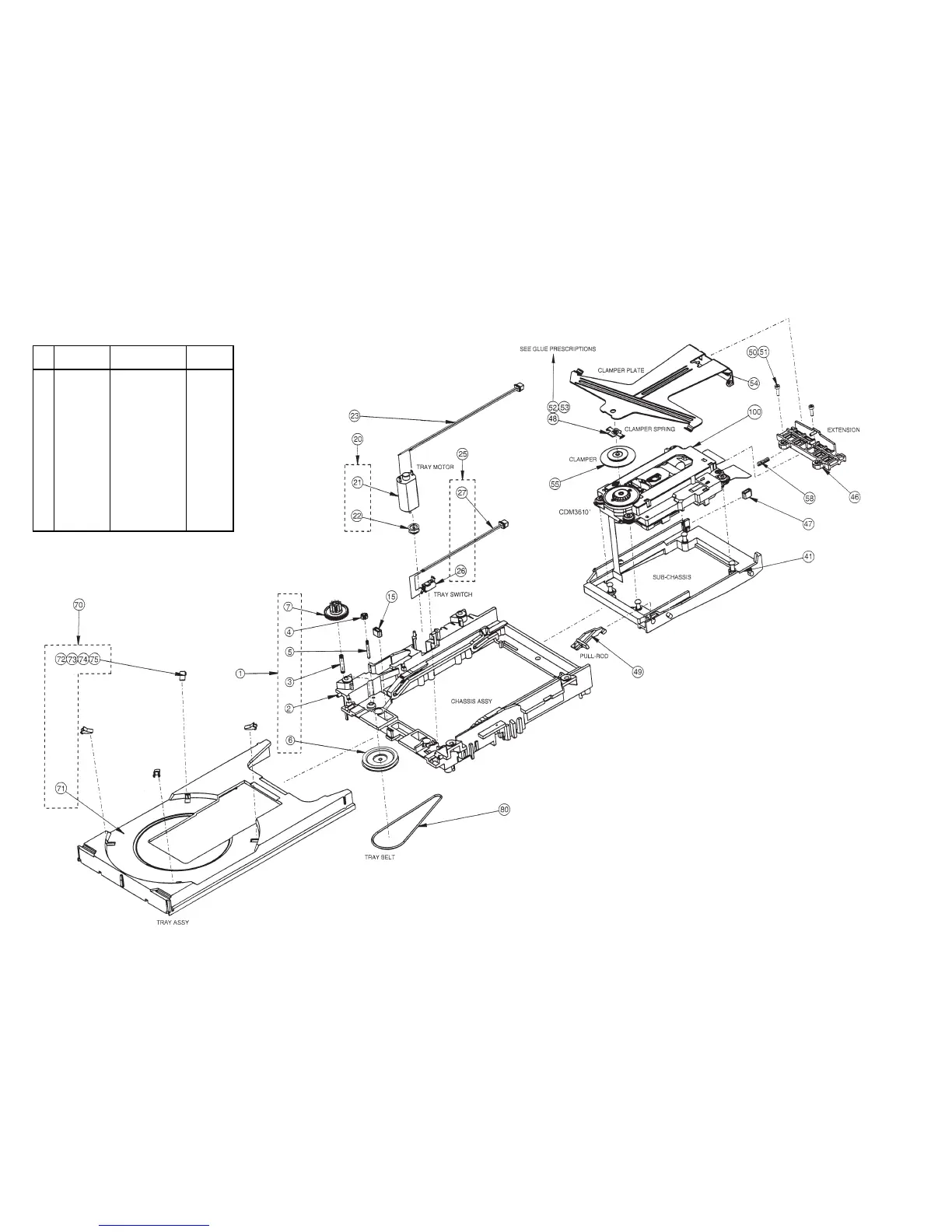

2.3 EXPLODED VIEW AND PARTS LIST
POS.
NO.
PART NO.
(PCS)
DESCRIPTION
PART NO.
(MJI)
1 4822 464 51086 CHASSIS ASSY QP46451086
7 4822 522 10651 TRAY GEAR QP52210651
15 4822 325 60379 DAMPING GROMMET QP32560379
20 4822 361 21758 TRAY MOTOR ASSY QP36121758
25 4822 276 13608 SWITCH ASSY QP27613608
41 4822 464 51084 SUB-CHASSIS QP46451084
46 4822 492 71688 EXTENSION QP49271688
47 4822 325 60379 DAMPING GROMMET QP32560379
48 4822 492 71686 CLAMPER SPRING QP49271686
49 4822 535 93546 PULL-ROD QP53593546
54 4822 466 11739 CLAMPER PLATE QP46611739
55 4822 532 52676 CLAMPER QP53252676
58 4822 492 52426 COMPRESSION
SPRING
QP49252426
70 4822 418 10291 TRAY ASSY (BLACK) QP41810291
80 4822 358 10149 BELT QP35810149
