Marantz DR17 - Wiring Diagram

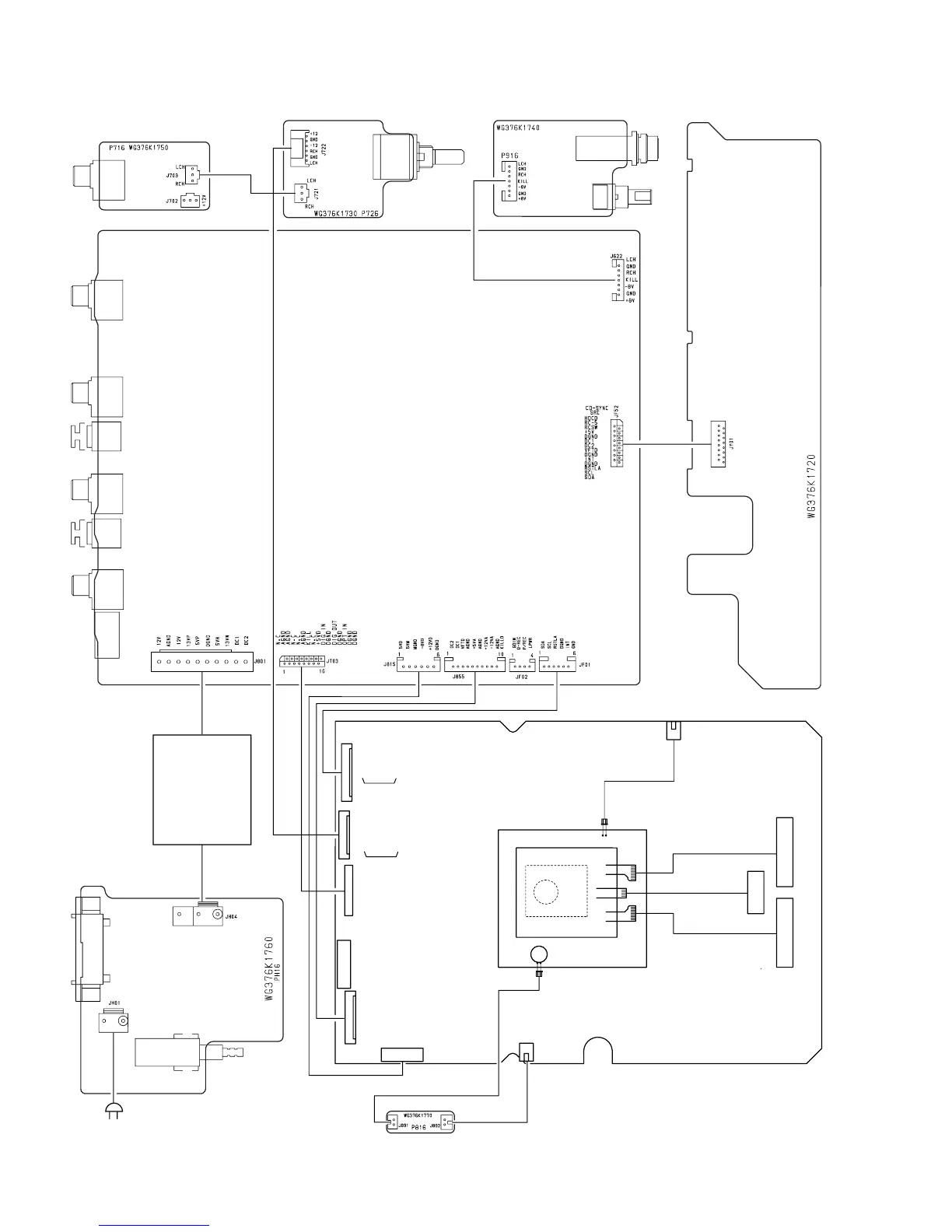

1.9 WIRING DIAGRAM
1-22
LOADER BOARD
POWER TRANSFORMER
1290
1101
1102
1440
1430
1420
1400
1410
1330
1104
1103
1 SDA! 2 SCL! 3 RSTIN! 4 GROUND 5 Interrupt! 6 GROUND 7 VFTD! 8 DC2! 9 DC1! 10 GROUND 11 +5Vb!
1 LEFTFLEV! 2 GROUND 3 RIGHTFLEV! 4 -12Vb! 5 GROUND 6 +12Vb! 7 RIGHTTLEV! 8 GROUND 9 LEFTTLEV!
1 RIGHTOUT! 2 GROUND 3 GROUND 4 LEFTIN! 5 LEFTOUT! 6 GROUND 7 KILLBUF! 8 RIGHTIN! 9 +5Vb! 10 DIGIN! 11 GROUND 12 DIGOUT! 13 GROUND 14 OPTIN! 15 GROUND 16 GROUND
1 LEFTOUT! 2 GROUND 3 RIGHTOUT! 4 KILL! 5 -12Vb! 6 GROUND 7 +12Vb!
1 DC2! 2 DC1! 3 VFTD! 4 GROUND 5 +5Va! 6 GROUND 7 +12Vb! 8 -12Vb! 9 GROUND 10 KILL!
1 +5Vb! 2 +5VM! 3 GROUND 4 -8V! 5 +12Va! 6 GROUND
1. TRAY+ 2. TRAY-
-8V FSM GND GND EECL +4V SWRT EFMM EEDA GND +5Vb +5Vb DADI FS LDON NRSMP LWRT DALD DACL9
8
10
6 5 4 3 2 1 7
19 18 20 16 15 14 13 12 11 17 21 22
EFMCLK GND GND
FOC- FOC+ SL- SL+
MIRN RAD+ +5Vb BARCODE TLN REN +12Va HMSW FEN RAD- SUBSTRAAT CALF A2A A1A GND9
8
10
6 5 4 3 2 1 7
19 18 20 16 15 14 13 12 11 17 21 22
GND CA PP
GND Vp VCOIL UCOIL Up Vm Um WCOIL9
8 6 5 4 3 2 1 7
Wm +5V Wp
10 11
2. GND 1. TRAY SW
1
11
1
9
1
16
1
7
1
10
1 6
TRAY
MOT
CDM3610'
SERVO
TRAY
