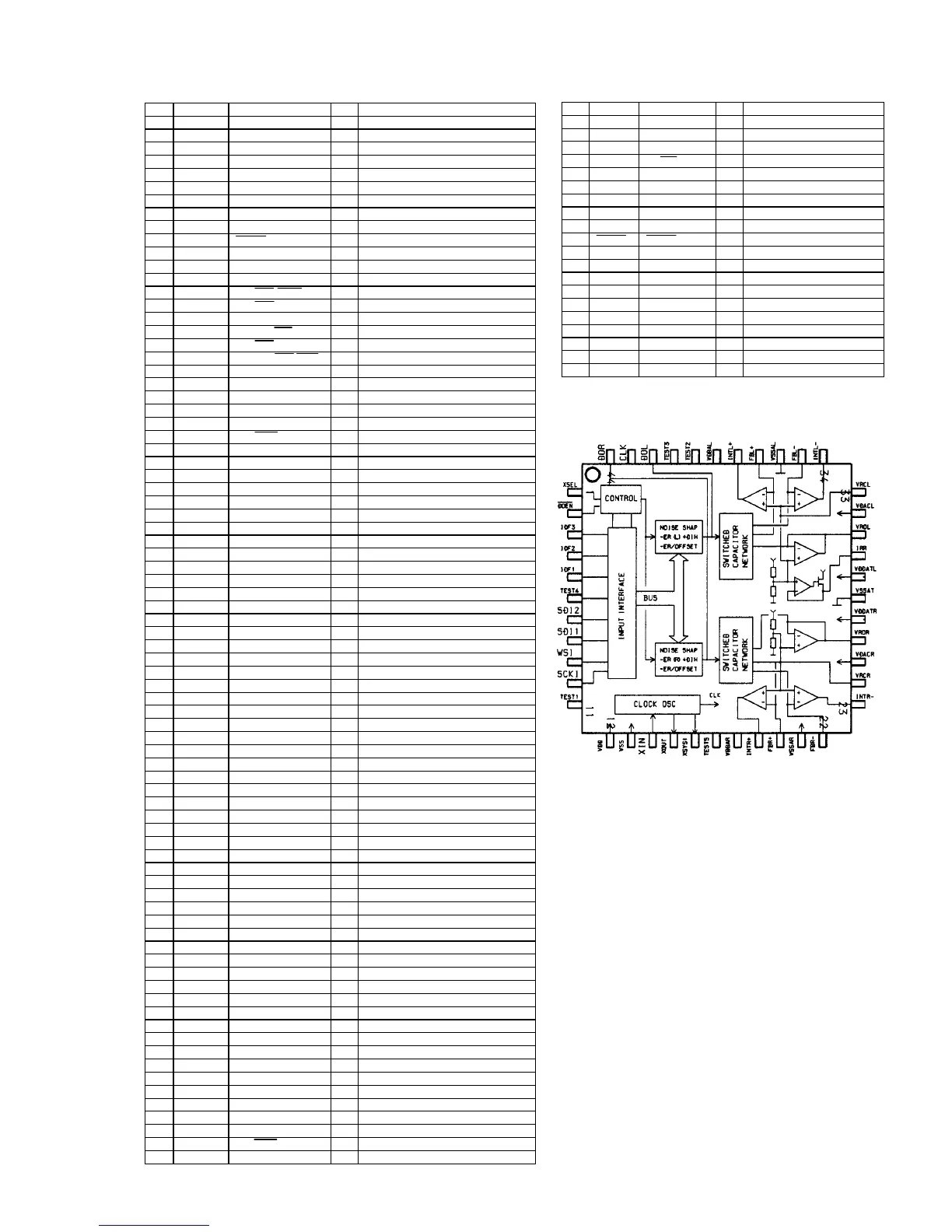

PIN SYNBOL PORT NAME I/O FUNCTION
1 OPEN P02/SI1 -
2 OPEN P03 -
3 OPEN P04 -
4 OPEN P05 -
5 OPEN P06 -
6 OPEN P07 -
7 VSS1 VSS - Ground
8 XOUT XOUT O X'tal output
9 XIN XIN I X'tal input
10 RESETIN RESET I/O Reset input
11 OPEN P22/XOUT -
12 OPEN P21/XINT -
13 TEST1 TEST I Ground
14 OPEN P20/INT5/STOP -
15 INT0 P10/INT0 I Interrupt
16 INT1 P11/INT1 I IR interrupt
17 OPEN P12/TC2/PPG -
18 OPEN P13/DVO -
19 OPEN P14/TC4/PDO/PWM -
20 OPEN P15/INT3/TC1 -
21 OPEN P16/INT2 -
22 IR P17/INT4/TC3 I IR data input
23 SCL P30/SCL/SI0 I Serial clock input
24 SDA P31/SDA/SO0 I Serial data input
25 OPEN P32/SCK0 -
26 KSENS8 P40/AIN0 I Key sens
27 KSENS7 P41/AIN1 I Key sens
28 KSENS6 P42/AIN2 I Key sens
29 KSENS5 P43/AIN3 I Key sens
30 KSENS4 P44/AIN4 I Key sens
31 KSENS3 P45/AIN5 I Key sens
32 KSENS2 P46/AIN6 I Key sens
33 KSENS1 P47/AIN7 I Key sens
34 OPEN P50/AIN10 -
35 KSCAN3 P51/AIN11 O Key scan
36 KSCAN2 P52/AIN12 O Key scan
37 KSCAN1 P53/AIN13 O Key scan
38 VASS VASS - Ground
39 VAREF VAREF - +5V
40 VDD VDD - +5V
41 G13 P60/V0 O Grid output
42 G12 P61/V1 O Grid output
43 G11 P62/V2 O Grid output
44 G10 P63/V3 O Grid output
45 G9 P64/V4 O Grid output
46 G8 P65/V5 O Grid output
47 G7 P66/V6 O Grid output
48 G6 P67/V7 O Grid output
49 G5 P70/V8 O Grid output
50 G4 P71/V9 O Grid output
51 G3 P72/V10 O Grid output
52 G2 P73/V11 O Grid output
53 G1 P74/V12 O Grid output
54 OPEN P75/V13 -
55 OPEN P76/V14 -
56 OPEN P77/V15 -
57 P1 P80/V16 O Segment output
58 P2 P81/V17 O Segment output
59 P3 P82/V18 O Segment output
60 P4 P83/V19 O Segment output
61 P5 P84/V20 O Segment output
62 P6 P85/V21 O Segment output
63 P7 P86/V22 O Segment output
64 P8 P87/V23 O Segment output
65 P9 P90/V24 O Segment output
66 P10 P91/V25 O Segment output
67 P11 P92/V26 O Segment output
68 P12 P93/V27 O Segment output
69 P13 P94/V28 O Segment output
70 P14 P95/V29 O Segment output
71 P15 P96/V30 O Segment output
72 P16 P97/V31 O Segment output
73 OPEN PD0/V32 -
74 OPEN PD1/V33 -
75 OPEN PD2/V34 -
76 OPEN PD3/V35 -
77 OPEN PD4/V36 -
78 VKK VKK - Anode voltage for FTD
79 P0 P00/SCK1 I Ground
80 P1 P01/SI1 I Ground
PIN SYNBOL PORT NAM
E
I/O FUNCTION
1 OPEN KIO06 -
2 OPEN KIO07 -
3 KSENS S0 I Key sens
4 RCOUT S1/LED O Data output
5 OPEN REM -
6 VDD VDD - +2.7V
7 XOUT XOUT O Ground
8 XIN XIN I X'tal output
9 GND GND - X'tal input
10 RESET RESET I Reset input
11 OPEN KI0 -
12 OPEN KI1 -
13 OPEN KI2 -
14 OPEN KI3 -
15 OPEN KI/O0 -
16 OPEN KI/O1 -
17 OPEN KI/O2 -
18 OPEN KI/O3 -
19 KSCAN KI/O4 O Key scan
20 OPEN KI/O5 -
QY01 : uPD6134
QY01 : TMP87CH74F
Q520 : ASS7550AGP
1-21
