Marantz DV6001 - Specifi Cations

7Additional Information
57
English
Specifi cations
General
System
DVD-Video, DVD-Audio, DVD
±
R/RW, Super Audio
CD, Video CD, CD, MP3 fi les, JPEG fi les, DviX and
WMA
Power requirements (U.S.A.).................... 120 V, 60Hz
Power requirements (Europe)...........230 V, 50/60Hz
Power consumption................................................. 25 W
Power consumption in standby mode................0.8 W
Weight...................................................4 kg (8 lb 13 oz)
Dimensions ............. 440 (W) x 60 (H) x 319 (D) mm
(17.3 (W) x 2.4 (H) x 12.6 (D) in.)
Operating temperature
............................ +5 °C to +35 °C (+41 °F to +96 °F)
Operating humidity
....................................5 % to 85 % (no condensation)
S-Video output
Y (luminance) - Output level ...............1 Vp-p (75
Ω
)
C (color) - Output level................286 mVp-p (75
Ω
)
Jacks..............................................................S-VIDEO jack
Video output
Output level ............................................1 Vp-p (75
Ω
)
Jacks .................................................................... RCA jack
Component video output (Y, C
B
, C
R
)
Output level.....................................Y: 1.0 Vp-p (75
Ω
)
C
B
/P
B
, C
R
/P
R
: 0.7 Vp-p (75
Ω
)
Jacks .................................................................. RCA jacks
HDMI output
Output terminal .................................................... 19-pin

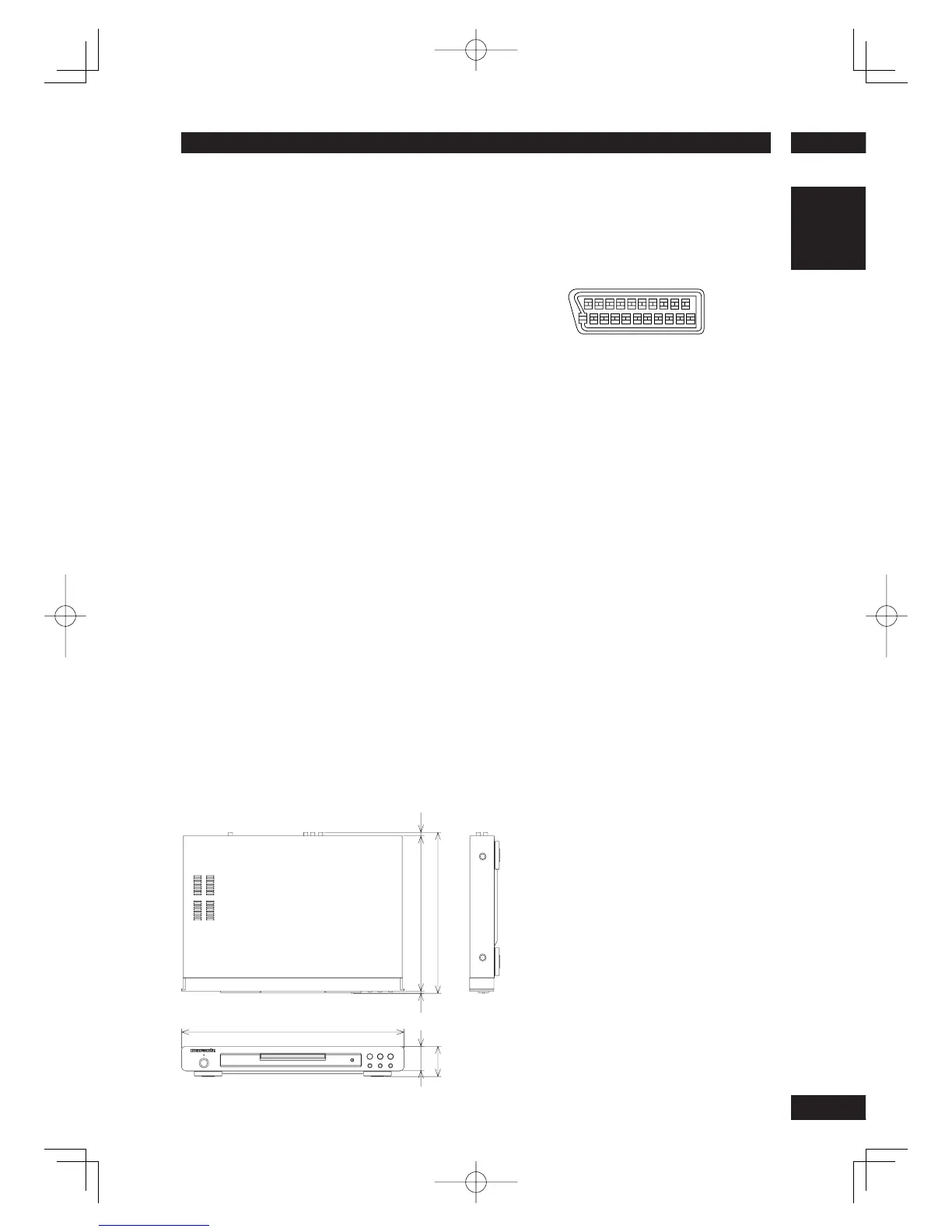

48
60
440
308
319
74
(mm)
PIN no.
1 Audio 2/R out 15 R out
3 Audio 1/L out 16 Blank
4 GND 17 GND
7 B out 19 Video out
8 Status 21 GND
11 G out
20 18 16 14 12 10 8 6 4 2
21 19 17 15 13 11 9 7 5 3 1
21-pin connector assignment
(Europe model only)
AV connector output ........................ 21-pin connector
This connector provides the video and audio signals
for con nec tion to a compatible color TV or monitor.
Audio output
Output level
During audio output................... 2 Vrms (1kHz, 0 dB)
Number of channels ..................................................2/6
Jacks .................................................................... RCA jack
Audio characteristics
Frequency response
............................... 4 Hz to 44 kHz (DVD fs: 96 kHz)
S/N ratio ...............................................................110 dB
Dynamic range ....................................................100 dB
To tal harmonic distortion.............................. 0.003 %
Wow and fl utter: Limit of measurement (
±
0.001 % W.
PEAK) or lower
Digital output
Coaxial digital output......................................RCA jack
Optical digital output................... Optical digital jack
Other terminals
Control in/out...................................................RCA jack
Flasher input...................................... Mini jack (3.5
ø
)
RS232 C ...........................................................................1
Accessories
Remote control .............................................................. 1
AAA/R03 dry cell batteries.........................................2
Audio/Video cable (yellow/red/white) ....................1
System control cable ....................................................1
Power cable.....................................................................1
User Guide (this manual)
Warranty card
Note: The specifi cations and design of this product are
subject to change without notice, due to improvement.
