Marantz DV7001 - Technical Specifications

1
General
System ...
DVD-Video, DVD Audio, DVD±R/RW, Super Audio CD,
Video CD, CD, MP3 files, JPEG files, DviX and WMA
Power requirements
F Version ............................................AC 100 V, 50/60 Hz
K Version ............................................AC 220 V, 50/60 Hz
N Version ............................................AC 230 V, 50/60 Hz
U Version .................................................AC 120 V, 60 Hz
Power consumption ........................................................27 W
Power consumption in standby mode ............................0.8 W
Weight .....................................................7.3 kg (16 lb 15 oz)
Dimensions ....................... 440 (W) x 128 (D) x 3332 (H) mm
(17.3 (W) x 5 (D) x 13.1 (H) in.)
Operating temperature ...+ 5 °C to + 35 °C (+ 41 °F to + 96 °F)
Operating humidity ................5 % to 85 % (no condensation)
S-Video output
Y (luminance) - Output level ............................. 1 Vp-p (75
Ω
)
C (color) - Output level ...............................286 mVp-p (75
Ω
)
Jacks ...............................................................S-VIDEO jack
Video output
Output level ....................................................... 1 Vp-p (75
Ω
)
Jacks .......................................................................RCA jack
Component video output (Y, C
B
, C
R
)
Output level ...............................................Y : 1.0 Vp-p (75
Ω
)
C
B
, C
R
: 0.7 Vp-p (75
Ω
)
Jacks .......................................................................RCA jack
D1/D2 video output (Y, C
B
, C
R
) (/F : Japan model only)
Output level ...............................................Y : 1.0 Vp-p (75
Ω
)
C
B
, C
R
: 0.7 Vp-p (75
Ω
)
D Terminal ....................................................................14-pin
HDMI output
Output Terminal ............................................................19-pin
(all-digital audio/video interface)
21-pin connector assignment (/N : Europe model only)
AV connector output .................................... 21-pin connector
This connector provides the video and audio signals for
connection to a compatible color TV or monitor.
Audio output
Output level (During audio output) .........2 Vrms (1 kHz, 0 dB)
Number of channels ..........................................................2/6
Jacks .......................................................................RCA jack
Audio characteristics
Frequency response ............4 Hz to 44 kHz (DVD fs: 96 kHz)
S/N ratio ...................................................................... 120 dB
Dynamic range ........................................................... 110 dB
Total harmonic distortion .........................................0.0008 %
Wow and flutter .................................... Limit of measurement
(± 0.001 % W. PEAK) or lower
Digital output
Coaxial digital output ...............................................RCA jack
Optical digital output ..................................Optical digital jack
Other terminals
Control in/out ...........................................................RCA jack
Flasher input ..................................................Mini jack (3.5Ø)
RS232C ................................................................................1
Accessories
Remote control (RC001DV) ..................................................1
AAA/R03 dry cell batteries ...................................................2
Audio/Video cable (yellow/red/white) ....................................1
System control cable ............................................................1
Power cable ..........................................................................1
User Guide ...........................................................................1

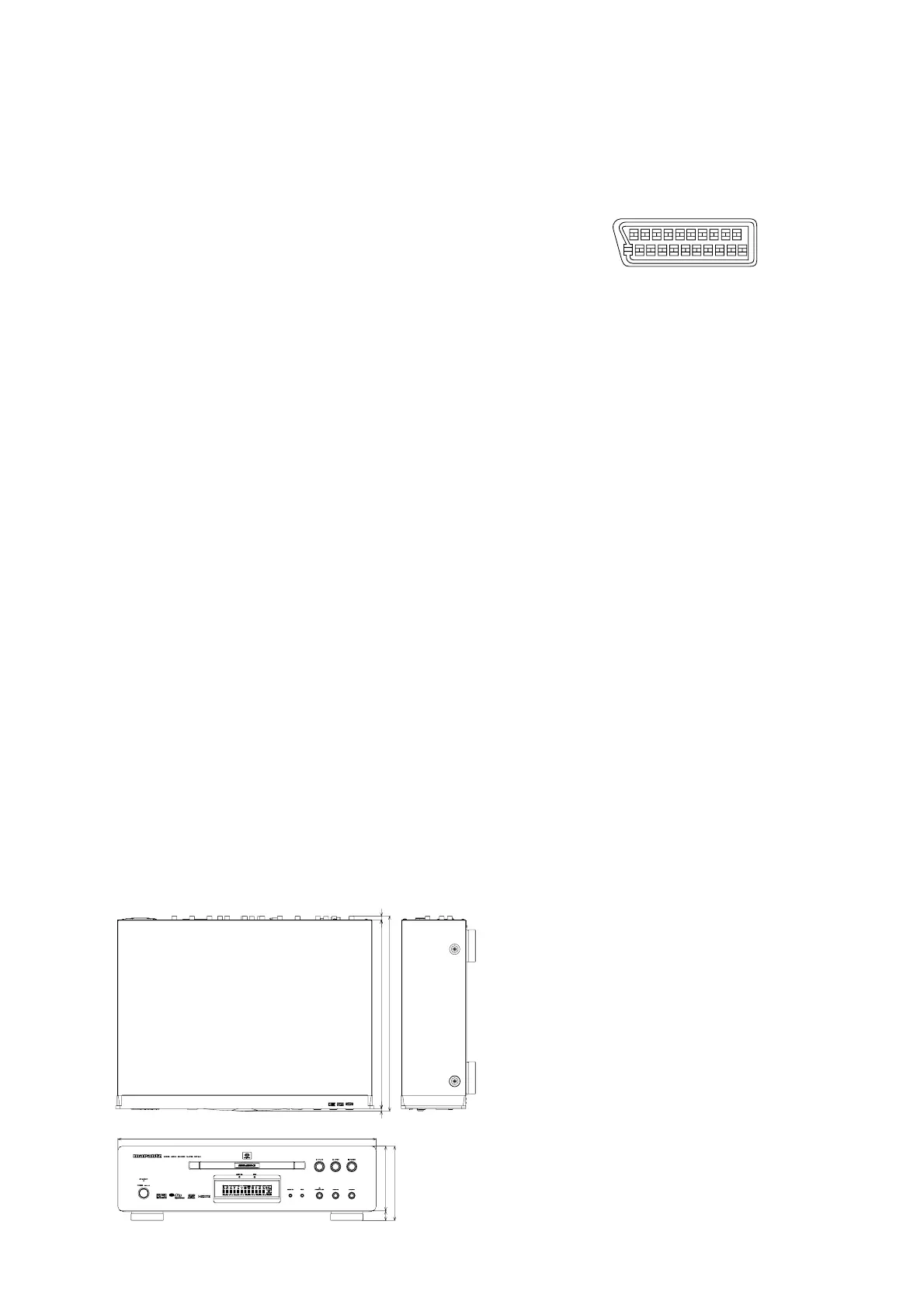

1. TECHNICAL SPECIFICATIONS
PIN no.
1 Audio 2/R out 15 R out
3 Audio 1/L out 16 Blank
4 GND 17 GND
7 B out 19 Video out
8 Status 21 GND
11 G out
20 18 16 14 12 10 8 6 4 2
21 19 17 15 13 11 9 7 5 3 1
(mm)
440
110
18
128
322
4
332
6
