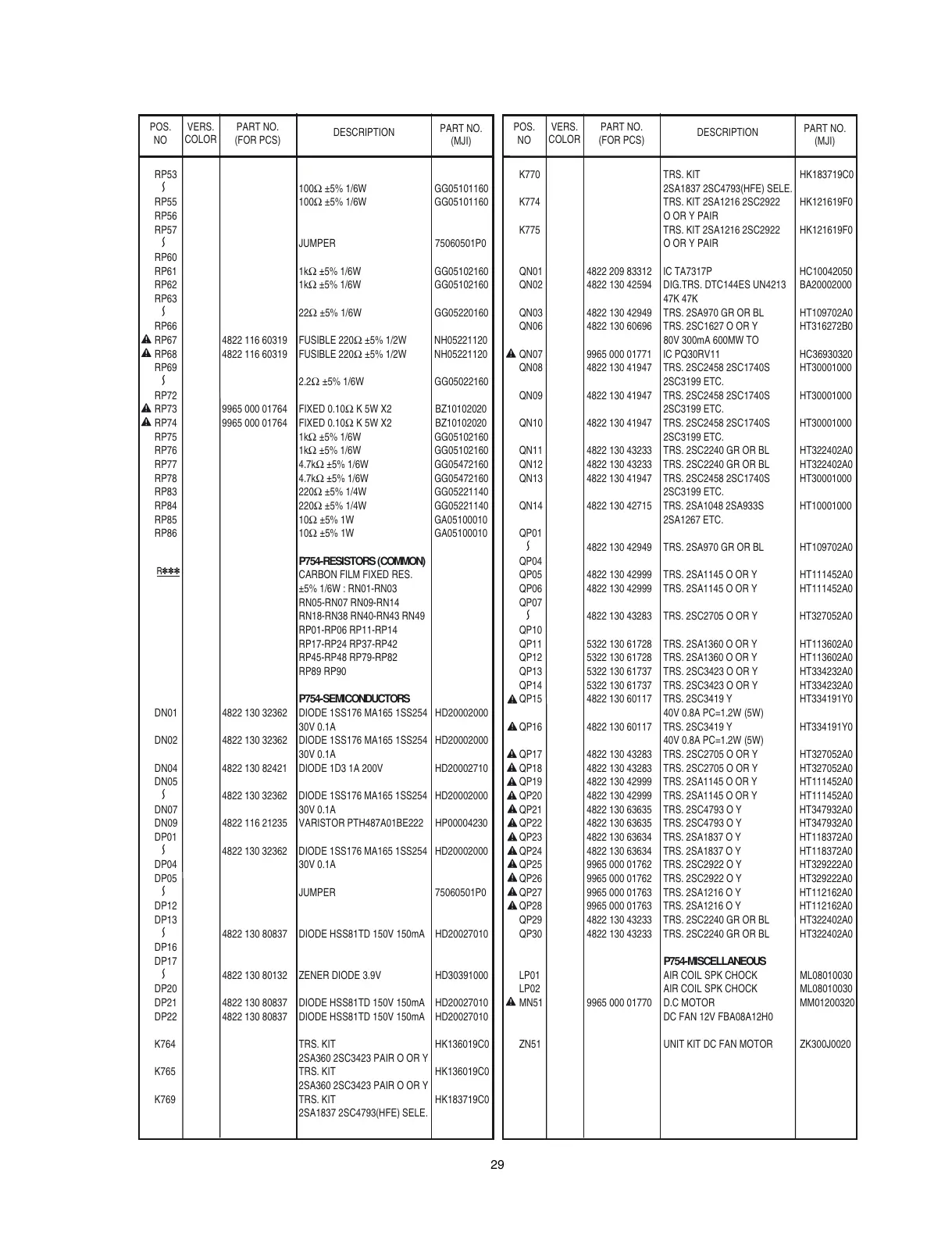

Marantz MM9000 - Exploded View and Parts List

29
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
RP53
100Ω ±5% 1/6W GG05101160
RP55 100Ω ±5% 1/6W GG05101160
RP56
RP57
JUMPER 75060501P0
RP60
RP61 1kΩ ±5% 1/6W GG05102160
RP62 1kΩ ±5% 1/6W GG05102160
RP63
22Ω ±5% 1/6W GG05220160
RP66
RP67 4822 116 60319 FUSIBLE 220Ω ±5% 1/2W NH05221120
RP68 4822 116 60319 FUSIBLE 220Ω ±5% 1/2W NH05221120
RP69
2.2Ω ±5% 1/6W GG05022160
RP72
RP73 9965 000 01764 FIXED 0.10Ω K 5W X2 BZ10102020
RP74 9965 000 01764 FIXED 0.10Ω K 5W X2 BZ10102020
RP75 1kΩ ±5% 1/6W GG05102160
RP76 1kΩ ±5% 1/6W GG05102160
RP77 4.7kΩ ±5% 1/6W GG05472160
RP78 4.7kΩ ±5% 1/6W GG05472160
RP83 220Ω ±5% 1/4W GG05221140
RP84 220Ω ±5% 1/4W GG05221140
RP85 10Ω ±5% 1W GA05100010
RP86 10Ω ±5% 1W GA05100010
P754-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RN01-RN03
RN05-RN07 RN09-RN14
RN18-RN38 RN40-RN43 RN49
RP01-RP06 RP11-RP14
RP17-RP24 RP37-RP42
RP45-RP48 RP79-RP82
RP89 RP90
P754-SEMICONDUCTORS
DN01 4822 130 32362 DIODE 1SS176 MA165 1SS254
30V 0.1A
HD20002000
DN02 4822 130 32362 DIODE 1SS176 MA165 1SS254
30V 0.1A
HD20002000
DN04 4822 130 82421 DIODE 1D3 1A 200V HD20002710
DN05
4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000
DN07 30V 0.1A
DN09 4822 116 21235 VARISTOR PTH487A01BE222 HP00004230
DP01
4822 130 32362 DIODE 1SS176 MA165 1SS254 HD20002000
DP04 30V 0.1A
DP05
JUMPER 75060501P0
DP12
DP13
4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010
DP16
DP17
4822 130 80132 ZENER DIODE 3.9V HD30391000
DP20
DP21 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010
DP22 4822 130 80837 DIODE HSS81TD 150V 150mA HD20027010
K764 TRS. KIT
2SA360 2SC3423 PAIR O OR Y
HK136019C0
K765 TRS. KIT
2SA360 2SC3423 PAIR O OR Y
HK136019C0
K769 TRS. KIT
2SA1837 2SC4793(HFE) SELE.
HK183719C0
K770 TRS. KIT
2SA1837 2SC4793(HFE) SELE.
HK183719C0
K774 TRS. KIT 2SA1216 2SC2922
O OR Y PAIR
HK121619F0
K775 TRS. KIT 2SA1216 2SC2922
O OR Y PAIR
HK121619F0
QN01 4822 209 83312 IC TA7317P HC10042050
QN02 4822 130 42594 DIG.TRS. DTC144ES UN4213
47K 47K
BA20002000
QN03 4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0
QN06 4822 130 60696 TRS. 2SC1627 O OR Y
80V 300mA 600MW TO
HT316272B0
QN07 9965 000 01771 IC PQ30RV11 HC36930320
QN08 4822 130 41947 TRS. 2SC2458 2SC1740S
2SC3199 ETC.
HT30001000
QN09 4822 130 41947 TRS. 2SC2458 2SC1740S
2SC3199 ETC.
HT30001000
QN10 4822 130 41947 TRS. 2SC2458 2SC1740S
2SC3199 ETC.
HT30001000
QN11 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0
QN12 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0
QN13 4822 130 41947 TRS. 2SC2458 2SC1740S
2SC3199 ETC.
HT30001000
QN14 4822 130 42715 TRS. 2SA1048 2SA933S
2SA1267 ETC.
HT10001000
QP01
4822 130 42949 TRS. 2SA970 GR OR BL HT109702A0
QP04
QP05 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0
QP06 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0
QP07
4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0
QP10
QP11 5322 130 61728 TRS. 2SA1360 O OR Y HT113602A0
QP12 5322 130 61728 TRS. 2SA1360 O OR Y HT113602A0
QP13 5322 130 61737 TRS. 2SC3423 O OR Y HT334232A0
QP14 5322 130 61737 TRS. 2SC3423 O OR Y HT334232A0
QP15 4822 130 60117 TRS. 2SC3419 Y
40V 0.8A PC=1.2W (5W)
HT334191Y0
QP16 4822 130 60117 TRS. 2SC3419 Y
40V 0.8A PC=1.2W (5W)
HT334191Y0
QP17 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0
QP18 4822 130 43283 TRS. 2SC2705 O OR Y HT327052A0
QP19 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0
QP20 4822 130 42999 TRS. 2SA1145 O OR Y HT111452A0
QP21 4822 130 63635 TRS. 2SC4793 O Y HT347932A0
QP22 4822 130 63635 TRS. 2SC4793 O Y HT347932A0
QP23 4822 130 63634 TRS. 2SA1837 O Y HT118372A0
QP24 4822 130 63634 TRS. 2SA1837 O Y HT118372A0
QP25 9965 000 01762 TRS. 2SC2922 O Y HT329222A0
QP26 9965 000 01762 TRS. 2SC2922 O Y HT329222A0
QP27 9965 000 01763 TRS. 2SA1216 O Y HT112162A0
QP28 9965 000 01763 TRS. 2SA1216 O Y HT112162A0
QP29 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0
QP30 4822 130 43233 TRS. 2SC2240 GR OR BL HT322402A0
P754-MISCELLANEOUS
LP01 AIR COIL SPK CHOCK ML08010030
LP02 AIR COIL SPK CHOCK ML08010030
MN51 9965 000 01770 D.C MOTOR
DC FAN 12V FBA08A12H0
MM01200320
ZN51 UNIT KIT DC FAN MOTOR ZK300J0020
