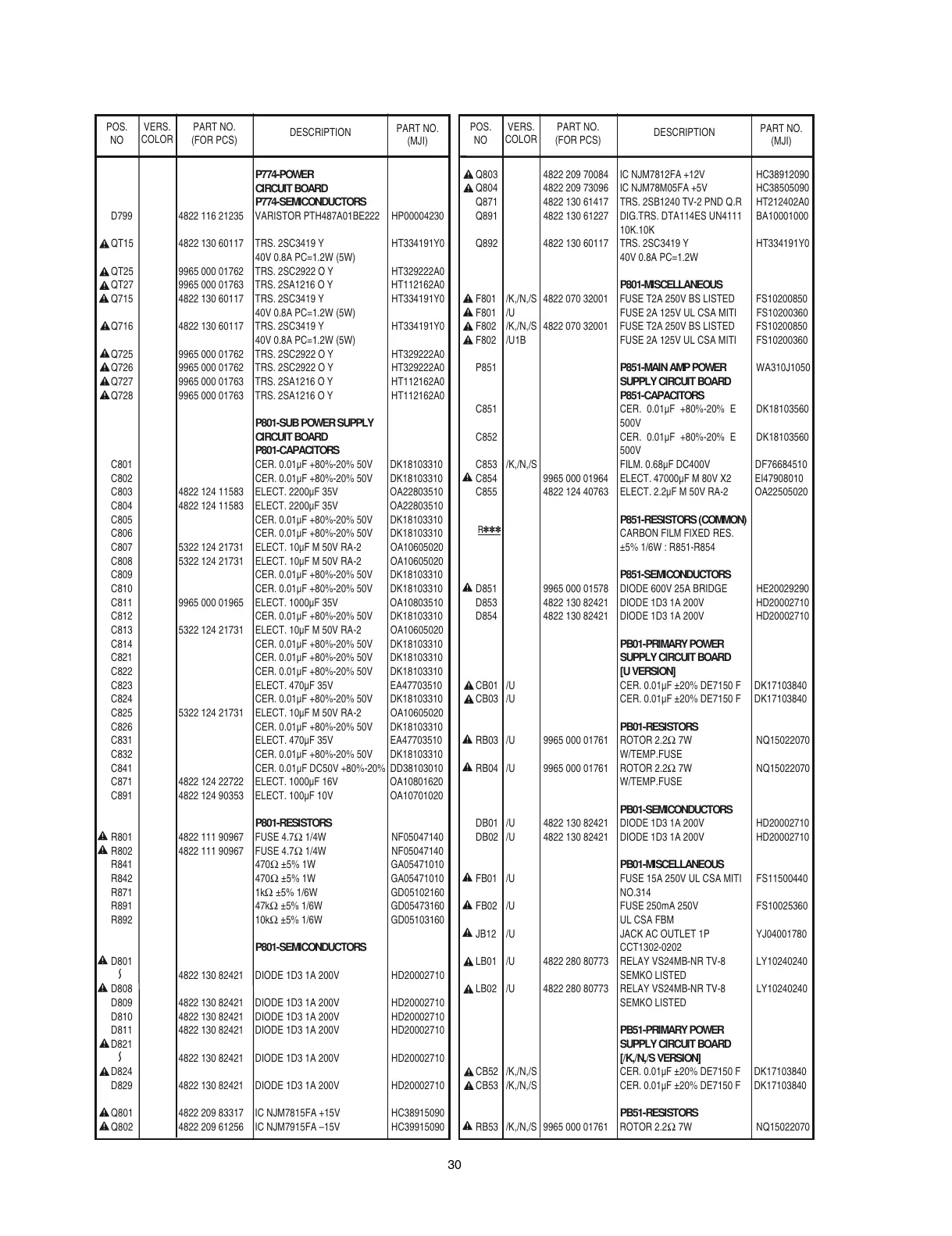

Marantz MM9000 - Page 20

30
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
P774-POWER
CIRCUIT BOARD
P774-SEMICONDUCTORS
D799 4822 116 21235 VARISTOR PTH487A01BE222 HP00004230
QT15 4822 130 60117 TRS. 2SC3419 Y
40V 0.8A PC=1.2W (5W)
HT334191Y0
QT25 9965 000 01762 TRS. 2SC2922 O Y HT329222A0
QT27 9965 000 01763 TRS. 2SA1216 O Y HT112162A0
Q715 4822 130 60117 TRS. 2SC3419 Y
40V 0.8A PC=1.2W (5W)
HT334191Y0
Q716 4822 130 60117 TRS. 2SC3419 Y
40V 0.8A PC=1.2W (5W)
HT334191Y0
Q725 9965 000 01762 TRS. 2SC2922 O Y HT329222A0
Q726 9965 000 01762 TRS. 2SC2922 O Y HT329222A0
Q727 9965 000 01763 TRS. 2SA1216 O Y HT112162A0
Q728 9965 000 01763 TRS. 2SA1216 O Y HT112162A0
P801-SUB POWER SUPPLY
CIRCUIT BOARD
P801-CAPACITORS
C801 CER. 0.01µF +80%-20% 50V DK18103310
C802 CER. 0.01µF +80%-20% 50V DK18103310
C803 4822 124 11583 ELECT. 2200µF 35V OA22803510
C804 4822 124 11583 ELECT. 2200µF 35V OA22803510
C805 CER. 0.01µF +80%-20% 50V DK18103310
C806 CER. 0.01µF +80%-20% 50V DK18103310
C807 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020
C808 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020
C809 CER. 0.01µF +80%-20% 50V DK18103310
C810 CER. 0.01µF +80%-20% 50V DK18103310
C811 9965 000 01965 ELECT. 1000µF 35V OA10803510
C812 CER. 0.01µF +80%-20% 50V DK18103310
C813 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020
C814 CER. 0.01µF +80%-20% 50V DK18103310
C821 CER. 0.01µF +80%-20% 50V DK18103310
C822 CER. 0.01µF +80%-20% 50V DK18103310
C823 ELECT. 470µF 35V EA47703510
C824 CER. 0.01µF +80%-20% 50V DK18103310
C825 5322 124 21731 ELECT. 10µF M 50V RA-2 OA10605020
C826 CER. 0.01µF +80%-20% 50V DK18103310
C831 ELECT. 470µF 35V EA47703510
C832 CER. 0.01µF +80%-20% 50V DK18103310
C841 CER. 0.01µF DC50V +80%-20% DD38103010
C871 4822 124 22722 ELECT. 1000µF 16V OA10801620
C891 4822 124 90353 ELECT. 100µF 10V OA10701020
P801-RESISTORS
R801 4822 111 90967 FUSE 4.7Ω 1/4W NF05047140
R802 4822 111 90967 FUSE 4.7Ω 1/4W NF05047140
R841 470Ω ±5% 1W GA05471010
R842 470Ω ±5% 1W GA05471010
R871 1kΩ ±5% 1/6W GD05102160
R891 47kΩ ±5% 1/6W GD05473160
R892 10kΩ ±5% 1/6W GD05103160
P801-SEMICONDUCTORS
D801
4822 130 82421 DIODE 1D3 1A 200V HD20002710
D808
D809 4822 130 82421 DIODE 1D3 1A 200V HD20002710
D810 4822 130 82421 DIODE 1D3 1A 200V HD20002710
D811 4822 130 82421 DIODE 1D3 1A 200V HD20002710
D821
4822 130 82421 DIODE 1D3 1A 200V HD20002710
D824
D829 4822 130 82421 DIODE 1D3 1A 200V HD20002710
Q801 4822 209 83317 IC NJM7815FA +15V HC38915090
Q802 4822 209 61256 IC NJM7915FA –15V HC39915090
Q803 4822 209 70084 IC NJM7812FA +12V HC38912090
Q804 4822 209 73096 IC NJM78M05FA +5V HC38505090
Q871 4822 130 61417 TRS. 2SB1240 TV-2 PND Q.R HT212402A0
Q891 4822 130 61227 DIG.TRS. DTA114ES UN4111
10K.10K
BA10001000
Q892 4822 130 60117 TRS. 2SC3419 Y
40V 0.8A PC=1.2W
HT334191Y0
P801-MISCELLANEOUS
F801 /K,/N,/S 4822 070 32001 FUSE T2A 250V BS LISTED FS10200850
F801 /U FUSE 2A 125V UL CSA MITI FS10200360
F802 /K,/N,/S 4822 070 32001 FUSE T2A 250V BS LISTED FS10200850
F802 /U1B FUSE 2A 125V UL CSA MITI FS10200360
P851 P851-MAIN AMP POWER
SUPPLY CIRCUIT BOARD
WA310J1050
P851-CAPACITORS
C851 CER. 0.01µF +80%-20% E
500V
DK18103560
C852 CER. 0.01µF +80%-20% E
500V
DK18103560
C853 /K,/N,/S FILM. 0.68µF DC400V DF76684510
C854 9965 000 01964 ELECT. 47000µF M 80V X2 EI47908010
C855 4822 124 40763 ELECT. 2.2µF M 50V RA-2 OA22505020
P851-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : R851-R854
P851-SEMICONDUCTORS
D851 9965 000 01578 DIODE 600V 25A BRIDGE HE20029290
D853 4822 130 82421 DIODE 1D3 1A 200V HD20002710
D854 4822 130 82421 DIODE 1D3 1A 200V HD20002710
PB01-PRIMARY POWER
SUPPLY CIRCUIT BOARD
[U VERSION]
CB01 /U CER. 0.01µF ±20% DE7150 F DK17103840
CB03 /U CER. 0.01µF ±20% DE7150 F DK17103840
PB01-RESISTORS
RB03 /U 9965 000 01761 ROTOR 2.2Ω 7W
W/TEMP.FUSE
NQ15022070
RB04 /U 9965 000 01761 ROTOR 2.2Ω 7W
W/TEMP.FUSE
NQ15022070
PB01-SEMICONDUCTORS
DB01 /U 4822 130 82421 DIODE 1D3 1A 200V HD20002710
DB02 /U 4822 130 82421 DIODE 1D3 1A 200V HD20002710
PB01-MISCELLANEOUS
FB01 /U FUSE 15A 250V UL CSA MITI
NO.314
FS11500440
FB02 /U FUSE 250mA 250V
UL CSA FBM
FS10025360
JB12 /U JACK AC OUTLET 1P
CCT1302-0202
YJ04001780
LB01 /U 4822 280 80773 RELAY VS24MB-NR TV-8
SEMKO LISTED
LY10240240
LB02 /U 4822 280 80773 RELAY VS24MB-NR TV-8
SEMKO LISTED
LY10240240
PB51-PRIMARY POWER
SUPPLY CIRCUIT BOARD
[/K,/N,/S VERSION]
CB52 /K,/N,/S CER. 0.01µF ±20% DE7150 F DK17103840
CB53 /K,/N,/S CER. 0.01µF ±20% DE7150 F DK17103840
PB51-RESISTORS
RB53 /K,/N,/S 9965 000 01761 ROTOR 2.2Ω 7W NQ15022070
