Marantz MR2020 - Initial Setup and Safety

2-1. HOW TO DISASSEMBLE MR2020
1. Take the bottom case (001G) apart
(1) Turn MR2020 upside down by the jig (Refer to fig.1-3).
Take care that the top cover will not damaged, especially
the 4 levers. If you don't have the jig, you prepare to put
some magazine or telephone guide under the MR2020
(The height is over 3cm books).

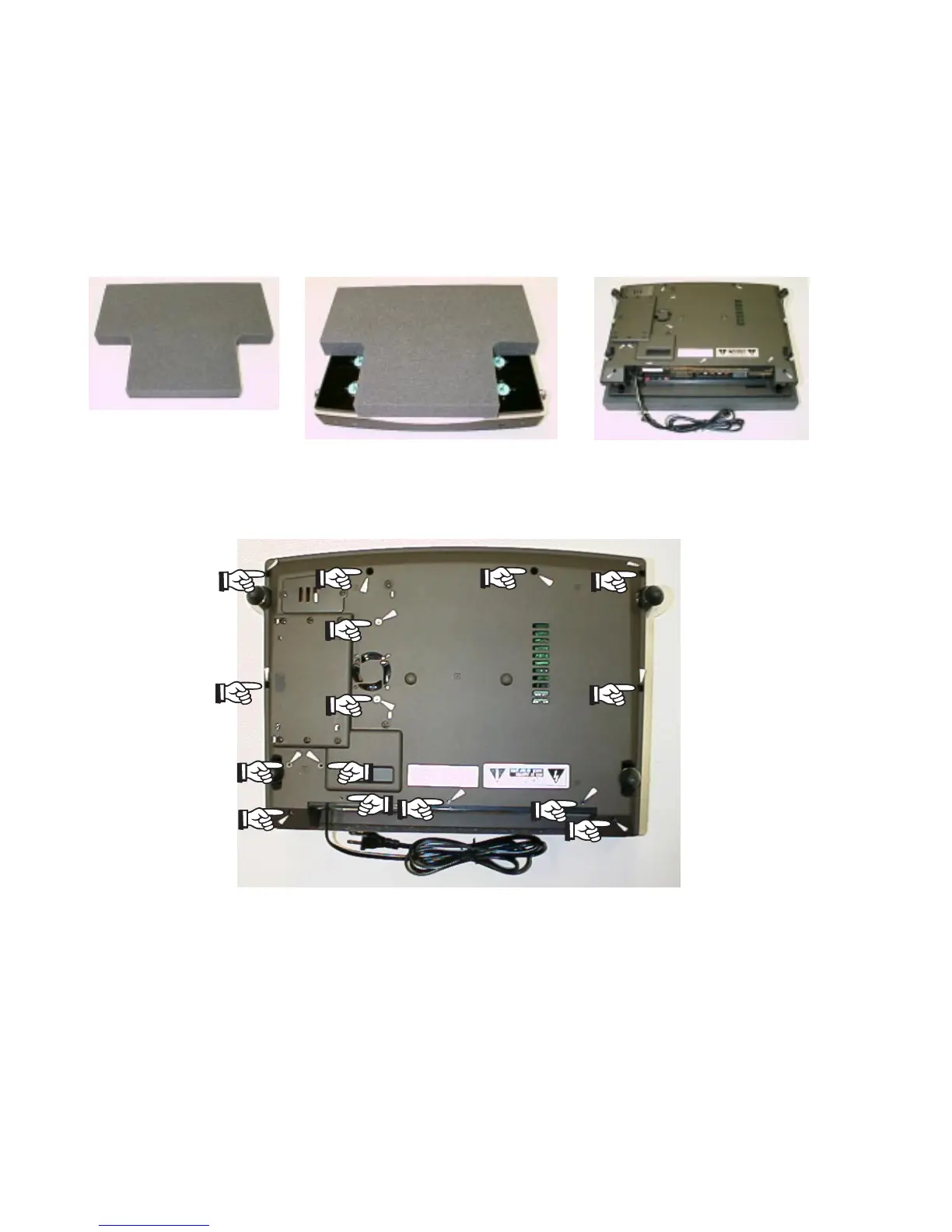

Fig.1 A jig for MR2020
(2) Remove 15 screws as shown in fig.4.
Fig.2 The jig on MR2020 Fig.3 Turning over the MR2020
2-1
Fig.4 Position of 15 screws
