74

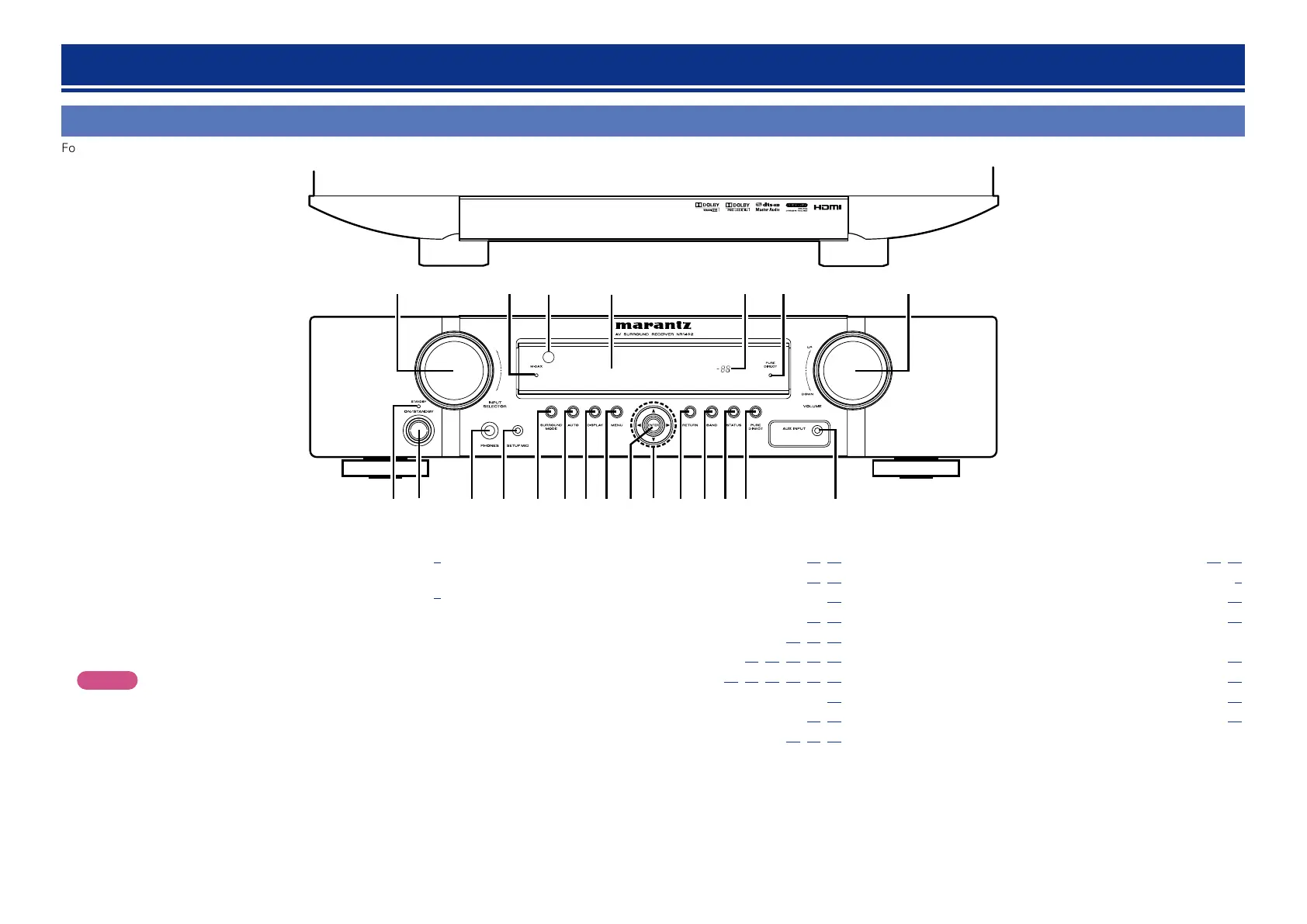

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
q e r yt iu
Q6
ow Q0
W1 W0
Q7W2 Q8Q9
Q2Q1 Q4Q3 Q5
q Power indicator (STANDBY) ············································ (C 5)
w Power operation button
(ON/STANDBY) ································································· (C 5)
Turns power to this unit on and off (standby).
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
Q4 PURE DIRECT button ························································ (24, 41)
Q65 AUX INPUT jack ········································································· (8)
Q6 VOLUME control knob ···························································· (19)
Q7 PURE DIRECT indicator ··························································· (24)
Q8 Master volume indicator
Q9 Display ······················································································ (75)
W0 Remote control sensor ··························································· (78)
W1 M-DAX indicator ······································································ (52)
W2 INPUT SELECTOR knob ·························································· (19)
r SETUP MIC jack ································································· (13, 35)
t SURROUND MODE button ··············································· (24, 67)
y AUTO button ··········································································· (24)
u DISPLAY button ································································· (41, 60)
i MENU button ······························································· (41, 48, 60)
o ENTER button ·················································· (45, 46, 48, 60, 67)
Q0 Cursor buttons (uio p) ·························· (41, 45, 46, 48, 60, 67)
Q1 RETURN button ······································································· (48)
Q2 BAND button ····································································· (20, 41)
Q3 STATUS button ··························································· (53, 61, 67)
Part names and functions
