Marantz NR1608 - Audio and Video Input;Output Connectors

.
i o Q0uy
t
E

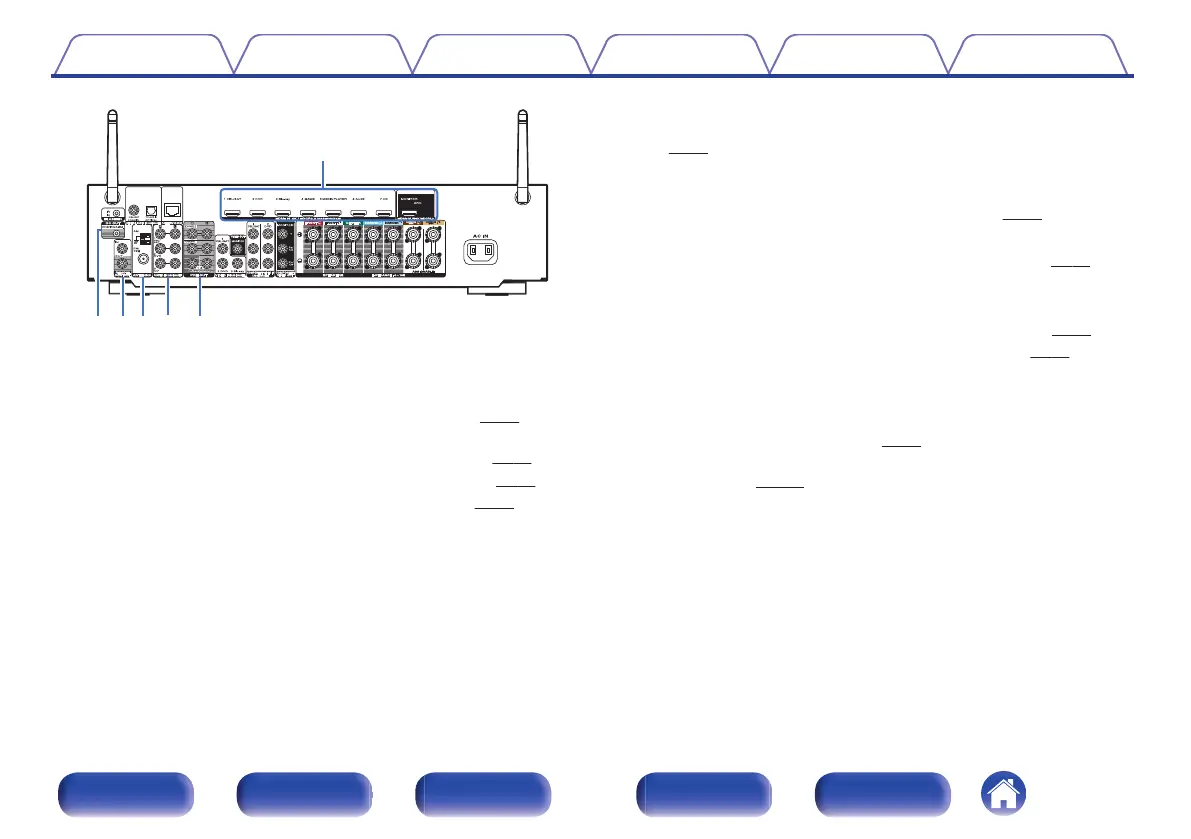

HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v
p. 51)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v
p. 52)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 55)
0
“Connecting a DVD player or Blu-ray Disc player” (v
p. 56)
F
DC OUT jack
Used to connect devices equipped with the trigger function.
(v p. 64)
G
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 63)
H
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 59)
I
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 55)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 56)
J
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or a power amplifier
for ZONE2.
0
“Connecting the subwoofer” (v
p. 36)
0
“Connection 2 : Connection using an external amplifier
(ZONE2)” (v p. 136)
