Marantz NR1608 - Speaker Layout Examples; 7.1-channel Surround Back Speaker Layout; 5.1-channel Speaker Layout

o

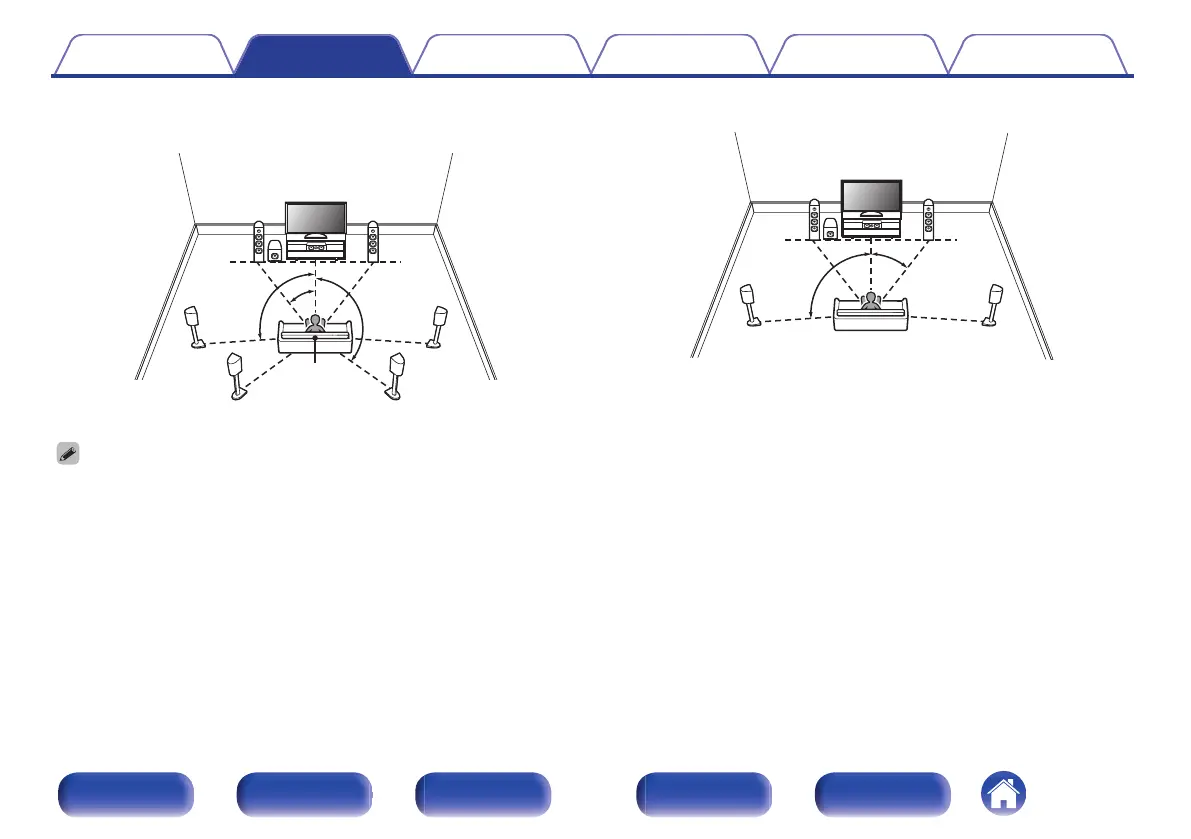

When 7.1-channel speakers are installed using
surround back speakers
.
z1
z2
z3
FL
SW
C
SL
SBL
FR
SR
SBR
Listening
position
z1 22° - 30° z2 90° - 110° z3 135° - 150°
0
When using a single surround back speaker, place it directly behind the listening
position.
o
When 5.1-channel speakers are installed
.
z1
z2
FL
SW
C
SL
FR
SR
z1 22° - 30° z2 120°
