Power output (20 Hz – 20 kHz simultaneous drive of both channels)
.................................................... 100W x 2 (8Ω load)
.................................................... 200W x 2 (4Ω load)
Total frequency distortion (20Hz – 20kHz simultaneous drive
of both channels, 8Ω load) .......................................... 0.01%
Output band width (8Ω load, 0.05%) .................. 5Hz ~50kHz
Frequency response (CD, 1W, 8Ω load) ..... 5Hz ~ 120kHz±3dB
Dumping factor (8Ω load, 20Hz – 20kHz) ....................... 100
Input sensitivity/Input impedance
PHONO (MC) .............................................. 270µV/100Ω
PHONO (MM) ..................................................3mV/47kΩ
BALANCED ............................................... 240mV/20kΩ
CD/LINE .................................................... 240mV/20kΩ
Output voltage/Output impedance
PRE OUT ...................................................... 1.9 V/220Ω
Maximum allowed PHONO input (1kHz)
MC .......................................................................... 12mV
MM ....................................................................... 130mV
RIAA deviation (20Hz ~ 20kHz) ............................ ±0.5dB
S/N (IHF-A, 1W, 8Ω load)
PHONO (MC) ................................... 76dB (0.5mV input)
PHONO (MM) ...................................... 90dB (5mV input)
BALANCED ..................................... 95dB (500mV input)
CD/LINE .......................................... 96dB (500mV input)

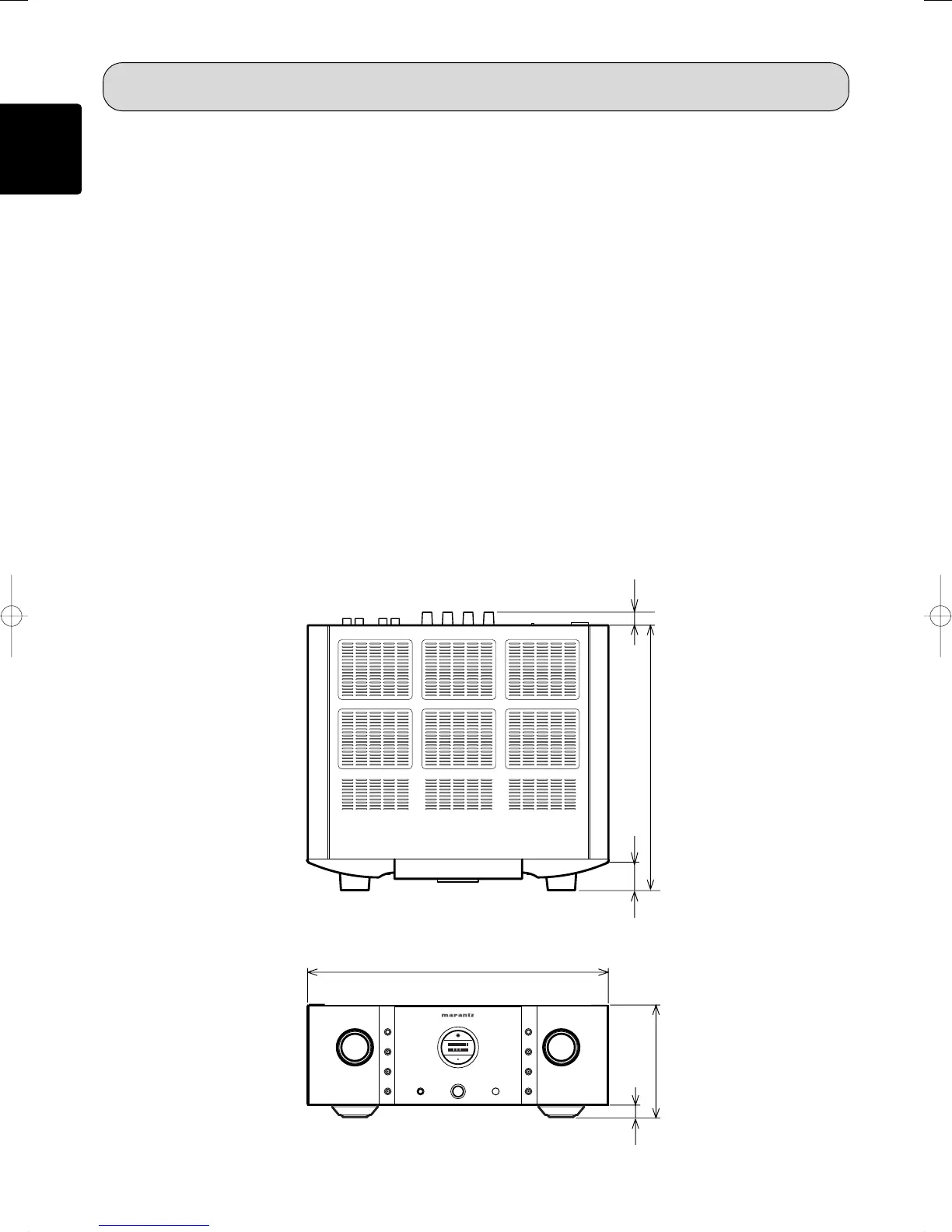

SPECIFICATIONS & DIMENSIONAL DRAWINGS
Tone control
Bass (50Hz) ............................................................. ±8dB
Treble (20kHz) ......................................................... ±8dB
Power requirement ......................................... AC 230V 50Hz
Power consumption
(EN60065) .............................................................. 380W
(4Ω, 200W x 2 output) ............................................ 880W
Accessories
Remote controller .......................................................... 1
AAA batteries ................................................................ 2
Detachable AC power cable .......................................... 1
Maximum outer dimensions (Amp)
Width ................................................................... 440mm
Height .................................................................. 165mm
Depth ................................................................... 444mm
Weight (Amp) .............................................................. 26.0kg
INTEGRARED AMPLIFIER PM-11S1
POWER ON/OFF
PHONES
VOLUME
A
TONE
SPEAKER
B
SPEAKER
REC OUT
PRE OUT
ATT.
MC
OPERATE
PHONO
DISPLAY
SELECTOR
INPUT
419
43
165
440
25
19
