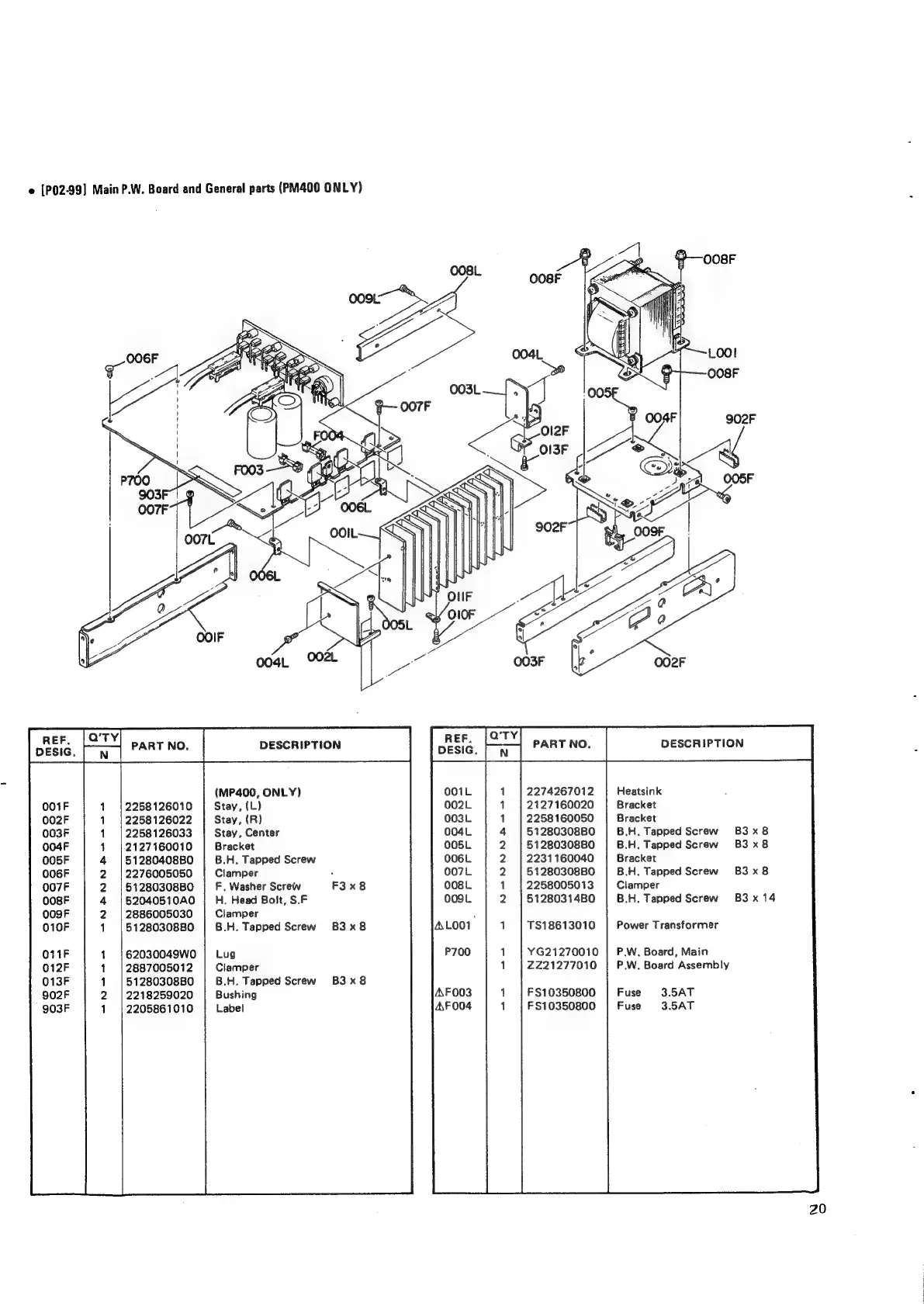

Marantz PM250 - Exploded View and Parts List; Main P.W. Board Parts (PM400)

e
[P02-99]
Main
P.W.
Board
and
General
parts
(PM400
ONLY)
=]=N ANN A BR SB Ho
“aN =
2258126010
2258126022
2258126033
2127160010
51280408B0
2276005050
51280308B0
52040510A0
2886005030
5128030880
62030049W0
2887005012
5128030880
2218259020
2205861010
(MP400, ONLY)
Stay, (L)
Stay, (R}
Stay, Center
Bracket
B.H. Tapped Screw
Clamper .
F, Washer Screw F3x8
H. Head Bolt, S.F
Clamper
B.H. Tapped Screw 83 x8
Lug
Clamper
B.H. Tapped Screw
Bushing
Label
2274267012
2127160020
2258160050
51280308B0
5128030880
2231160040
51280308B0
2258005013
51280314B0
TS18613010
YG21270010
2221277010
FS10350800
FS10350800
Heatsink
Bracket
Bracket
B.H, Tapped Screw
B.H. Tapped Screw
Bracket
B.H. Tapped Screw
Clamper
B.H. Tapped Screw
Power Transformer
P.W. Board, Main
P.W. Board Assembly
Fuse 3.5AT
Fuse 3.5AT
