Marantz PM7003 Service Manual

1
Power output
(20 Hz – 20 kHz simultaneous drive of both channels)
8 Ω load ..............................................................70 W x 2
4 Ω load ...........................................................100 W x 2)
Total harmonic distortion
(20 Hz – 20 kHz simultaneous drive of both channels, 8 Ω load)
.........................................................................0.02 %
Output band width (8 Ω load, 0.05 %)
............................................................. 5 Hz – 60 kHz
Frequency response (CD, 1 W, 8 Ω load)
.................................................5 Hz – 100 kHz ±3 dB
Dumping factor (8 Ω load, 20 Hz – 20 kHz) ......................100
Input sensitivity/Input impedance
PHONO (MM) ................................................2 mV/47 kΩ
CD, LINE, TUNER, AUX/DVD, RECORDER
.............................................................200 mV/20 kΩ
MAIN IN ......................................................... 1.6 V/20 kΩ
Output voltage/Output impedance
PRE OUT .......................................................1.6 V/600 Ω
Maximum allowable PHONO input level (1 kHz)
MM ....................................................................... 100 mV
RIAA deviation (20 Hz ~ 20 kHz) ......................... ±0.5 dB
S/N (IHF-A, 1 W, 8 Ω load)
PHONO (MM)) ........................................................ 85 dB
CD, LINE, TUNER, AUX/DVD, RECORDER ........... 88 dB
POWER AMP DIRECT IN ..................................... 106 dB
Tone control
Bass (50 Hz) ......................................................... ±10 dB
Treble (20 kHz) ...................................................... ±10 dB
Power requirement
[F] .....................................................AC 100 V, 50/60 Hz
[N] ..........................................................AC 230 V, 50 Hz
Power consumption
EN60065/J60065 ....................................................200 W
Standby power consumption .........................................0.3 W
Accessories
Remote controller (RC003PM)........................................1
AAA batteries ..................................................................2
Detachable AC power cable ............................................1
Maximum outer dimensions (Amplifier)
Width ....................................................................440 mm
Height ..............................................................126.8 mm
Depth ...................................................................368 mm
Weight (Amplifier) .................................................10.5 kg
1. TECHNICAL SPECIFICATIONS

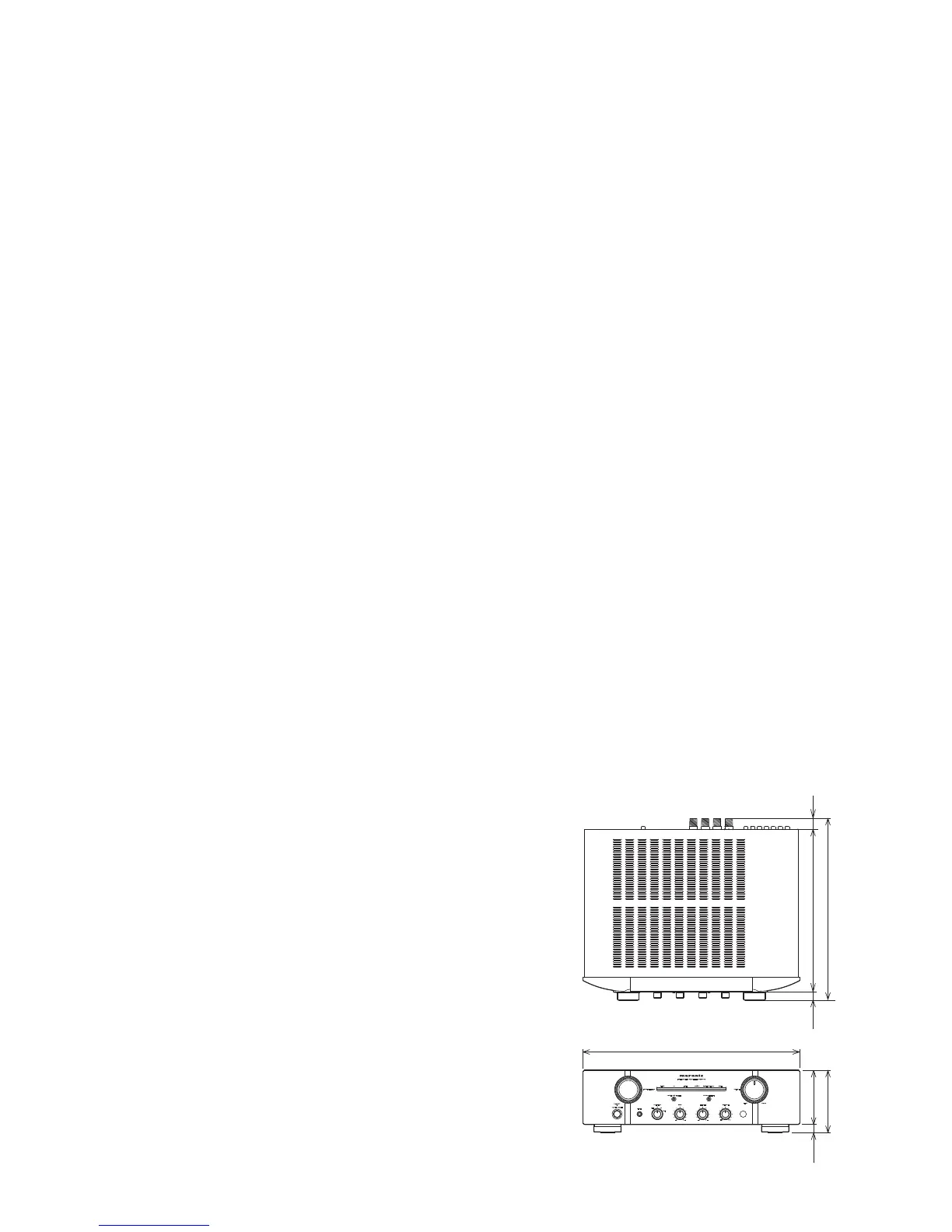

DIMENSIONS (unit : mm)
INTEGRATED AMPLIFIER PM7003
AUX/DVD MUTERECORDER 21TUNERPHONO CD
POWER AMP DIRECT
INPUT SELECTOR VOLUME
MAXMIN
SOURCE DIRECT
STANDBY
POWER ON/OFF
PHONES
BALANCE
RL
TREBLEBASS
+
-
+
-
OFF
A+B
A
SPEAKERS
B
368
328.5
17.5
126.8
110.5
440
22
16.3

Marantz PM7003 Specifications

General

Brand	Marantz
Model	PM7003
Category	Amplifier
Language	English
