Marantz PM7003 User Manual

8
Names aNd
FuNctioNs
Basic
coNNectioN
Basic
operatioN
adVaNced
coNNectioNs
remote coNtroller
operatioN
trouBleshootiNg
others
Basic
coNNectioN
ENGLISH
Notes:
•Topreventdamagetocircuitry,donotletthebare
speaker wires touch each other and do not let
themtouchanymetalpartofthisunit.
•Do not touch the speaker terminals when the
power is on. It may cause you to receive an
electricshocks.
•Be sure to connect the positive and negative
cablesforthespeakerproperly.Iftheyaremiss-
connected,thesignalphasewillbereversedand
thesignalqualitywillbecorrupted.
WiriNg speaKer caBle
• Peel off the coating of speaker cable as shown
below.
Approx. 1 cm
Cut the coating
of cable.
Peel off the edge
of cable.
Twist
conductors.
• Wiring with speaker cable.
Turn counter-
clockwise to
loosen.
Insert conductor
of cable.
Turn clockwise
to tighten.

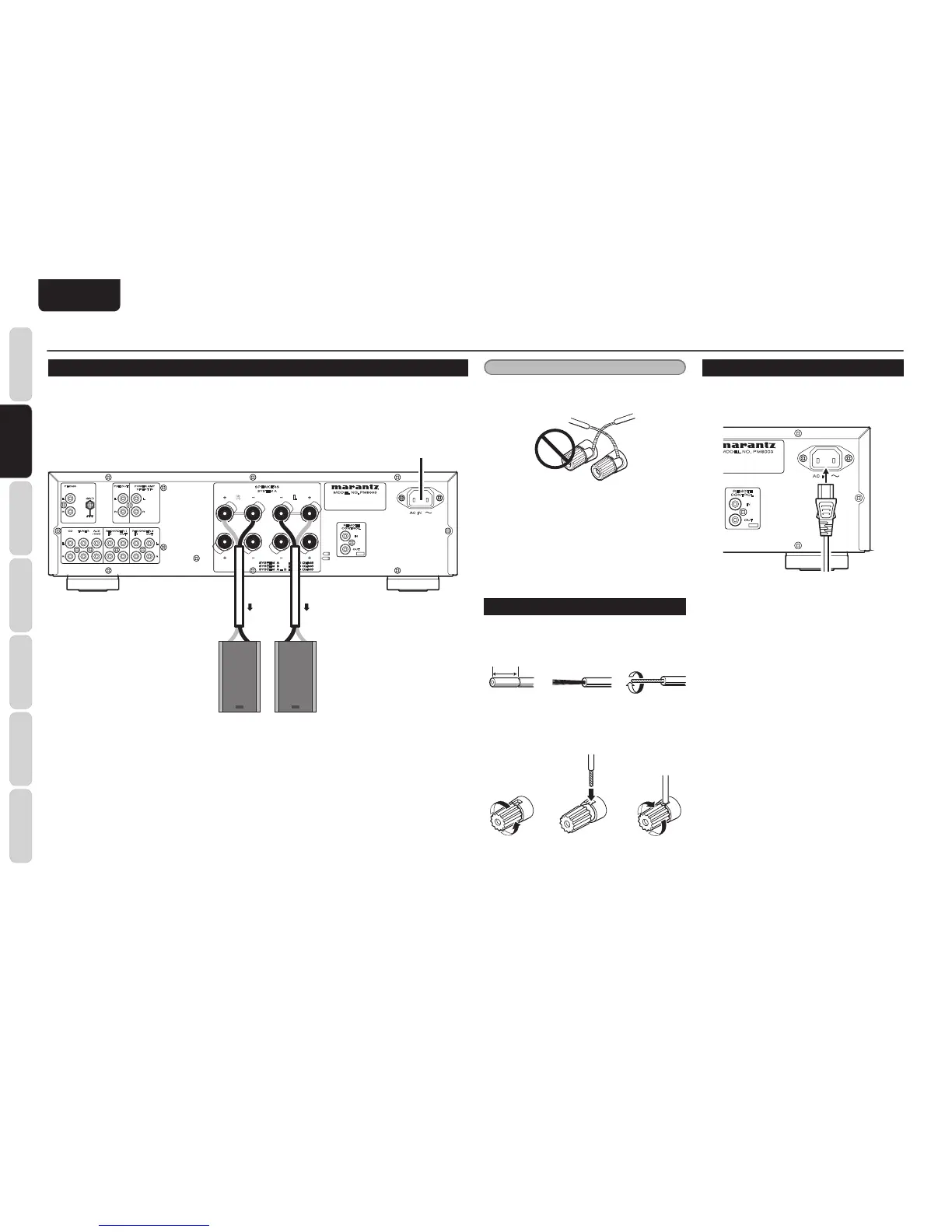

Basic coNNectioN
• Set the SPEAKERS knob on the front panel in the A or A+B position.
coNNectiNg speaKer sYstems
Your speaker system must satisfy the below conditions. If it does not, this unit
’
s protective circuit will active,
whereby preventing proper playback. In some cases, the amplifier and speakers may be damaged.
• If using 1 set of speakers, total speaker impedance must be 4Ω or more.
• If using 2 sets of speakers, total speaker impedance must be 8Ω or more.
coNNectiNg oF ac poWer caBle
1. Plug the supplied AC power cable to the
AC IN socket on the rear panel of the main
unit.
AC IN
OUT
IN
REMOTE
CONTROL
M
ODEL NO. PM8003
2. Plug the power cable into an AC outlet.
R
SPEAKERS
SYSTEM A
L
L
R
GND
CD AUX
/ DVD
TUNER
OUTIN
RECORDER 1
OUTIN
RECORDER 2
R
L
L
R
PHONO
AC IN
OUT
IN
REMOTE
CONTROL
R L
R
L
POWER AMP
DIRECT IN
PRE OUT
R
L
MODEL NO. PM8003
To power outlet
R CH
speaker
L CH
speaker
