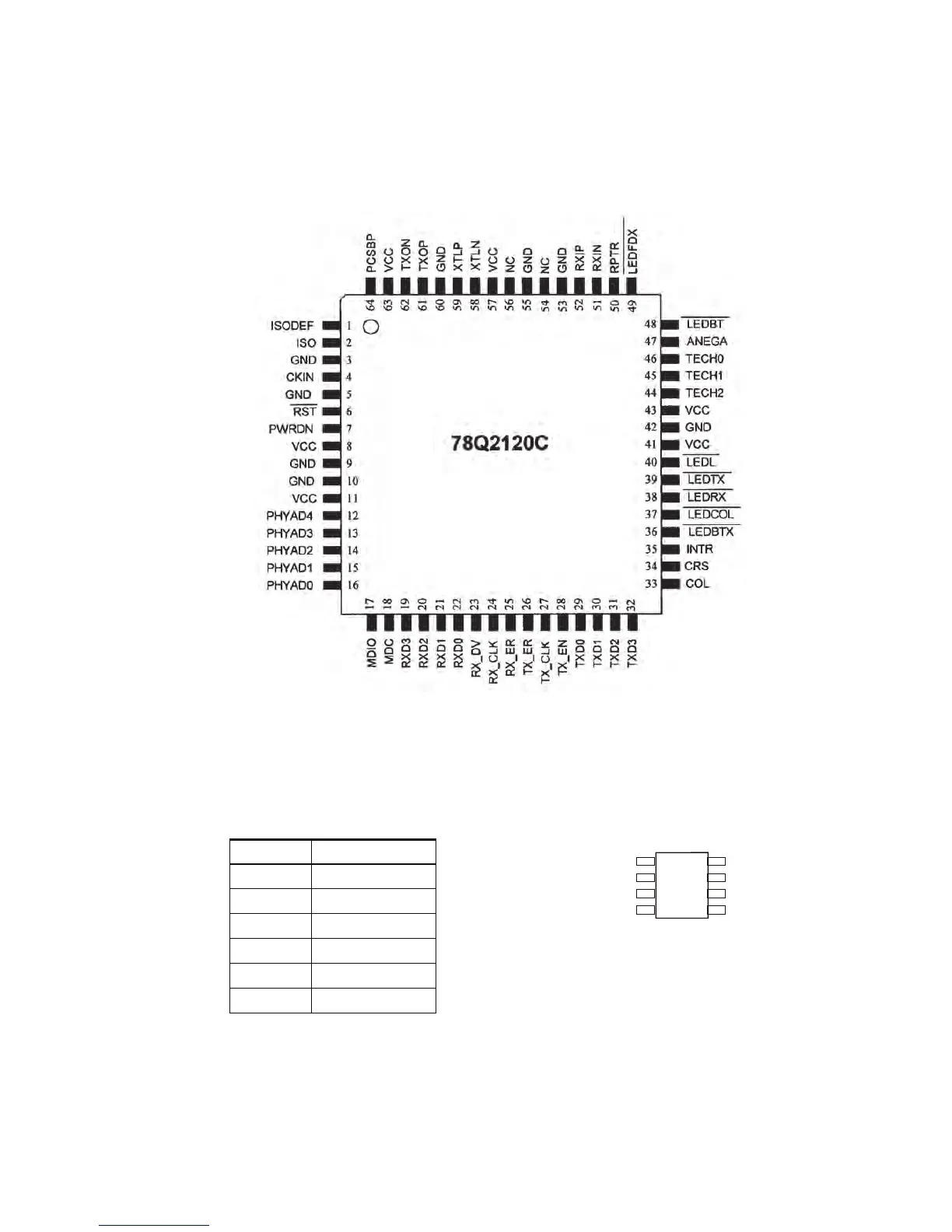

11. IC DATA
78Q2120
PACKAGE PIN DESIGNATIONS
(TOP VIEW)
AT24C16B
PIN CONFIGURATION
Pin Name Function
A0 - A2 No Connect
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
GND Ground
VCC Power Supply
1
2
3
4
8
7
6
5
A0
A1
A2
GND
VCC
WP
SCL
SDA
8-LEAD SOIC
