Marantz PMD620 Service Manual

25 26

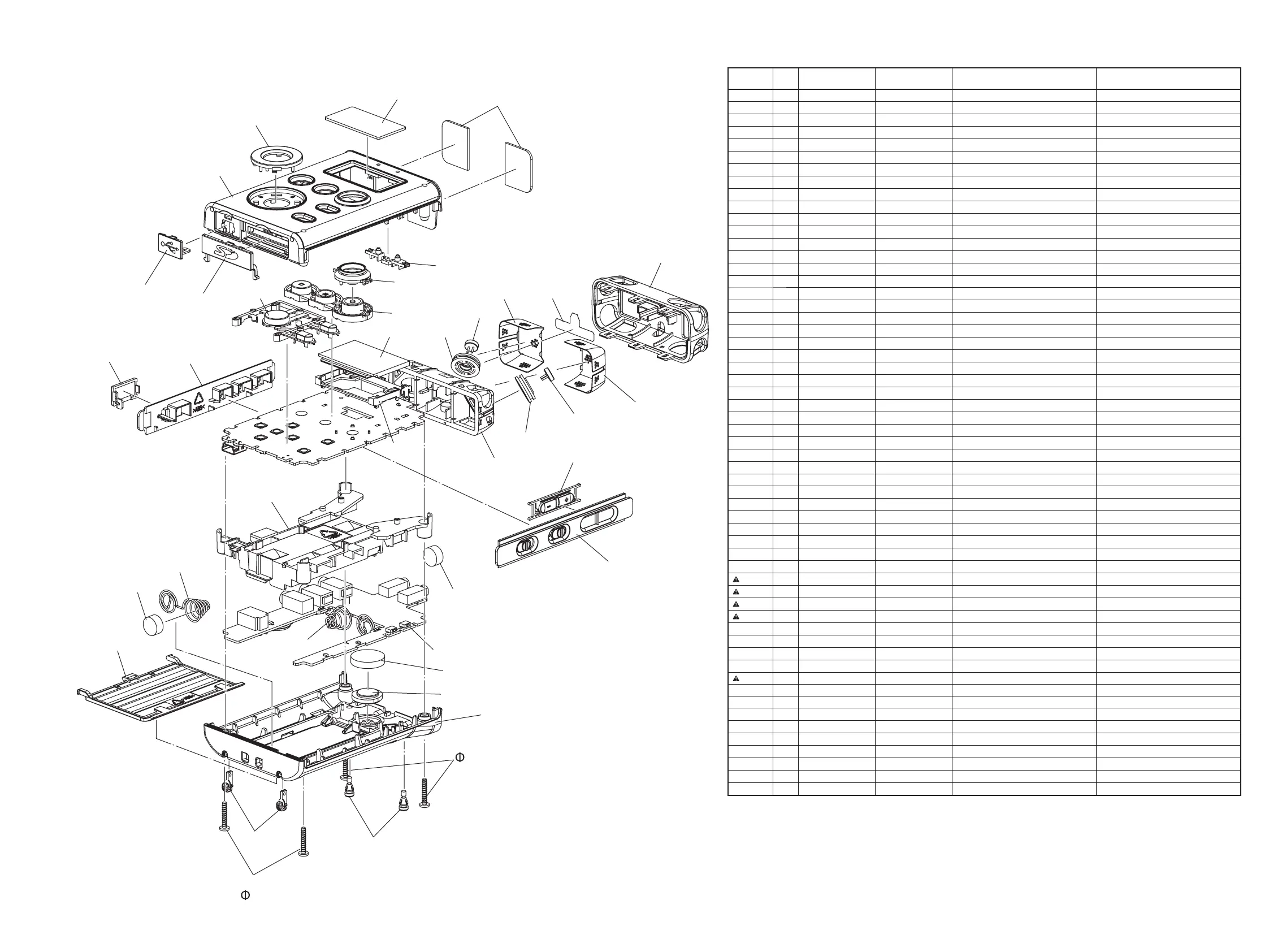

8. EXPLODED VIEW AND PARTS LIST
POS. NO. QTY
PART NO.
(FOR EUR)
PART NO.
(D&M)
PART NAME DESCRIPTION
001B 1 00M10CS064510 00M10CS064510 CASE ASSY TOP CASE ASSY
005B 1 00M10CS158010 00M10CS158010 WINDOW WINDOW
006B 1 00M10CS355020 00M10CS355020 LENS LED LENS
008B 1 00M10CS355010 00M10CS355010 LENS REC LENS
010B 2 00M10CS056010 00M10CS056010 BUFFER MIC BUFFER
012B 1 00M10CS270010 00M10CS270010 BUTTON TRACK JUMP BUTTON
014B 1 00M10CS270020 00M10CS270020 BUTTON REC BUTTON
016B 1 00M10CS270030 00M10CS270030 BUTTON ENTER BUTTON
018B 1 00M10CS257010 00M10CS257010 LID SD LID
020B 1 00M10CS257510 00M10CS257510 LID ASSY USB LID ASSY
026B 1 00M10CS271010 00M10CS271010 HOLDER OLED HOLDER
028B 1 00M10CS271020 00M10CS271020 HOLDER BATTERY HOLDER
030B 1 00M10CS123010 00M10CS123010 CONTACTOR RELAY CONTACTOR
032B 1 00M10CS249020 00M10CS249020 PANEL L SIDE PANEL
034B 1 00M10CS257500 00M10CS257500 LID ASSY DC JACK LID ASSY
038B 1 00M10CS249500 00M10CS249500 PANEL ASSY R SIDE PANEL ASSY
040B 1 00M10CS270040 00M10CS270040 BUTTON REC LEVEL BUTTON
044B 2 00M10CS271040 00M10CS271040 HOLDER MIC RUBBER HOLDER
048B 1 00M10CS271030 00M10CS271030 HOLDER MIC HOLDER
049B 1 00M10CS107010 00M10CS107010 SHEET MIC EARTH SHEET
050B 2 00M10CS202010 00M10CS202010 NET MIC NET
052B 1 00M10CS064020 00M10CS064020 CASE MIC CASE
053B 2 00M10CS107020 00M10CS107020 SHEET WIRE SHEET
001G 1 00M10CS064530 00M10CS064530 CASE ASSY BOTTOM CASE ASSY
005G 2 00M10CS057010 00M10CS057010 LEG RUBBER A LEG
006G 2 00M10CS057020 00M10CS057020 LEG RUBBER B LEG
007G 2 00M10CS056030 00M10CS056030 BUFFER CONTACTOR BUFFER
008G 2 00M10CS107020 00M10CS107020 SHEET WIRE SHEET
010G 1 00M10CS056020 00M10CS056020 BUFFER SPEAKER BUFFER
012G 1 00M10CS257040 00M10CS257040 LID BATTERY LID
014G 4 00M51250212U0 00M51250212U0 SCREW SCREW
015G 1 00M10CS056100 00M10CS056100 BUFFER BUFFER
016G 1 00M10CS123040 00M10CS123040 GASKET GASKET CONTACTOR
001T 1 00M10CS851250 00M10CS851250 DFU DFU FOR (U ,N)
001T 1 00M10CS851350 00M10CS851350 DFU DFU FOR (K)
002T 1 00M10CS851010 00M10CS851010 DFU DFU CD-ROM (U ,N)
001Z 1 00MAA90005160 00MAA90005160 AC ADAPTER AC ADAPTER (5V 1.5A)
002Z 1 00MZC01002010 00MZC01002010 MAINS CORD ! MAINS CORD (U)
002Z 1 00MZC01003010 00MZC01003010 MAINS CORD ! MAINS CORD (EU)
002Z 1 00MZC01008010 00MZC01008010 MAINS CORD ! MAINS CORD (K)
003Z 1 00MZC01804110 00MZC01804110 MAINS CORD ! MAINS CORD (UK)
007Z 1 00M10CS156010 00M10CS156010 STRAP STRAP
010Z 1 00M10CS831010 00M10CS831010 TRIPOD ADAPTER TRIPOD ADAPTER
P100 99MZZ10CS1000 MAIN PCB !MAIN PCB KIT (PMD620)
V001 1 00MHQ49901980 00MHQ49901980 DISPLAY OLED ASSY (PMD620)
N001 1 00MMS50090110 00MMS50090110 MICROPHONE MIC KUB4223
N002 1 00MMS50090110 00MMS50090110 MICROPHONE MIC KUB4223
N003 1 00MQK01302010 00MQK01302010 SPEAKER SPEAKER 388631
W001 1 00MYB00067540 00MYB00067540 CONNECTIVE CORD WIRE FOR MIC L
W002 1 00MYB00051800 00MYB00051800 CONNECTIVE CORD WIRE FOR MIC R
W003 1 00MYB00067520 00MYB00067520 CONNECTIVE CORD 8000-BARA WIRE AWG32 L=6.5
W004 1 00MYB00051790 00MYB00051790 CONNECTIVE CORD WIRE FOR MIC NET
005B
012B
001B
020B
018B
034B
010B
x2
032B
016B
014B
008B
006B
052B
049B
050B
N001
044BV001
026B
028B
030B
007G
012G
006G
x2
044B
N002
050B
038B
040B
048B
007B
000B
007G
010B
001G
N003
005G
x2
5125
2x12（U）x2
5125
2x12（U）x2
